External IRQ on PB15

[erastus]

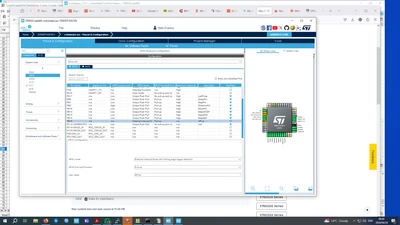

I am trying to catch a pulse on PB15. So I set the port PB15 to external irq with falling edge as per screen shot below

The code in MX_GPIO_Init() generated by MX is:

/*Configure GPIO pin : MPuls_Pin */

GPIO_InitStruct.Pin = MPuls_Pin;

GPIO_InitStruct.Mode = GPIO_MODE_IT_FALLING;

GPIO_InitStruct.Pull = GPIO_PULLUP;

HAL_GPIO_Init(MPuls_GPIO_Port, &GPIO_InitStruct);

and the code in the call back is a simple test

// External Interrupt ISR Handler CallBackFun

void HAL_GPIO_EXTI_Callback(uint16_t GPIO_Pin)

{

if(GPIO_Pin == MPuls_Pin) // INT Source is pin PB15{

// HAL_NVIC_DisableIRQ(EXTI15_10_IRQn);

// Serialprint((uint8_t *) "Hi\n");

if( IRQCheckI > 0) {

IRQCheckI = 0;

sprintf (TempBufCA, "%3d -> ", ++TempCI);

Serialprint(TempBufCA);

}

if ( MotorPosGI > 0) {

MotorPosGI=0;

Serialprint("\nMagnet at position\n");

}

// HAL_GPIO_TogglePin(GPIOA, GPIO_PIN_11); // Toggle LED

}

}

I put a break point on the line if(GPIO_Pin == MPuls_Pin) // INT Source is pin PB15{ but the loop never get accessed by the external event.

Before the upgrade all was working well.
Can any one please assist.











[MM..1]

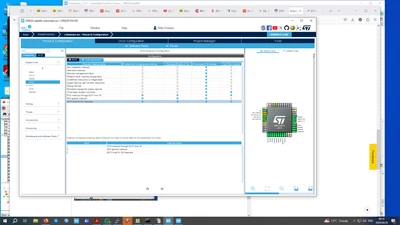

Primary check if EXTI in NVIC is checked.

[erastus]

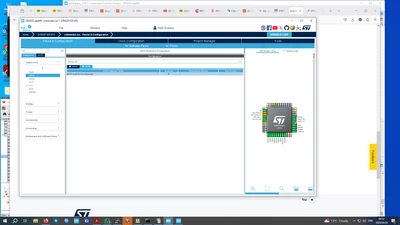

Yes it is unless I am missing something

If I set the pin to read the IO I do get the level changes but not the IRQ











[MM..1]

You write update what? I see sometimes on updates is it file empty = code for irq isnt generated.
