FILE created on SD Card shows incorrect creation time.

[aahsan]

File created on SD Card shows incorrect creation time.

shown in above fig in red all files which gets created on SD card carry same creation time.

Wondering if missing something in CubeMX settings

[Tesla DeLorean]

a) You'd need something on the system maintaining current time.

b) Function in DISKIO layer providing get_fattime() from the aforementioned.

[aahsan]

Thank you for quick response.

a) You'd need something on the system maintaining current time.

    We have RTC working that's how getting correct time for the timestamps, not sure if that's what you meant here.

b) Function in DISKIO layer providing get_fattime() from the aforementioned.

    I see following function, I can implement something like this but not sure, how and where that needs to be called so that file created will reflect correct system time.

DWORD get_fattime (void)
{
 time_t t;
 struct tm *stm;

 t = time(0);
 stm = localtime(&t);

 return (DWORD)(stm->tm_year - 80) << 25 |
 (DWORD)(stm->tm_mon + 1) << 21 |
 (DWORD)stm->tm_mday << 16 |
 (DWORD)stm->tm_hour << 11 |
 (DWORD)stm->tm_min << 5 |
 (DWORD)stm->tm_sec >> 1;
}



[Tesla DeLorean]

It's a call-out function from within the FatFs implementation, it is there for YOU to furnish current time upon request. You can recover it from the RTC, or your own SYSTEMTIME ticker, or whatever.

It uses this to fill in the fields of the file system structure you currently see as 1-Jan-2016 4:00 AM

[MKanc.1]

Seems like filesystem interface does not write correct time. Probably something inside middleware.

[aahsan]

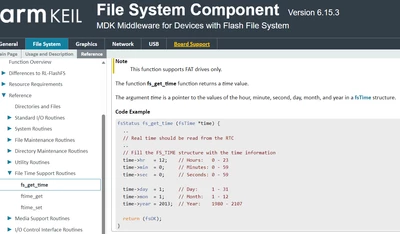

Seems like I need to do something like this for kiel5 to resolve the issue.



[aahsan]

With fs_get_time() implemented I can get creation time on the file correct.
