HAL_SPI_TransmitReceive_DMA not written correctly by CubeMX

[btd5]

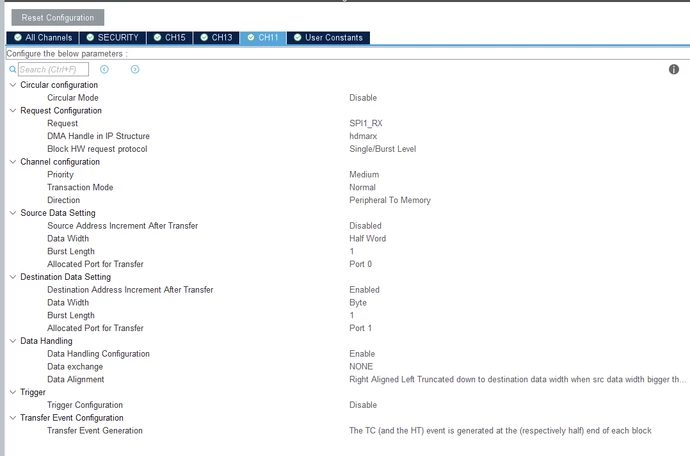

I am using SPI with DMA as shown in the screenshot. DMA is using Data Handling to truncate data from SPI's 16bit buffer into 8 bit values.

The following part of the code errors out. Commenting this code out makes my application work, but every time I change things in CubeMX it is rewriten. Why does this check even exist?

/* Packing mode management is enabled by the DMA settings */
if (((hspi->Init.DataSize > SPI_DATASIZE_16BIT) && (hspi->hdmarx->Init.DestDataWidth != DMA_DEST_DATAWIDTH_WORD) && \
(IS_SPI_FULL_INSTANCE(hspi->Instance))) || \
((hspi->Init.DataSize > SPI_DATASIZE_8BIT) && (hspi->hdmarx->Init.DestDataWidth == DMA_DEST_DATAWIDTH_BYTE)))
{
/* Restriction the DMA data received is not allowed in this mode */
errorcode = HAL_ERROR;
/* Unlock the process */
__HAL_UNLOCK(hspi);
return errorcode;
}



[Tesla DeLorean]

Why'd you read the peripheral as 16-bit wide, and try and push that out as 8-bit?

The peripheral should be able to decode the width of the access.

Is the SPI in 16-bit mode? If not just be consistent across the board.

[btd5]

I am using this SPI to talk to LIS3DHTR accelerometer. I transmit using

HAL_SPI_TransmitReceive_DMA(&hspi1, (uint8_t*) ACC_READ_ALL_DMA,

                                                      (uint8_t*) (acc_value+acc_value_cnt), 32*3);
