HardFault_Handler when enable LWIP and touchgfx

[MauFanGilaMedical]

Hello guys.



I've bought Riverdi 12.1” board that mounts STM32H757XIH6.



I developed graphic part and I use uSD, and USB Mass-Storage without any problems.



I use FreeRTOS and FatFS.



Now it's time to use Ethernet, so I bought PoE - Riverdi, enabled LWIP library following instructions on the video How to use Ethernet on Riverdi STM32 Embedded Displays || PoE Add-on.

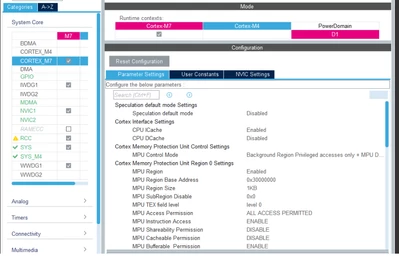

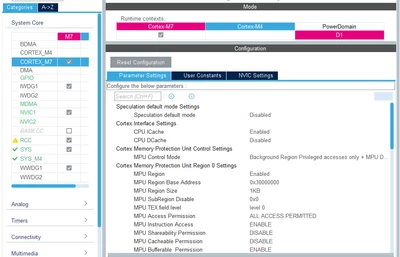

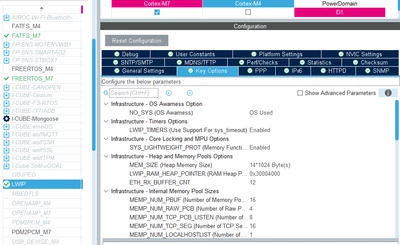

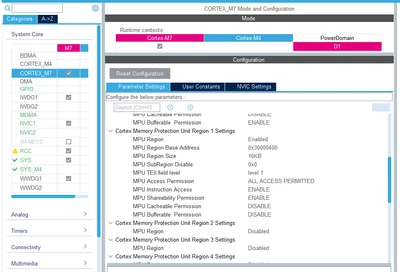

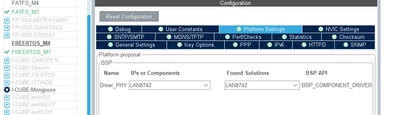

I set MX in this way:

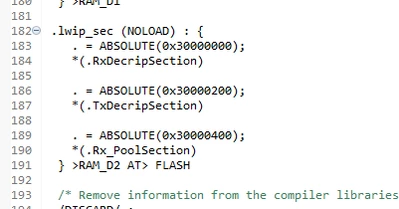

The linker script

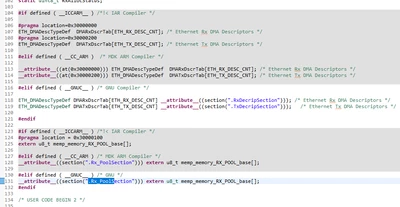

ethernetif.c



I compiled and I connect ethernet cable and it seems work poperly because if I ping I obtain right answer,



but! sometimes processor goes to HardFault

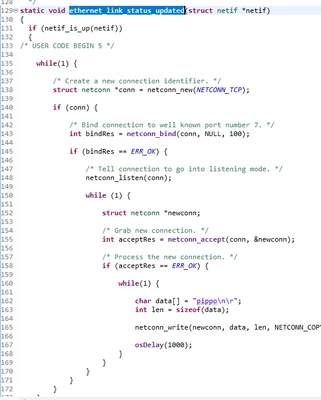

I've writed simple TCP server that accept connection on port 100 and send "Hello" every second.





When I try to connect with TERA TERM it goes immediately on HardFault.

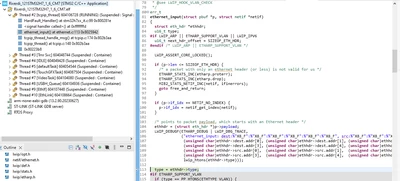

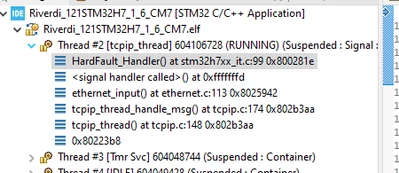

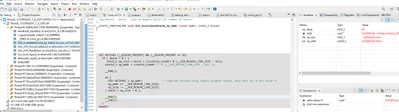

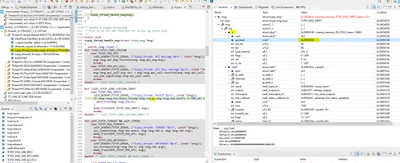

Here the code of ethernet_input







Can someone Help me ?



Thankyou in advance





























[TDK]

Cuold be insufficient stack size.

Look at the ethhdr pointer and ensure it's valid. If it's not, set up a hardware watchpoint to see where and when it's changed.

[MauFanGilaMedical]

what do you intend ?  set up a hardware watchpoint to see where and when it's changed

how can I see whene it's changed ?

[MauFanGilaMedical]

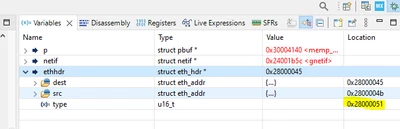

Yes @TDK I watch the address: is 0x28000045







and ethhdr->type is 0x24001b64

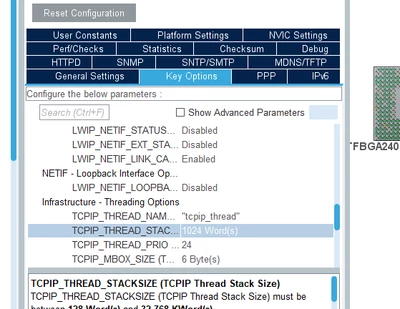

how to increase stack size for tcpip_thread ? maybe TCPIP_THREAD_STACKSIZE ?











[MauFanGilaMedical]

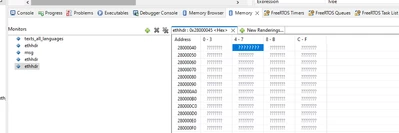

it seems msg->msg.inp.p point to invalid address: 0x28 ...





No RAM @ 0x28...









[MauFanGilaMedical]

Another question that I want to higlight, counld be that I have not enabled D-Cache ?





[TDK]

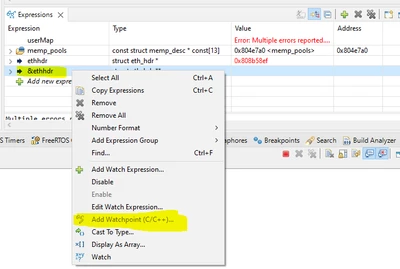

Here's how to set a watchpoint:

https://community.st.com/t5/stm32cubeide-mcus/how-to-add-the-watchpoint/m-p/310217/highlight/true#M16720

You want to watch for the pointer to change, so add &ethhdr as the expression.

[MauFanGilaMedical]

Watchpoint is disabled maybe ethhdr is a local variable





[GaetanGodart]

Hello @MauFanGilaMedical ,



Have you increase the stack size from STM32CubeMX as you show on one of your messages ?

Are you able to make the PoE (and ethernet in general) work without TouchGFX (or other implementations) ?

Can you check that the types on line 113 match, also check that ethhdr->type is properly initialized ?

Have you enabled your watchpoint ?

Not enabling D cache should not be an issue.

You could also ask for help on the Riverdi forum, maybe they have more informations.



Regards,

[MauFanGilaMedical]

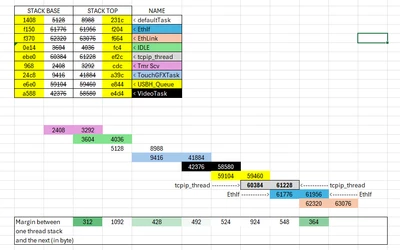

When I go to HardFault I shot the stack and see if one thread stack overlap the next but I don't see this situation







[MauFanGilaMedical]

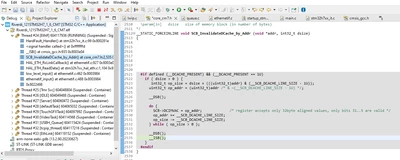

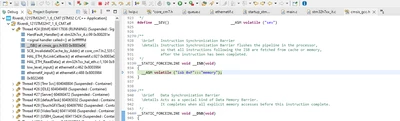

Today it goes to HardFault from __ISB or __DSB:

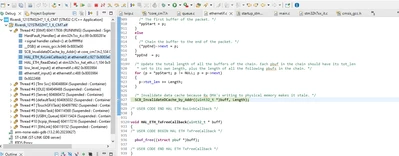

Stack for __DSB

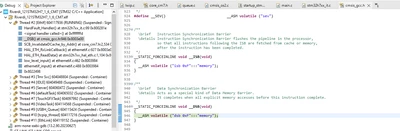

And stack for __ISB

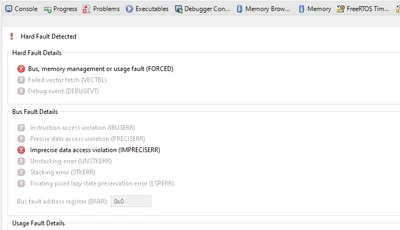

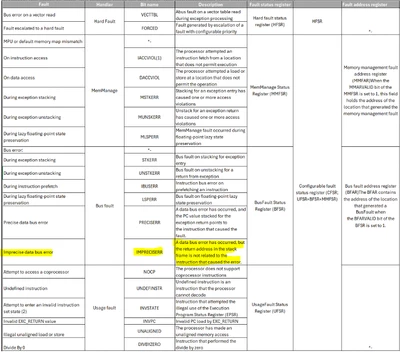

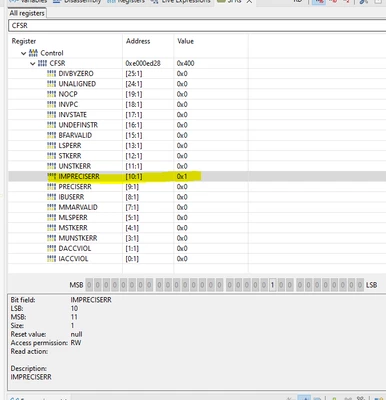

If could be helpful the CFRS is IMPRECISERR











[MauFanGilaMedical]

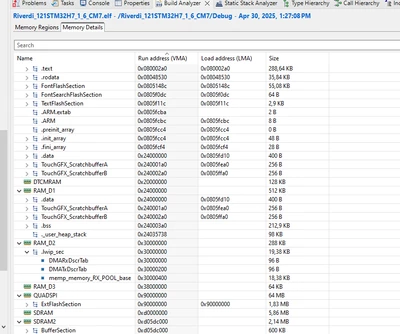

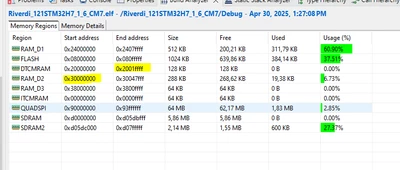

I observe that memp_memory_RX_POOL_base is at 0x30000400 and its size is 18,38KB, so memp_memory_RX_POOL_base spans in 0x30000400..30004BCC.

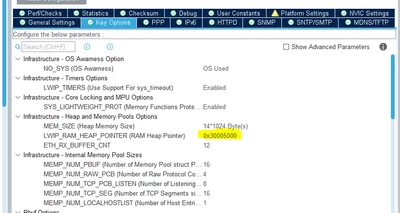

Starting from this I set LWIP_RAM_HEAP_POINTER to 0x30005000 because I suspect that memp_memory_RX_POOL_base overlaps LWIP_RAM_HEAP_POINTER.

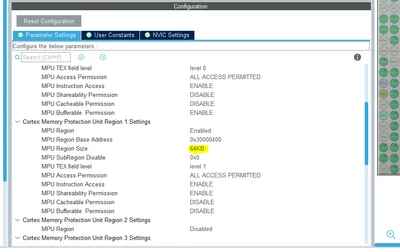

Then I go to MPU and increase MPU Region 1 Size from 16K to 64K because it started from 0x30000400 and its size is 0x30005000-0x30000400+14KB

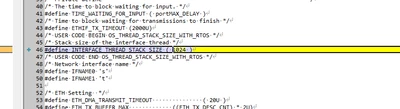

Subsequently I increase INTERFACE_THREAD_STACK_SIZE from 350 to 1KB ..



And I increase that stack of Server thread from 1KB to 10KB (even if I want to undersand how to reduce it to a minimum necessary size)



With this change the Server works without MCU crash... I observed one/two crashes and I'm still investigating.



I notice that when I send packets from PC to MCU sometimes MCU crashes
