How to configure FatFs with DMA on STM32L5 using CubeMx.

[DYann.1]

Hello,

I would like to have advice, I see this video about SD Card :

https://www.youtube.com/watch?v=I9KDN1o6924&t=359s

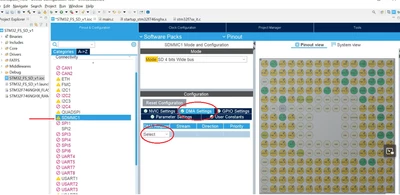

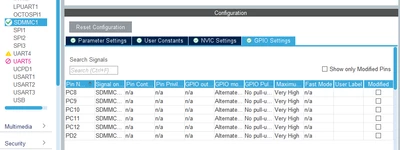

And in the video (5:30) I can see DMA tab via CubeMX

But with me I don't have this tab, do you know why ?

I have STM32L552E-EV Evaluation Board with STM32L552ZET6QU microcontroller, after me It's possible to have the DMA with SD Card.
I have this Version: 1.13.1 for STM32CubeIDE

Thank you for your helps.

Regards

[Andrew Neil]

Do you really need DMA?

Maybe simpler to start without DMA first?



---

@DYann.1 wrote:

I have this Version: 1.13.1 for STM32CubeIDE

---

That's quite old now - latest is 1.17.0:

https://community.st.com/t5/stm32cubeide-mcus/stm32cubeide-1-17-0-released/td-p/747656

[DYann.1]

---

@Andrew Neil wrote:

Maybe simpler to start without DMA first?

https://community.st.com/t5/stm32cubeide-mcus/stm32cubeide-1-17-0-released/td-p/747656

---

I know without DMA but our real application requires the use of DMA that's 100% certain. Thank you for the last version STM32CubeIDE, I'll going to install it and see if I have the DMA tab.

[Andrew Neil]

---

@DYann.1 wrote:

---

---

I know without DMA but our real application requires the use of DMA that's 100% certain. .

---

But, again, why not start with the simpler case?

Don't add unnecessary complications too early.

Get the simple case working first, then move on to the more advanced case.

As the old proverbs go,

Learn to walk before trying to run

Don't bite of more than you can chew

Don't dive straight in to the deep end

[DYann.1]

---

@unknown wrote:

Hello,

The reason you don't see the DMA tab in CubeMX for your STM32L552E-EV board might be due to the following factors

1. CubeMX or Firmware Version: The version of CubeMX or the STM32 firmware package you’re using might not fully support the DMA configuration for the SDMMC peripheral on your specific microcontroller. Make sure you have the latest STM32CubeIDE (1.13.1 in your case) and the STM32 firmware package installed for the L5 series.

M Tanveer

---

Hi,

Thank you for this information, yes I think the version of CubeMX is not recent. Even if I install the new version of STMCubeIDE, I won't have the DMA tab either since the video is quite old.

Thank you for your helps.

Regards

[mƎALLEm]

---

@DYann.1 wrote:

I have STM32L552E-EV Evaluation Board with STM32L552ZET6QU microcontroller, after me It's possible to have the DMA with SD Card.

---

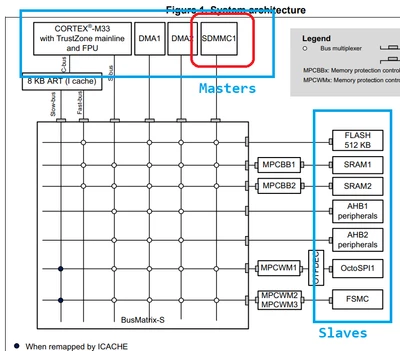

There is no DMA configuration for the SDMMC on L5 as it's already a master (a kind of DMA):

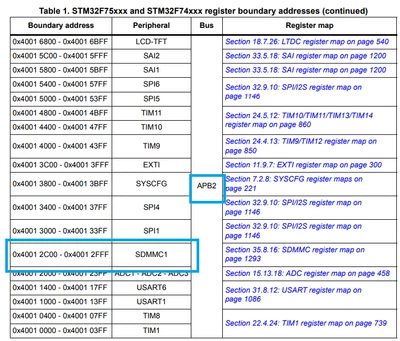

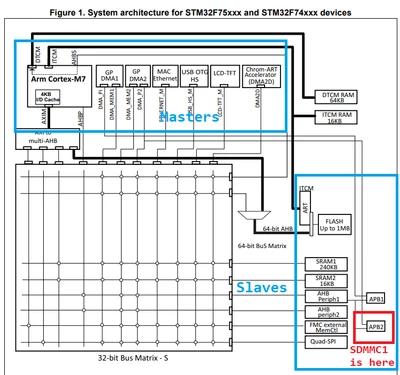

Unlike the F7 family, SDMMC1 is mounted as a slave on APB2 where you can configure a DMA (a master) for DMA transfer:

[DYann.1]

Thank you for this information, does this mean by default I am already in DMA with my STM32L5xx card ? Right ? For CubeMX I have this version



[mƎALLEm]

---

@DYann.1 wrote:

Thank you for this information, does this mean by default I am already in DMA with my STM32L5xx card ? Right ? For CubeMX I have this version



 As said SDMMC is already a DMA but in sd_diskio.c / SD_read() and SD_write() there are two types of implementations with and without DMA:

HAL_SD_ReadBlocks_DMA(): with DMA

HAL_SD_ReadBlocks(): without DMA

HAL_SD_WriteBlocks_DMA(): with DMA

HAL_SD_WriteBlocks(): without DMA

Look at the implementations of SD_read() and SD_write() in the examples:

STM32L552E-EV/Applications/FatFs/FatFs_uSD_Standalone

and

STM32L552E-EV/Applications/FatFs/FatFs_uSD_DMA

Their corresponding sd_diskio.c are respectively:

1- https://github.com/STMicroelectronics/STM32CubeL5/blob/master/Projects/STM32L552E-EV/Applications/FatFs/FatFs_uSD_Standalone/FATFS/Target/sd_diskio.c

2- https://github.com/STMicroelectronics/STM32CubeL5/blob/master/Projects/STM32L552E-EV/Applications/FatFs/FatFs_uSD_DMA/FATFS/Target/sd_diskio.c

PS: in any case you need to update your CubeMx version.
