How to install CubeMX so that STM32CubeIDE can recognize it?

  • March 25, 2025
  • 2 replies
  • 1364 views

Hello,

I would like to know how to install CubeMX and in which directory should I install it so that STM32CubeIDE can recognize it ?

Thank you

Best answer by DYann.1



@Andrew Neil wrote:

Why, exactly, do you want to know this?

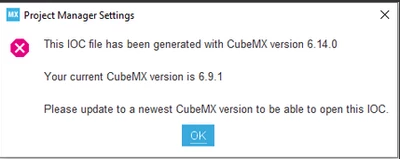

Someone gave me an .ioc file but I can't open it because I have an old version of CubeMX.



But, I find another way


to open this file by importing an existing '.ioc' file. Now I can read the information in this file.

2 replies

Andrew Neil
Andrew Neil
Super User
March 25, 2025

See the User Manual:


https://www.st.com/resource/en/user_manual/um1718-stm32cubemx-for-stm32-configuration-and-initialization-c-code-generation-stmicroelectronics.pdf

via: https://www.st.com/en/development-tools/stm32cubemx.html#documentation



With current versions, you don't need to separately install CubeMX - it's all built in to CubeIDE

https://www.st.com/en/development-tools/stm32cubeide.html



A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
DYann.1
DYann.1Author
Senior II
March 25, 2025
@Andrew Neil wrote:

With current versions, you don't need to separately install CubeMX - it's all built in to CubeIDE

https://www.st.com/en/development-tools/stm32cubeide.html

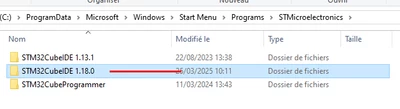

    In my first step I have already installed STM32CubeIDE







Does this mean I already have the correct version of CubeMX installed ? Right ?

Andrew Neil
Andrew Neil
Super User
March 25, 2025

Yes - it's all built-in

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
DYann.1
DYann.1Author
Senior II
March 25, 2025

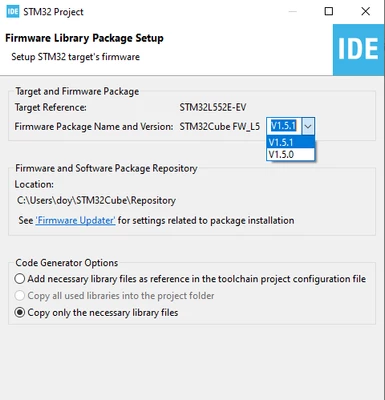

When I try to create a Projet with STM32CubeIDE 1.18.0, I can see the available versions of CubeMX and I don't have the latest version of CubeMX


Andrew Neil
Andrew Neil
Super User
March 25, 2025

That's not the CubeMX version - that's the Firmware Package version.

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
    DYann.1
    DYann.1Author
    Senior II
    March 25, 2025

    How to find the version CubeMX integrated in this version STM32CubeIDE 1.18.0 ?
