How to setup hfmpi2c1 using STM32F446

[Lding2025]

I have enable the hfmpi2c1 in STM32CubeMX tools, but I can find the

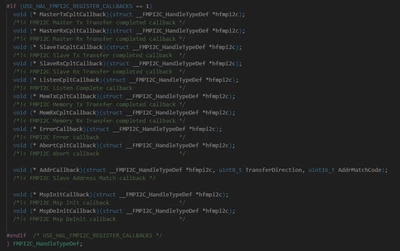

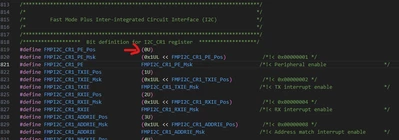

FMPI2C_HandleTypeDef is undefined in the source code.



Do we have a demo code to show how to setup and use hfmpi2c1.



It's very confuse that the F446 only have one Fast Plus Mode IIC interface.



[mƎALLEm]

Hello and welcome to the ST community,

I didn't really understood the issue.

I just generated a code with the latest CubeMx version 6.15.0 with I2C in Fast mode + and FMPI2C_HandleTypeDef is defined.

In the main, this is what I get:

/* Private variables ---------------------------------------------------------*/
FMPI2C_HandleTypeDef hfmpi2c1;

 If I compile the project I don't have any error.

This is my configuration:

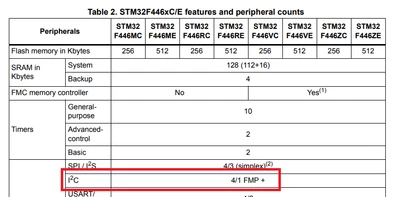

For your last question, I didn't really understand the meaning! Do you mean the number of instances available on that device? if yes, this information is available in the datasheet:

4xI2C instances are available on that device, only I2C1 features Fast mode/+.







[Lding2025]

do you have a demo code to show how to read a device id with hfmpi2c1.

[mƎALLEm]

---

@Lding2025 wrote:

do you have a demo code to show how to read a device id with hfmpi2c1.

---

You need to ask that question in STM32 MCUs Embedded software forum.
