Issue with Clock Configuration for FK723M1-ZGT6 using an H723ZGT6 in CubeMX 6.12.1

[Zaphodbe]

When I try setting up to use an external 10MHz reference clock on the HSE with a divisor of 1 and a multiplier of 25 it insist the frequency will be 255MHz but shouldn't it be 250MHz,  Similarly for every multiplier I have tried the frequency is 5MHz off.

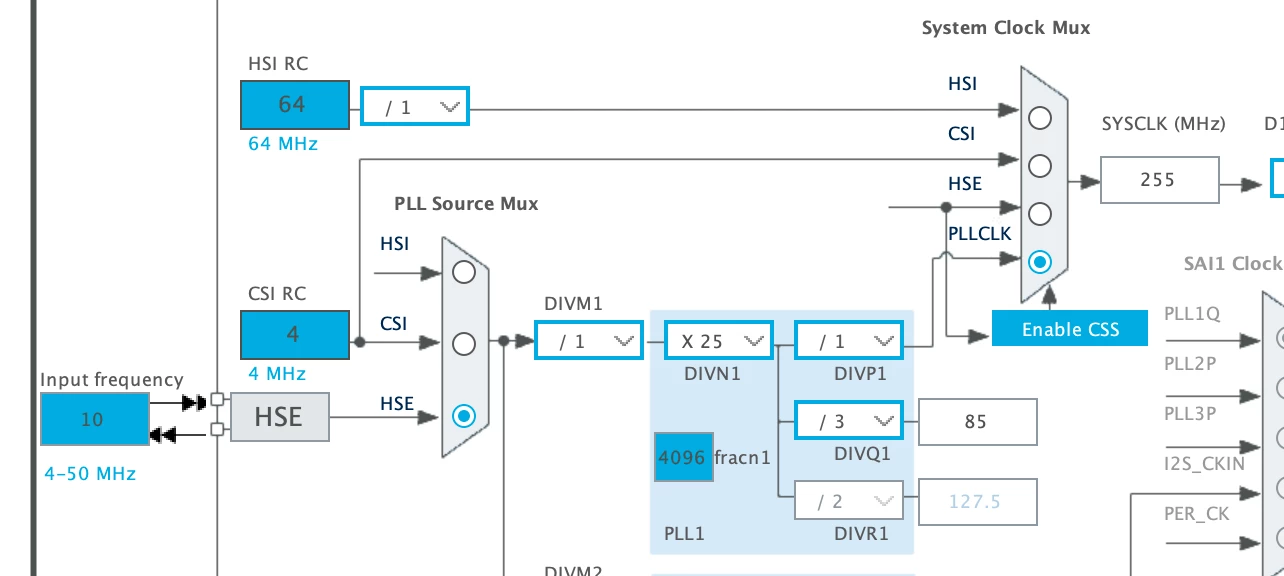

See attached screen shot from CubeMX.



Thanks

Chris.

[AScha.3]

>it insist the frequency will be 255MHz but shouldn't it be 250MHz

Maybe - its right ? Because you set the fractional divider ....set it to zero, then try again.



btw

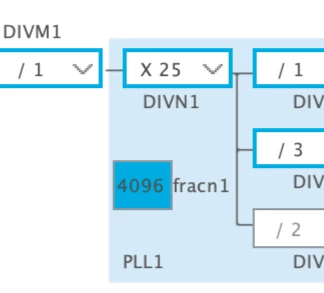

You set 4096 , so it gives F= Fref x (divn + 0,5 ); with Fref 10MHz, you get 5 MHz "added" .

[Zaphodbe]

That was it thanks.  Didn't realize that was a parameter I could change.  I started it with 0 and some point I guess it had changed it.

[Tesla DeLorean]

Doesn't it have a 25 MHz crystal?

https://community.st.com/ysqtg83639/attachments/ysqtg83639/mcu-boards-hardware-tools-forum/18174/1/FK723M1-ZGT6-Schematic.pdf

[Zaphodbe]

Changed it to external 10MHz reference.
