Misleading Warnings

[b3rtl]

Hi,

Recently, updated to 6.16.1 on Linux.

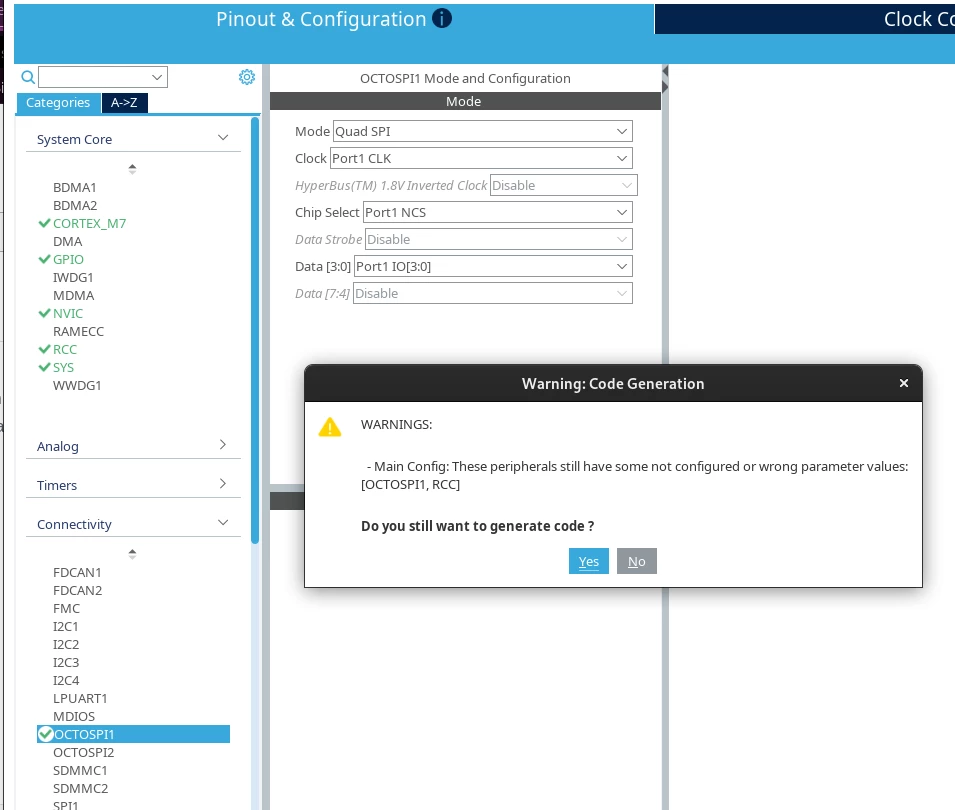

On a fresh project i get the "misconfiguration warning" when i hit "GENERATE CODE" (I use CMake Toolchain). See Screenshot: There you will see simple config for RCC. Got a "green check" symbol but i always get that Warning.

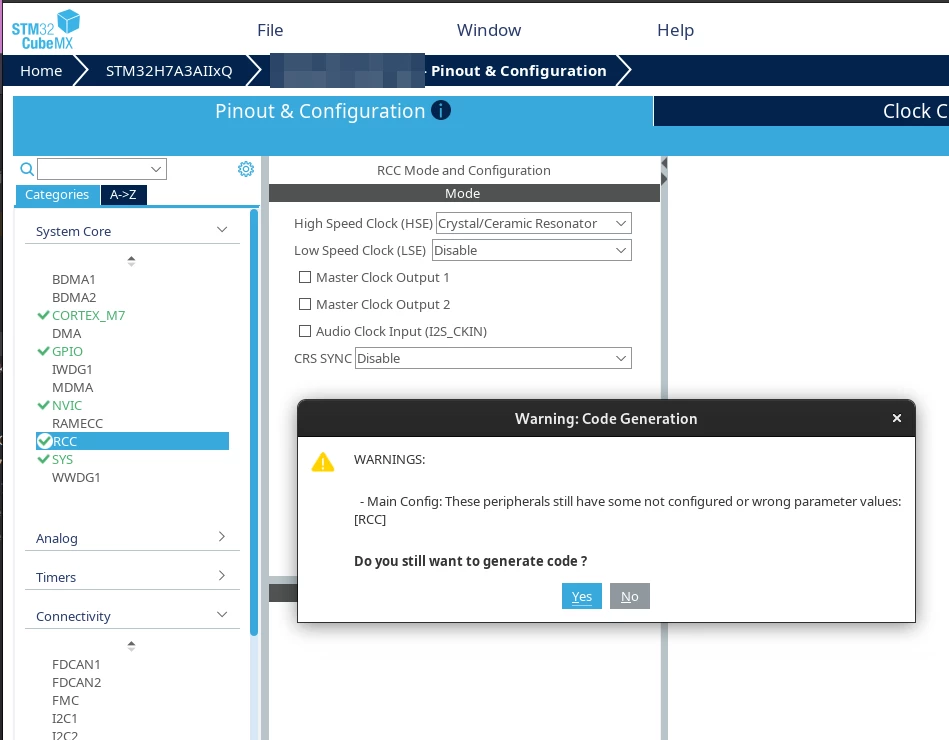

On the second Screenshot, I have changed OCTOSPI settings, and it will add itself to the Warning list. I can extend the warning list by just changing any settings. Maybe I really misconfigured something, but I don't see it.

I guess it is a bug - I can generate the code, but this Warning might mask real configuration issues in the future.

Thx

[Souhaib MAZHOUD]

Hello @b3rtl

Thank you for posting!

Could you add some details about your issue, The MCU used? version of OS (Fedora, ubuntu, etc)?

I will check this matter with dedicated team and get back to you ASAP.

KR, Souhaib

[b3rtl]

Hi,

I use Debian 12 - You can see the MCU in the Screenshot (H7A3AIIxQ).

New info: After changing some more settings, the issue resolved magically. But I can't say which one did it. I can only confirm it is not any clock configuration - only Pinout&Configuration. What I've changed else afterwards: Enabled FreeRtos, Enabled also OCTOSPI2, I2C1, Enabled one EXTI Pin, USART1, and set TIM7 at "SYS". That's it, it resolved but it might confuse or annoy other users, who start a fresh project.

Thx
