New CubeMX-created project does not build in CubeIDE v2.1.0

[Geoff104]

Split from STM32CubeIDE version 2.1.0 won't generate IOC project file as this is a new question.

Please keep to one question per thread.

---

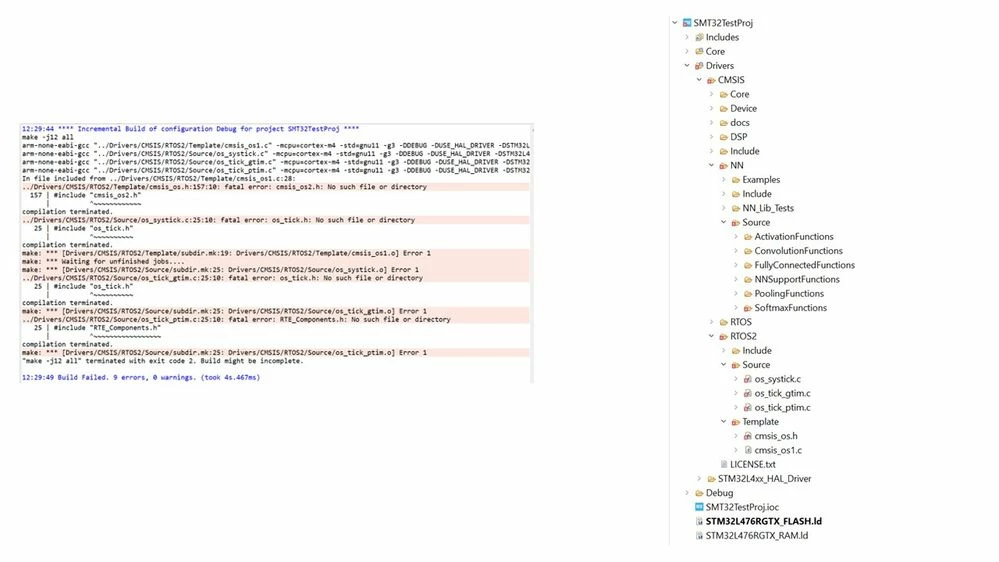

Thanks both Ghofrane GSOURI & Andrew Neil for pointers. Adopting the method shown in the presentation. I have selected a nucleo development board to create an STM32MX project. I have then created a STM32CubeIDE projecfrom the MX project. Having not written any code yet, I'm getting compilation errors but have no idea why? The errors are relating to files marked with a red x below:



[Andrew Neil]

---

@Geoff104 wrote:



Thanks both Ghofrane GSOURI & Andrew Neil for pointers. Adopting the method shown in the presentation. I have selected a nucleo development board to create an STM32MX project. I have then created a STM32CubeIDE projecfrom the MX project.

---

You're welcome.

Please mark the solution in that other thread.



Which version of CubeMX did you use?

[Geoff104]

CubeMX V6.17.0. I have also tried with CubeIDE V2.0.0 and V2.1.0

[Ghofrane GSOURI]

Hello @Geoff104

Could you please provide your IOC?

I will be waiting for your feedback.

THX

Ghofrane

[GChol.1]

Hi @Ghofrane GSOURI , Geoff104 here (Had to use work account as I seem to be locked out of my personal account) Please see attached *.ioc file

[Ghofrane GSOURI]

Hello @GChol.1

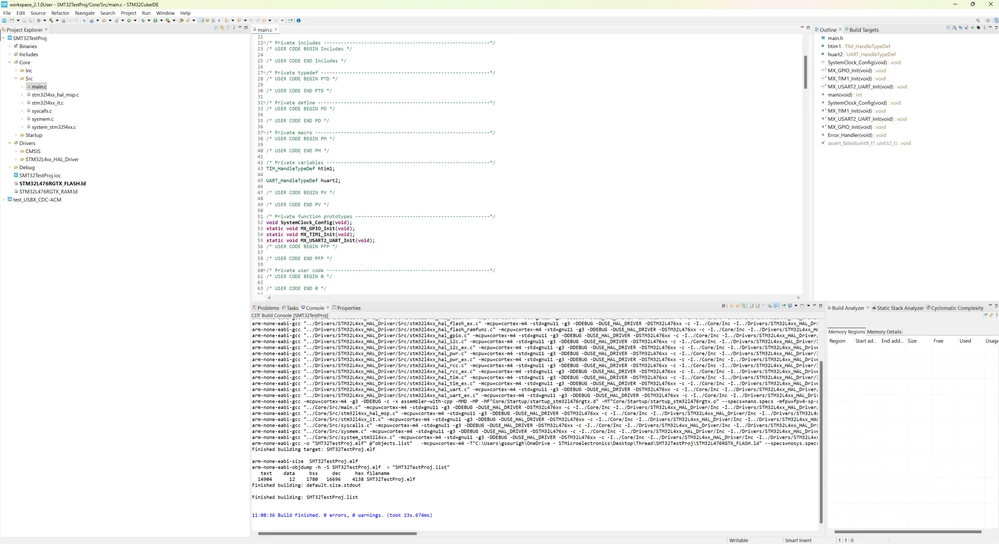

I have just run a test using your IOC file, and the project builds successfully, as shown in the screenshot below.



Please try the following on your side:

1- Move your IOC file to a new, empty folder.
2- Open this IOC file in STM32CubeMX.
3- Generate the code for your IDE from STM32CubeMX.
5- Open the generated project in the IDE and rebuild it.

THX

Ghofrane

[GChol.1]

@Ghofrane GSOURI Many thanks, suggestions worked!

[Ghofrane GSOURI]

Hello @GChol.1

Please mark the post that helped you as the best answer.

THX

Ghofrane
