PIN NO.F1 of H750XBH6 in its datasheet differs from stm32cubemx

[Tokit]

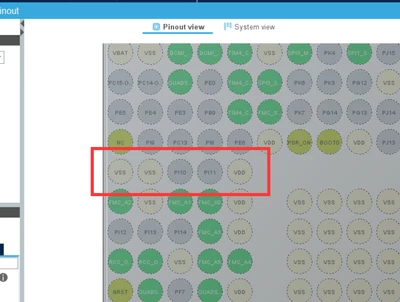

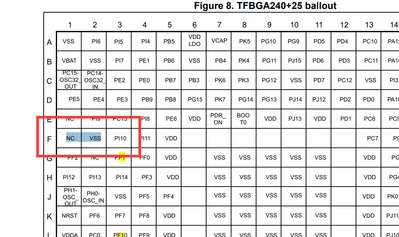

In datasheet it's NC while stm32cubemx says it's VSS

It doesn't matter I think



[STTwo-32]

Hello @Tokit

As you can see here:

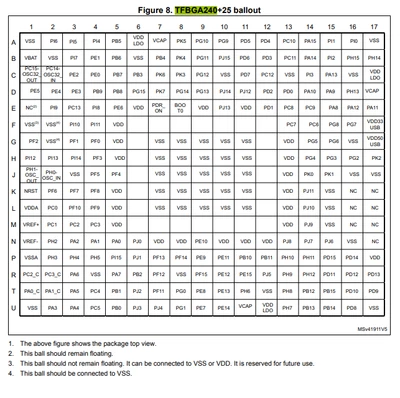

The PIN NO.F1 is compatible on datasheet (DS12556Rev7) and CubeMX configuration. I think you are using an old revision that has been updated.

Best Regards.

STTwo-32

[Tokit]

Thanks.Datasheet on semiee is outdated

[Peter BENSCH]

@Tokit some additional information: the data sheet from which you took the screenshot is the old rev 6. The screenshot from @STTwo-32 is from the newer and corrected rev 7.

Regards
/Peter
