PLLQ maximum frequency reported as 32MHz using STM32CubeMX v6.11.1

[euanbrown]

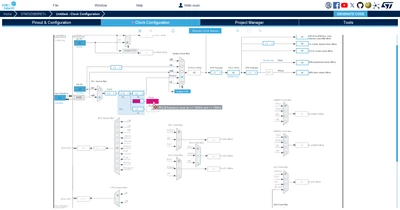

Somewhere between CubeMX 6.9 and 6.11 a bug has been introduced that reports the PLLQ can only be less than 33MHz.

It is not honouring the Voltage scale set in the RCC parameters.

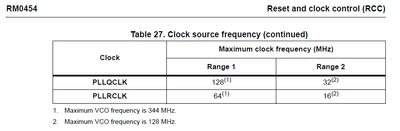

I have set the voltage scale to "Scale 1" but it still reports the PLLQ to be limited to 32MHz which is actually "Scale 2"







[STTwo-32]

Hello @euanbrown and welcome to the ST Community :smiling_face_with_smiling_eyes:.

Thank you for reporting this issue. I've been able to reproduce this issue and I've reported to the concerned team for correction (under internal ticket number 181096).

Best Regards.

STTwo-32
