Problem on file stm32c0xx_hal_conf_template.h for STM32C0XX

[MatteoBandini74]

In file stm32c0xx_hal_conf_template.h there are duplicated lines at 239 row.

#ifdef HAL_UART_MODULE_ENABLED
#include "stm32c0xx_hal_uart.h"
#endif /* HAL_UART_MODULE_ENABLED */



if you are using Cube MX you can't compile.





[STTwo-32]

Hello @MatteoBandini74

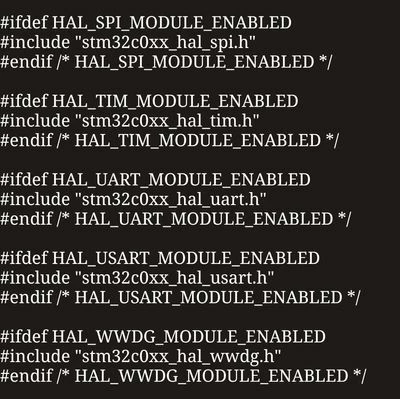

Can you add more details on the issue. On the stm32c0xx_hal_conf_template.h, i can't see any duplicated lines:

could you add your .ioc file with some description (screenshots,...) So we can reproduce this behavior.

Best Regards.

STTwo-32

[Andrew Neil]

---

@MatteoBandini74 wrote:

 there are duplicated lines at 239 row.

---

To be duplicated, it must occur twice - so where is the other occurrence?

[TDK]

Probably the author mistook UART and USART for the same thing.

https://github.com/STMicroelectronics/stm32c0xx_hal_driver/blob/21895aa5be9c6f5b6f2252d3c7fcbb47621c83b2/Inc/stm32c0xx_hal_conf_template.h#L239



[MatteoBandini74]

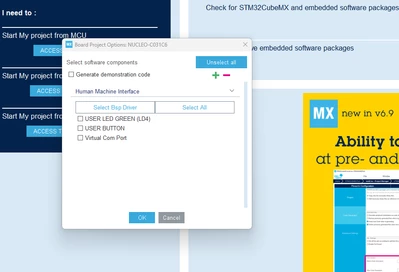

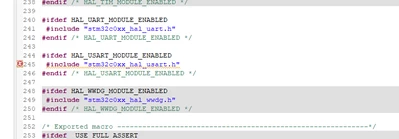

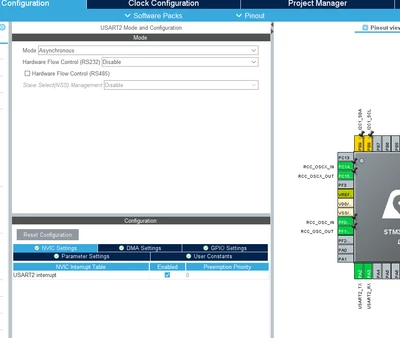

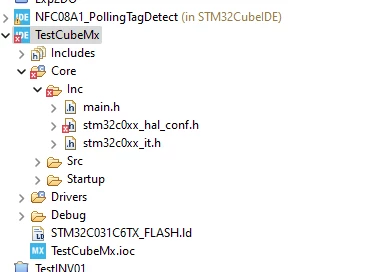

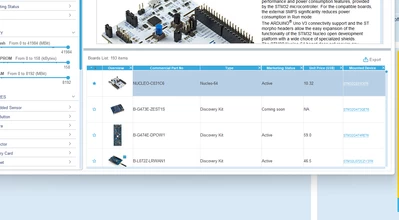

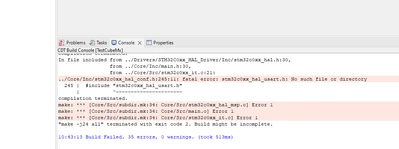

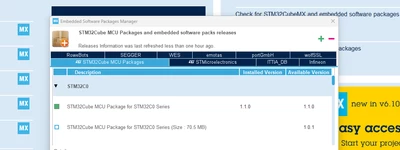

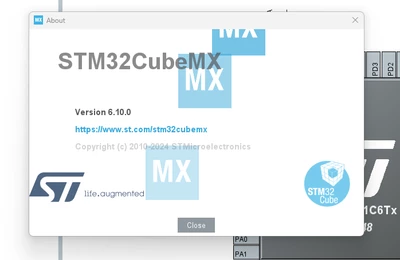

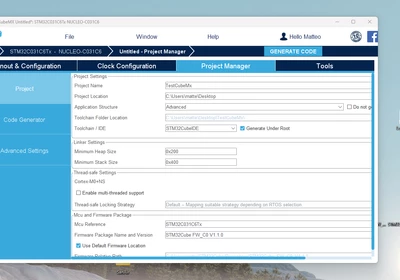

It's right, I've done a mistake. But yuo can't compile if you create a project with Cube mx.. Look:

[MatteoBandini74]

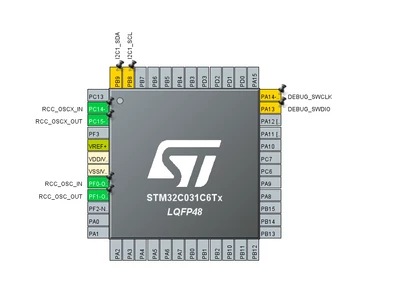

And if you reopen ioc file th uart disappear..

Look:



[STTwo-32]

Hello @MatteoBandini74

Thank you for reporting this. I confirm the issue and i will escalate it to the concerned team for correction.

An internal Ticket 174573 is created for the tracking of this bug.

(PS: Ticket 174573 is an internal tracking number, not accessible by customers and usable for internal tracking).

Thanks again for your question.

Best Regards.

STTwo-32

[MatteoBandini74]

Nice. Thank you!

I'm sorry for my English..

Ciao.
