STm32 USB HID not working

[User16782158065171037550]

HI,

STM32 USB HID mouse generated with CubeMX not working. Tried with all Discovery board also.

Help needed. Tried on STM32F103RB, STM32F429, STM32F746, none working.

Thanks,

[Mike_ST]

Hello,

Please, check that interrupt for USB IP is activated.

I think this was an issue before.

Otherwise, have you tried the examples that are included in the STM32 firmware packages ?

[User16782158065171037550]

I have tried the examples in the packages. Which interrupts do you mean by interrupt for USB IP?

Thanks

[Mike_ST]

>> I have tried the examples in the packages.

Do they work ?

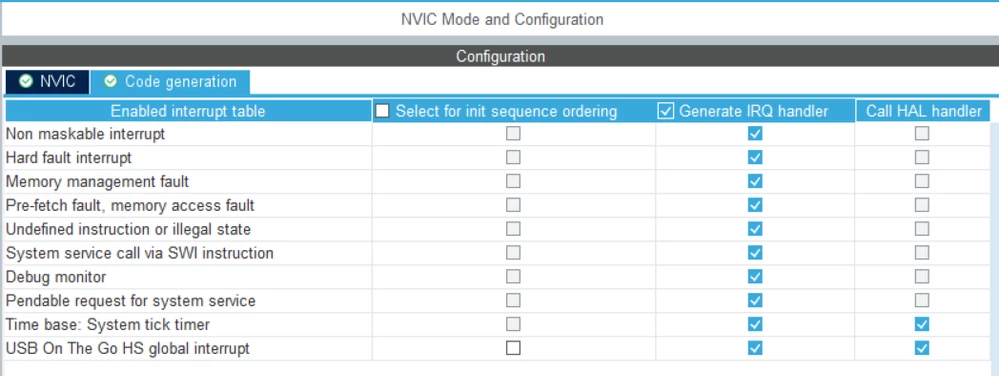

Talking about the following interrupt "USB On The GO HS" here:

[User16782158065171037550]

The examples do not work. I am using FS. Thanks for the reply.

[User16782158065171037550]

I am posting here in detail.

STM32CubeIDE v1.6.1

Firmware Package Name and Version: STM32Cube FW_F1 v1.8.4

OS: Ubuntu 18.04.5 LTS \n \l

HW: STM32F103RBT6

It is not even enumerating. The .hex file provided by the board manufacturer enumerates as USB HID, but when I create a project in STM32CubeIDE / STm32CubeMX, it does not even enumerate.

Also tired on STM32F429ZI Discovery board, STM32F746 Discovery board, none working.

Attached STM32CubeIDE project.

[Mike_ST]

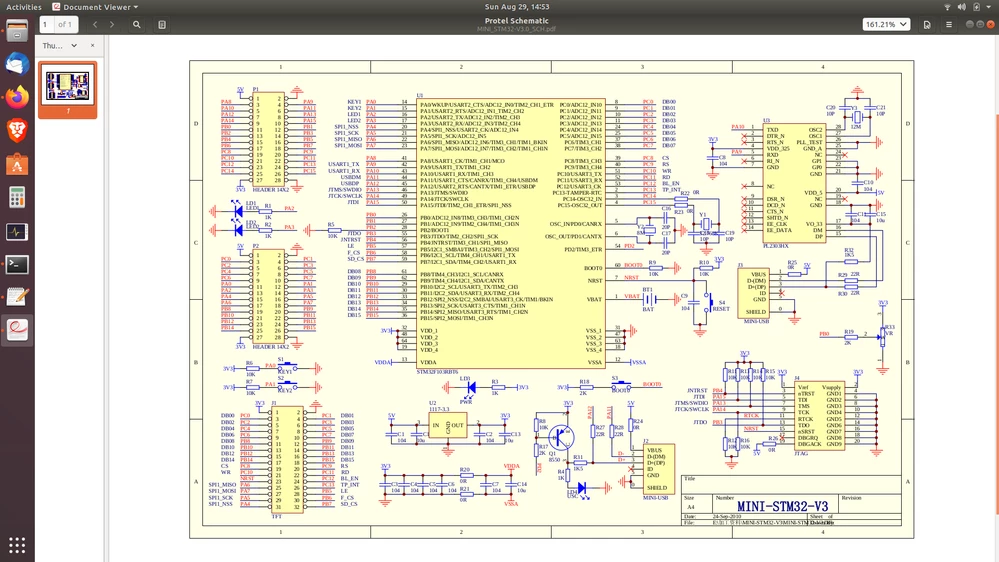

Do you manage PD2 in your software?

Where do you initialize PA11 and PA12 ?

Please look at usbd_conf.c from the STM32F103RB-Nucleo example

[User16782158065171037550]

Hi Mike_ST,

I got it working on STM32F103RB, the PD2 was not set correctly. I am not able to get it working on STM32F429 and STM32F746 discovery board, WIP.

Thanks all for your help and suggestions.

Regards,

Milind

[kaamil1984]

Hi, did you managed to make it work on STM32F746?
