STM32CubeMX 6.12.0 and FW 1.6.0 for U5 bug in MX_FLASH_Init generated code

[DMoim.1]

Hi,

after upgrading the whole suite to last release (as 09-jul-2024), code generation breaks code in function MX_FLASH_Init (main.c file).

If without condition is generated at line 19, no indentation on following block (which closes at line 53).

/**
 * @brief FLASH Initialization Function
 * @PAram None
 * @retval None
 */
static void MX_FLASH_Init(void)
{

 /* USER CODE BEGIN FLASH_Init 0 */

 /* USER CODE END FLASH_Init 0 */

 FLASH_OBProgramInitTypeDef pOBInit = {0};

 /* USER CODE BEGIN FLASH_Init 1 */

 /* USER CODE END FLASH_Init 1 */
 HAL_FLASHEx_OBGetConfig(&pOBInit);
 if ()
 {
 if (HAL_FLASH_Unlock() != HAL_OK)
 {
 Error_Handler();
 }

 /* Option Bytes settings */

 if (HAL_FLASH_OB_Unlock() != HAL_OK)
 {
 Error_Handler();
 }
 pOBInit.OptionType = OPTIONBYTE_USER|OPTIONBYTE_BOOTADDR;
 pOBInit.USERType = OB_USER_BOR_LEV;
 pOBInit.USERConfig = OB_BOR_LEVEL_4;
 pOBInit.BootAddrConfig = OB_BOOTADDR_NS0;
 pOBInit.BootAddr = 0x08000000;
 if (HAL_FLASHEx_OBProgram(&pOBInit) != HAL_OK)
 {
 Error_Handler();
 }
 if (HAL_FLASH_OB_Lock() != HAL_OK)
 {
 Error_Handler();
 }
 if (HAL_FLASH_Lock() != HAL_OK)
 {
 Error_Handler();
 }

 /* Launch Option Bytes Loading */
 /*HAL_FLASH_OB_Launch(); */

 }
 /* USER CODE BEGIN FLASH_Init 2 */

 /* USER CODE END FLASH_Init 2 */

}

Attached the IOC file.

Best regards,

 Diego



[STTwo-32]

Hello @DMoim.1

I've been able Reproduce this behavior and I've reported to the concerned team for correction ASAP (under internal ticket number 186268). Thank you for reporting the issue.

Best Regards.

STTwo-32

[Ghofrane GSOURI]

Hello @DMoim.1

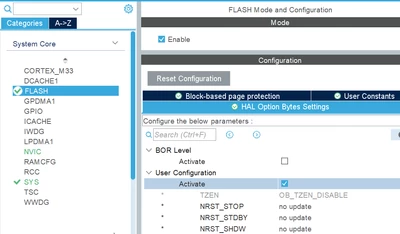

To temporarily fix this issue , simply activate only the user Configuration (as mentioned below).

It will have the same result of an empty project.

THX

Ghofrane

[DMoim.1]

Thanks!

[STTwo-32]

Hello @DMoim.1

This issue has been fixed on the STM32CubeMX V6.12.1 available for download here.

Best Regards.

STTwo-32
