STM32CubeMX 6.8.1 and STM32CubeIDE 1.12.1 released

[Ghofrane GSOURI]

 STM32CubeIDE/CLT 1.12.1  was released on st.com as well as an in-tool update patch.

Aligned with STM32CubeMX v6.8.1 that is available for download .

Caution: The in-tool update does not allow updating drivers and ST-LINK server tool. Full installer is required for this.

Main issues fixed in this patch:

This patch release fixes the issues related to the following cases:

STM32CubeIDE

• Incorrect permission of lib jspawnhelper in jre packaged in STM3CubeIDE.
• STM32CubeIDE does not launch with Linux Fedora

STM32CubeCLT

•  Variable path is removed when CubeCLT is installed.

STM32CubeMX

• CubeMX project Cube IDE complication error on ETH
• Update to CubeMX 6.8 adds non-working VOSRDY flag check to SystemClock_Config() on STM32F7 using LL drivers.
• [X-CUBE-FREERTOS][v1.0.1] Can't select previous version with secure context
• [STM32CubeMX][MDMA] MDMA GUI crash causing issue with tool

Where do I obtain CubeIDE ,CLT 1.12.1 and CubeMX 6.8.1 ?

• For IDE 1.12.1 : https://www.st.com/stm32cubeide
• For CLT 1.12.1 : https://www.st.com/stm32cubeclt
• Or update your current installation of STM32CubeIDE using: Help > Check for updates

1. updating STM32CubeIDE, the post-update restart fails. STM32CubeIDE must be restarted manually

• For MX 6.8.1: STM32CubeMX - STM32Cube initialization code generator - STMicroelectronics

Related threads

Update to CubeMX 6.8 adds non-working VOSRDY flag check to SystemClock_Config() on STM32F7 using LL drivers

Click on cubeIDE 1.12 MDMA section sometime causes MX tab an undefined behaviour

[chriscole]

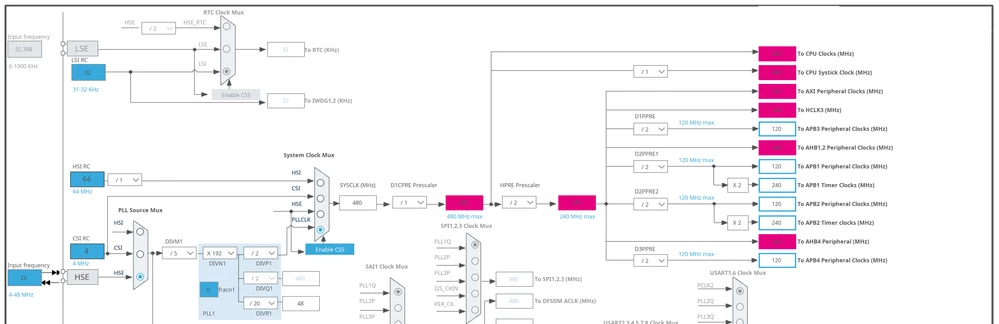

I'm seeing incorrect behavior in the Clock Configuration screen. It is flagging valid values as being out of range (STM32H743XIH6). Is anyone else seeing this? If I save and re-start CubeMX, I still see the same problem.

[Foued_KH]

Hello @chriscole​ ,

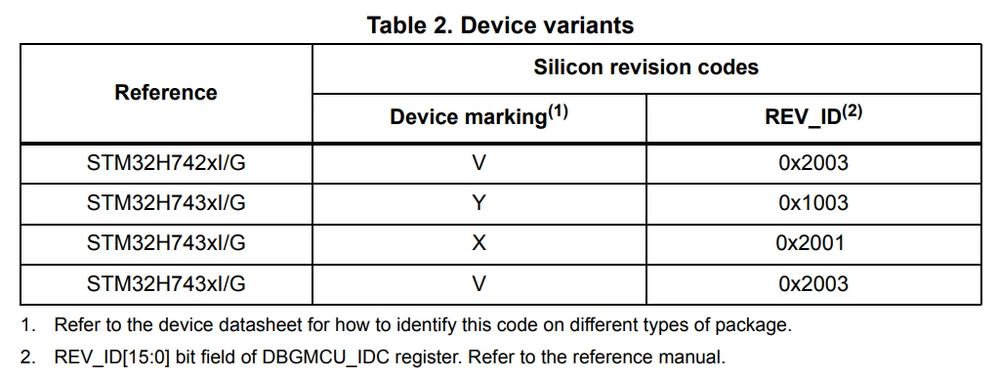

For the STM32H743 , we have 3 revision :



Use silicon revision V devices to reach a maximum frequency of 480 MHz.

Foued

[chriscole]

Attached is the ioc file that exhibits the issue.

[chriscole]

OK I found the reason -- I had silicon rev Y selected (has max core clock speed of 400 MHz) instead of V (supports max core clock speed of 480 MHz). It was non-obvious to me what the problem was, perhaps the reason can be displayed when you hover the mouse over the red boxes.

[Dana Myers]

I'm seeing a problem that may be related to V1.12.1: when debugging on an STM32WLE5 using an STlink/V2, I often see the debugging session suddenly end when hitting a breakpoint. Restarting STM32CubeIDE makes the problem go away for some time, but it eventually happens again.

​

I don't think there's anything special about the breakpoint (it's in an ISR callback, but that shouldn't matter).

What logs might I collect next time it happens?

[MKori.1]

Does this fix the issue with the removed Middleware folder?https://community.st.com/s/question/0D53W00002ChskuSAB/update-to-stm32cubeide-1120-stm32cubemx-680-removes-middleware-folder-and-breaks-stl-build?t=1684239608514&searchQuery
