STM32CubeMX: "connectivity MWs not enabled"

  • November 26, 2025
  • 2 replies
  • 373 views


Version: STM32CubeMX 6.16.0
MCU: STM32WB15CCU6

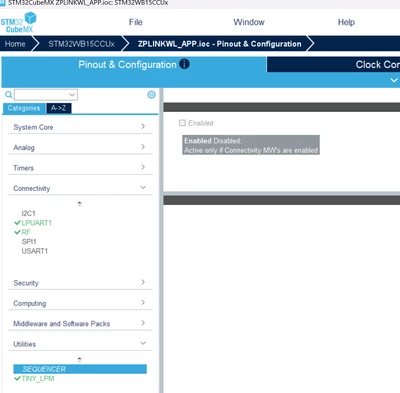

Untilities Sequencer can not enabled, which says connectivity WM's not enabled.

But no "WM's" in connectivity page.

How to enable sequencer?



2 replies

S
Souhaib MAZHOUD
Technical Moderator
November 26, 2025

Hello @Jason927

The "Active only if Connectivity MW's are enabled " means that this peripheral will only be active if one of the connectivity middlewares, such as BLE, THREAD, or ZIGBEE, is enabled under STM32_WPAN.

BR, Souhaib

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    J
    Jason927Author
    Associate III
    November 26, 2025

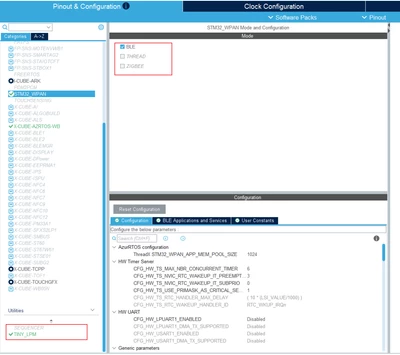

    I'm already enabled BLE function, sequencer still in gray.
    And without these seq files, STM32CubeIDE build failed.

    S
    Souhaib MAZHOUD
    Technical Moderator
    November 26, 2025

    Hello @Jason927

    Could you please provide your IOC so that we can further investigate the issue?



    To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    Andrew Neil
    Andrew Neil
    Super User
    November 26, 2025
    @Jason927 wrote:

    says connectivity WM's (sic) not enabled.

    It actually says MWs - presumably meaning Middle Wares



    @Jason927 wrote:

    But no "WM's"(sic) in connectivity page.

    MWs - Middlewares - would be in the Middlewares page ...
