STM32CubeMX issue with STM32H7S3I8 DMA and TIM15_CH2

[rbtmkr42]

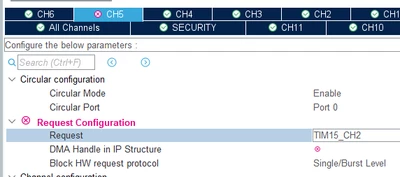

I have been working on an application with multiple DMA channels and timers.  For some reason, STM32CubeMX doesn't have the proper drop-down options for TIM15_CH2 in the DMA channel configuration. All the other timers and channels appear to configure properly:

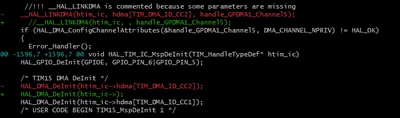

Here is the generated code.  My fix/workaround is shown in RED, while the code generated by STM32CubeMX is in GREEN:

Luckily, we do have the work-around, but the problem has become relatively annoying.  Thank you in advance.





[STTwo-32]

Hello @rbtmkr42 @and welcome to the ST Community.

Could you please add your .ioc file (based on the STM32CubeMX V6.14.1) so we can reproduce this on our side.

Best Regards.

STTwo-32

[rbtmkr42]

Thank you, @STTwo-32 .  Please find an example IOC file that has the issue.

[STTwo-32]

Hello @rbtmkr42

Thank you so much for your collaboration. I've escalated this behavior to the concerned team for correction on the future (under internal ticket number 209178).



PS: this has been solved on the version 6.15.0 of the STM32CubeMX.

Best Regards.

STTwo-32
