STM32CubeMx KiCad export not working

I am using STM32CUBEMX 6.6.1. When trying to export a Kicad model, the model turns out empty without any Pins.

Technical Moderator

Welcome, @Christian Pommer, to the community!

How did you export a model from a project created using STM32CubeMX to import it into KiCAD?

Regards

/Peter

Associate II

Hello Peter,

I used the TOOL -> CAD Tab.

Choosing Kicad as CAD Product. Export Pins including labels. Then download CAD Model.

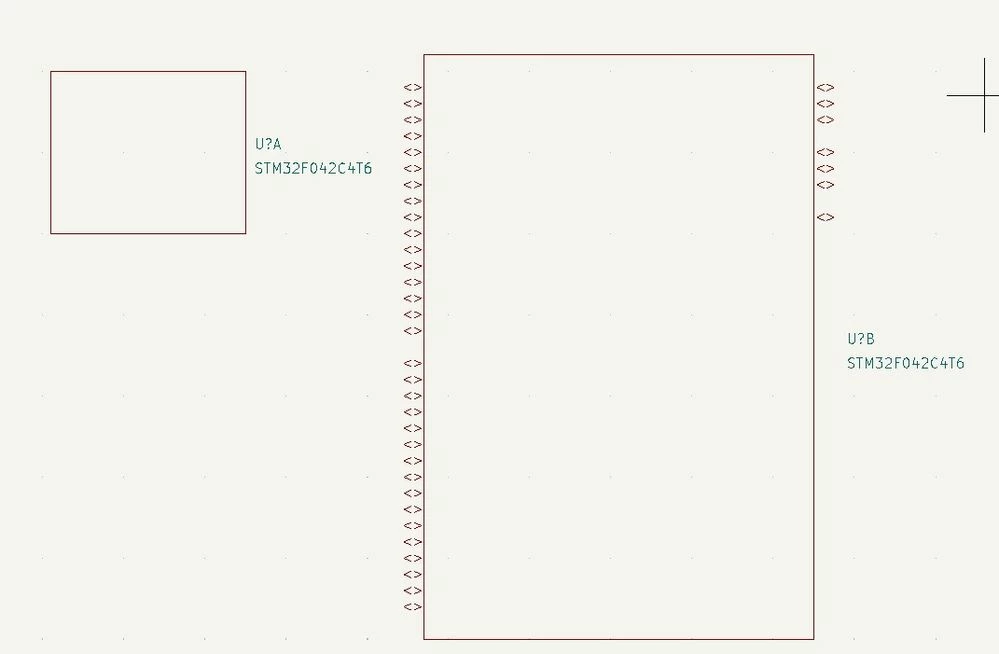

The model is generated but includes no connectable pins as shown in the following graphic.

I also checked the generated files. It only contains the information for the shape.

Best regards,

Christian Pommer

Technical Moderator

You would have to explain in more detail how you exported this, CAD Tab is completely unknown to me at least.

Associate II

The CAD Subtab was added with STM32CUBEMX 6.6 and can be found right below the PCC power tools in the tools tab.

Steps to reproduce:

Select any MCU
Configure Pins in any way shape or form
Select the Tools Tab next to the Project manager Tab.
Select The CAD Sub-Tab right below the PCC subtab.
Select KiCad from the DropDown Menu
Klick the Checkbox below the Drop Down menu. Kicad should now be displayed in the table in the top center.
Agree to Terms and Conditions
Press the CAD Download Button
Save file wherever necessary

I am sorry for not providing the necessary steps in the first place.
