STM32F411E-DISCO - default CubeMX clock settings are wrong

[ab.31]

The default clock settings in CubeMX are:

High Speed Clock (HSE): BYPASS clock source

Low Speed Clock (LSE): Crystal/Ceramic oscillator

This causes the MCU to go into Error_Handler() after going into SystemClock_Config()

How to fix:

Change High Speed Clock (HSE) to Crystal/Ceramic oscillator

Low Speed Clock I think should be disabled.

[Ghofrane GSOURI]

Hello @Community member​

First let me thank you for posting.

I tried to reproduce the issue mentioned above but everything is working just fine .

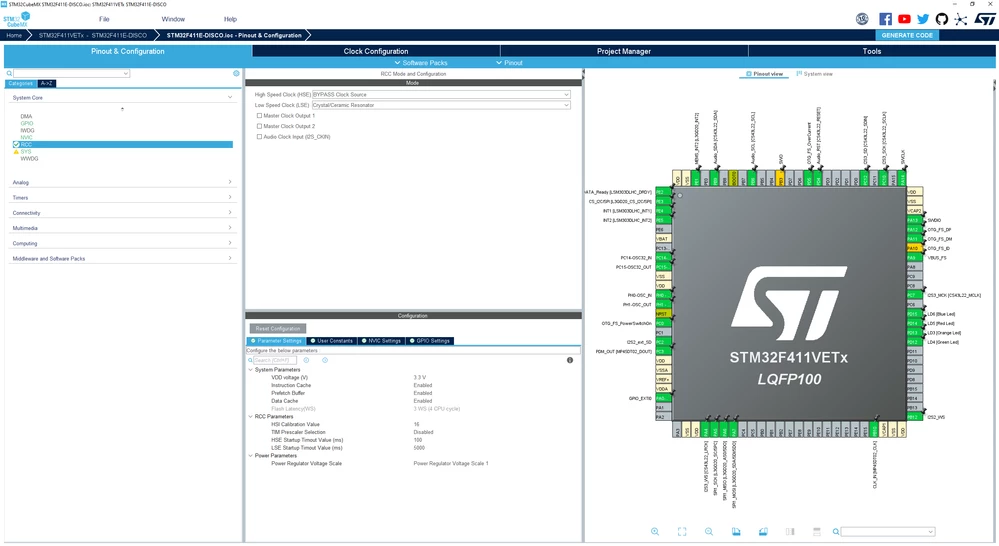

Please check the screenshot :

Using CubeMX 6.8.1

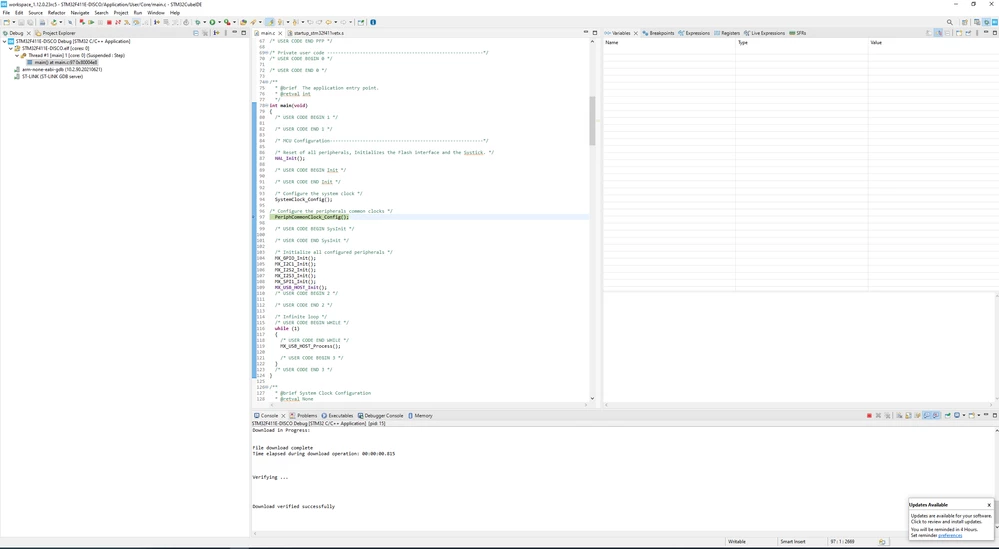

After generating the code and debugging it , there is no Error_Handler()



I will be waiting for your feedback .

Thx

Ghofrane

[Tesla DeLorean]

Most of the DISCO / NUCLEO are BYPASS for HSE because the clock source is being feed via an 8 MHz feed from the ST-LINK/V2-1 or V3 (8.33 MHz) MCO pins.

Very free have the HSE *crystal* populated, and only those which do need OSC_OUT driven.

[Gaston_78]

You are fully right ab.31 !.

STM CUBEMX 6.11 + Board STM32F411E-DISCO  gives WRONG clock Setting by default.

and CORRECT SETTING is:



High Speed Clock (HSE)  must be Crystal/Ceramic oscillator

Low Speed Clock  disabled.



[Mateusz3]

Thanks, you helped me a lot. Only this configuration works. Remember that you have to disconnect and reconnect the board for it to work.
