STM32F429 TouchGFX project blocks CAN1 configuration - how to enable CAN functionality?

[Mike11]

I'm working on a project that needs both TouchGFX GUI and CAN communication. After configuring my STM32F429 with TouchGFX, I'm unable to enable CAN1 in STM32CubeMX.

From what  I understand, CAN2 is a slave/dependent peripheral that requires CAN1 to be active, so I need CAN1 functioning first. If I create a can task with CAN2 it does not work (Loopback mode), and if I enable CAN1 the display will stop working.

Is there a recommended pin configuration that allows both TouchGFX and CAN to coexist?

Has anyone successfully implemented both TouchGFX and CAN on the F429?

Thanks!

[mƎALLEm]

Hello @Mike11 and welcome to the community,

You need first to ensure that there is no overlap in the GPIOs usage with LCD and touchscreen functionality with CAN IOs. This is the first step you need to check.

If there is an overlap you need to use other IOs for CAN.

[Mike11]

Hello @mƎALLEm  thanks for the answer.

The issue for is that all the pins for CAN1 are used by LTDC and FMC

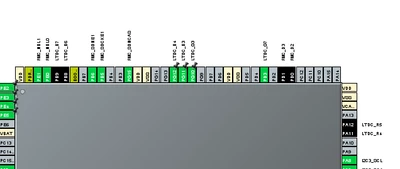

From what I see the possible pins for CAN1 are PB8  PD0 and PA11 for CAN1_RD and PB9 PD1 and PA12 for CAN1_TD.  PB8 PB9, PA11 PA12 are used by LTDC, and PD0 and PD1 are used by FMC ( SDRAM1 Data).

[mƎALLEm]

You didn't tell what  board are you using?

You didn't share your ioc file

Meanwhile, if all the alternate functions available for CANx are used by the LTDC and FMC, unfortunately for you, it will not possible to use both TouchGFX and CAN at the same time.
