[STM32H573IT] I can't FATFS in CubeMX.

[kadekade]

Hi Everyone,

I need your help.

I use STM32H573VIT but I can't FATFS in CUBEMX.

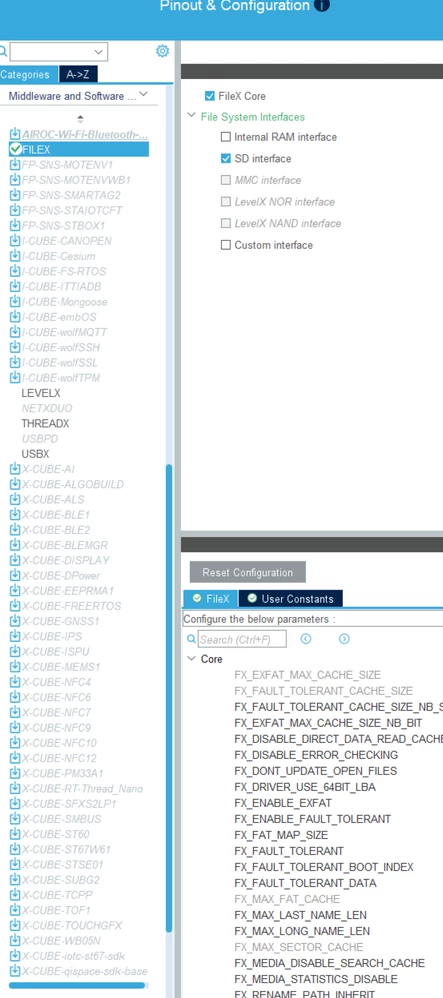

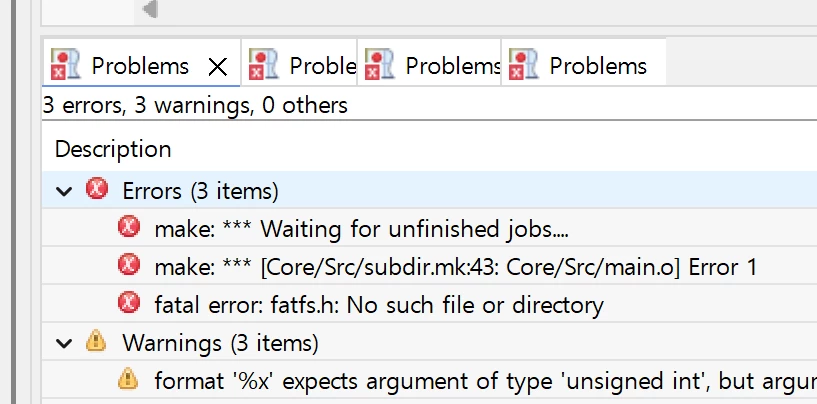

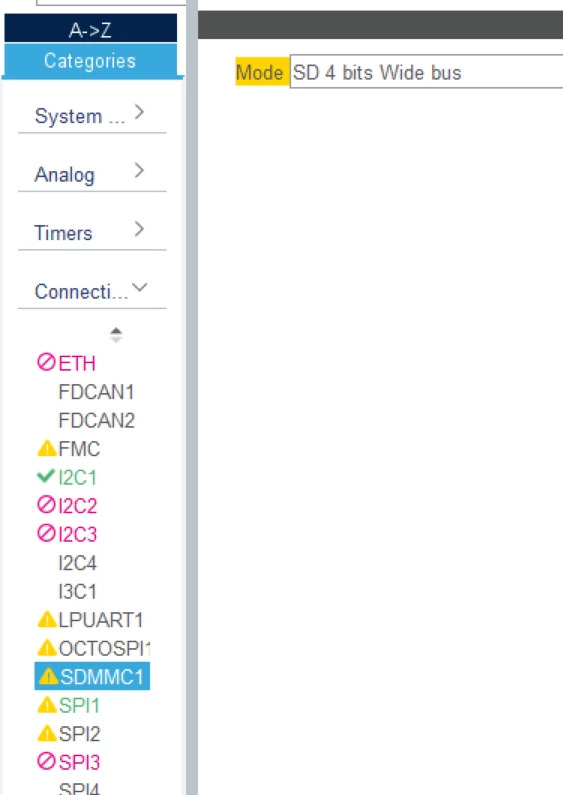

I checked FILEX, SD interface. But CUBEIDE say fatfs.h : No such file or directory.



Please help me out..

Thanks,

kadekade



[Mahmoud Ben Romdhane]

Hello @kadekade

Let me thank you for your posting.

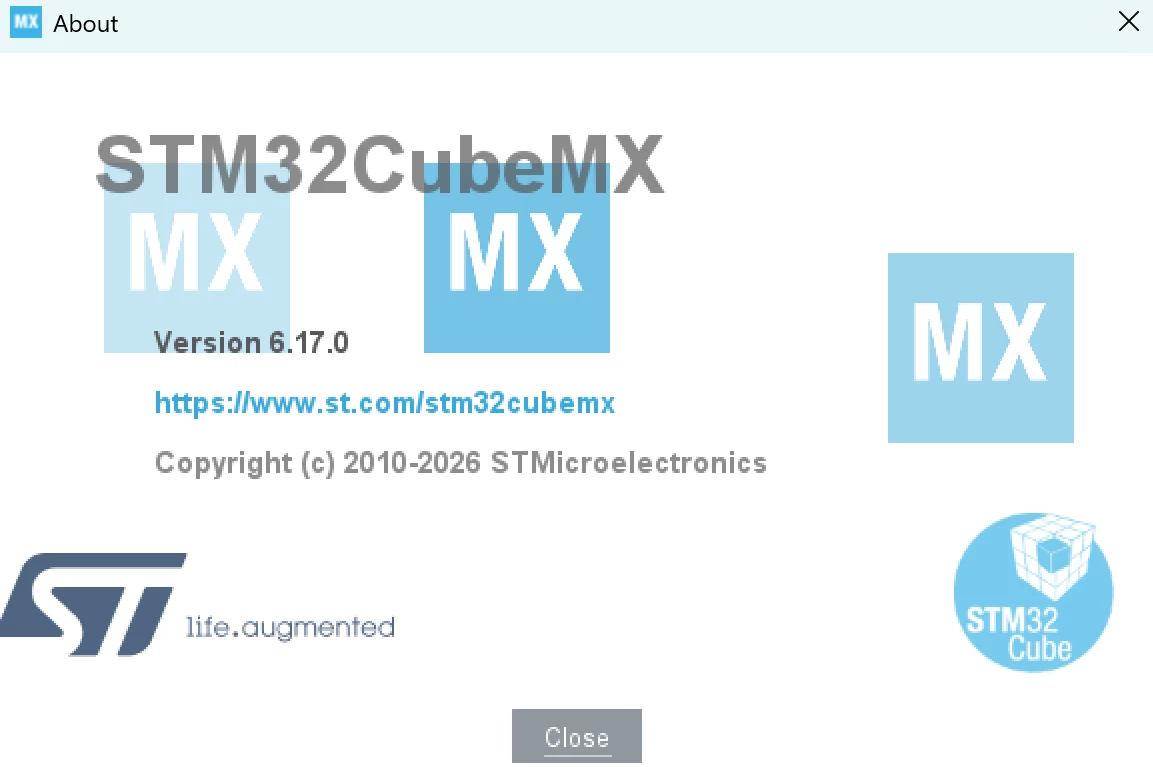

I created a project with STM32CubeMX 6.17 [STM32H573VIT6], and the issue was not reproduced by my side.

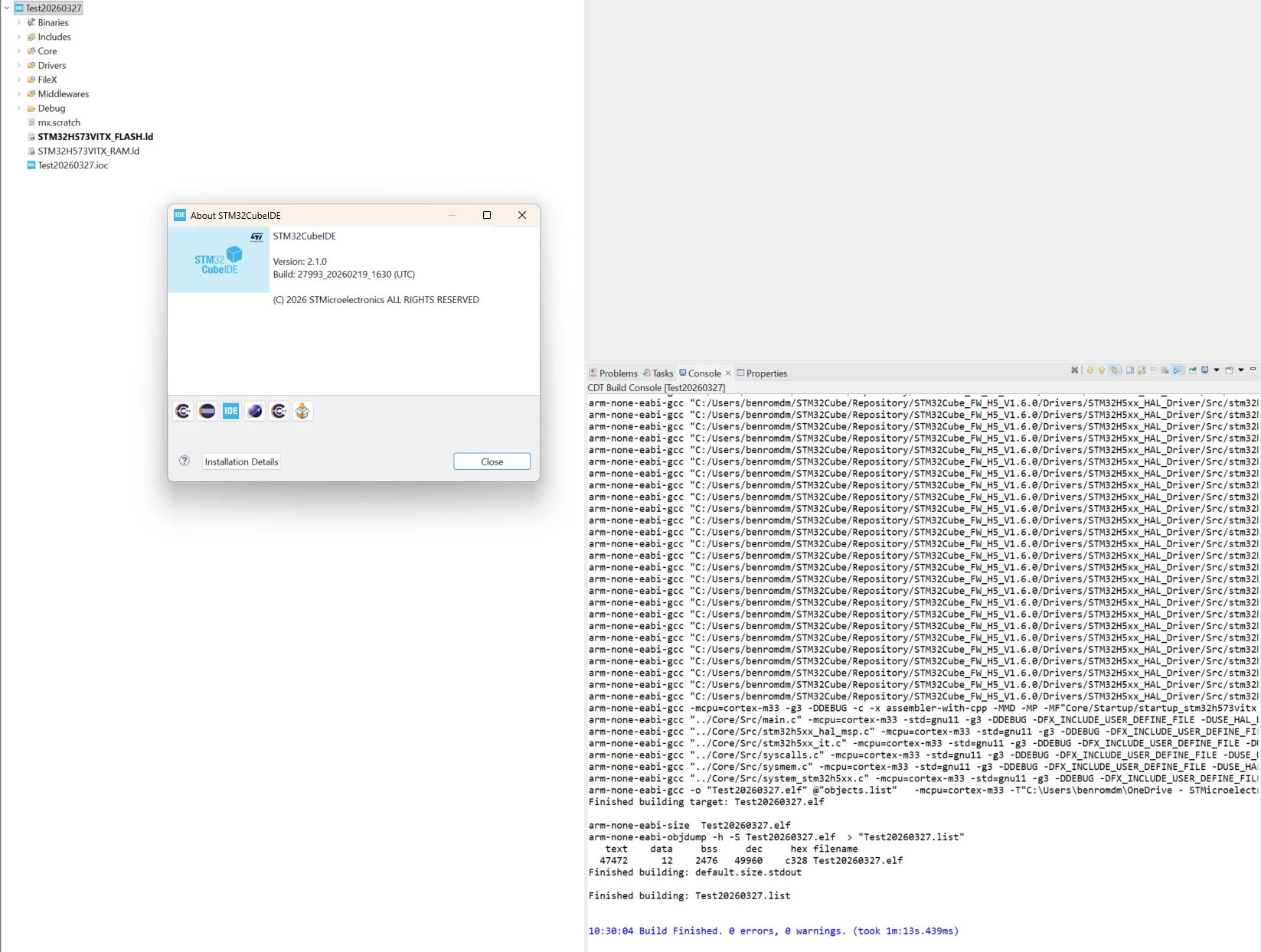

The compilation completed without any errors.

For more investigation, I suggest please that you provide your Ioc.File.

Thanks.

Mahmoud

[kadekade]

Dear Mahmoud,

I appreciate your help. I'm sorry to reply late.

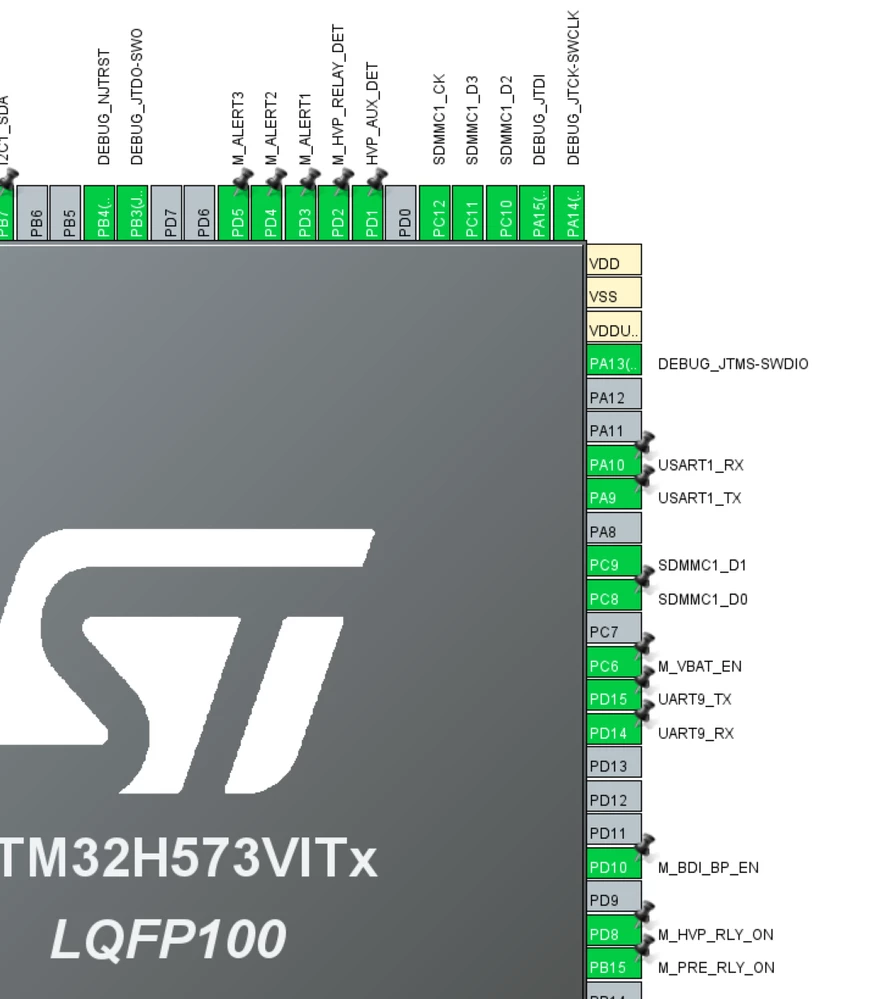

I attatched my ioc file. My settings is slightly defferent with your settings(SDMMC1_D0)

yours : SDMMC1_D0 PB13

me : SDMMC1_D0 PC8



I going to try testing with your ioc file.

Thanks,

kade



[kadekade]

I found out why it doesn't work.

I should setting memory bigger than sector sizes(ex:4096).

So. Not unsigned char media_memory[256]

is "unsigned char media_memory[4096 or more]"



Thanks,

BR

kade



[AScha.3]

Hi,

>but I can't FATFS

Right, here no fatfs , you have to use filex , as you selected in Cube.

mount drive ->

/* Open the SD disk driver */
 sd_status = fx_media_open(&sdio_disk, FX_SD_VOLUME_NAME, fx_stm32_sd_driver, (VOID *)FX_NULL, (VOID *) fx_sd_media_memory, sizeof(fx_sd_media_memory));



[kadekade]

Thank, I'm trying it again.

kade

[Mahmoud Ben Romdhane]

Hello @kadekade

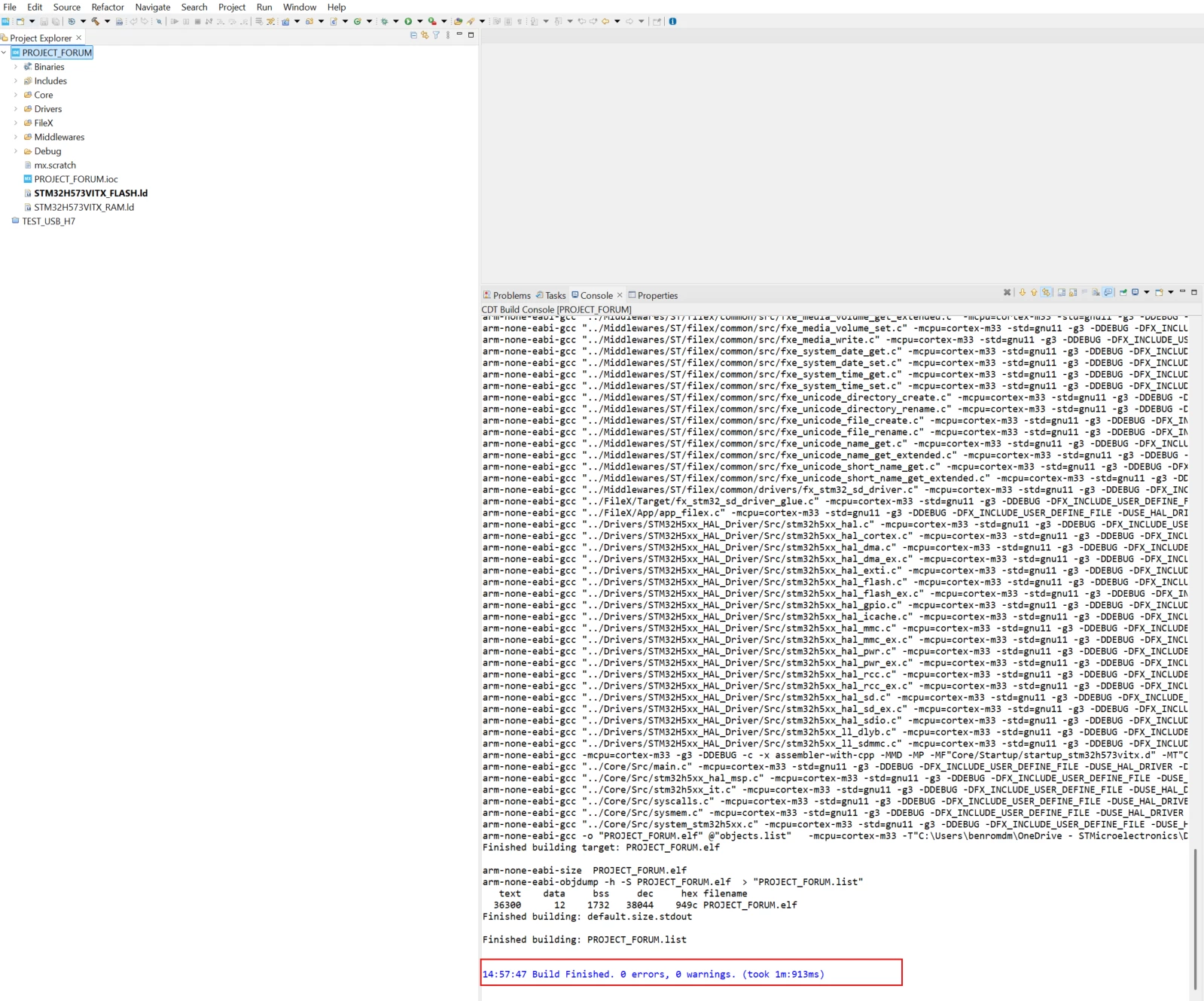

Further to your comment, I tested again with the Ioc.File provided through the attachment and the build was finished without any errors.

I will be waiting for your feedback.

Thanks.

Mahmoud
