stm32h7 cubemx clock configuration Bug

[Arman Ilmak]

Hi

I have seen problems with stm32h7 cube uart bug.

The Sources for uarts are pll2q but when debugging :

It says pclk1 and pclk2 are configured.

And even with these values baud rate will not be what I set. I have to divide  it by 2 (clock divider is 1).

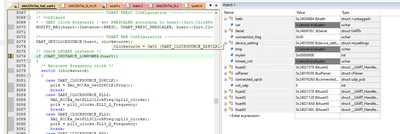

I searched in registers and i see RCC_D2CCIP2R is not initialized(its zero).

This register is the clock selection for UART. When i manually set proper value for it the baud rate wont be ok yet. So i think even pll2q is not configured properly too.

[AScha.3]

Hi,

I use uart4 + 7 on H743 , setup with Cube /IDE ;

no problems - here , version MX 6.9.1. ;

What is your version ?  and which uart at speed .. ?

[Arman Ilmak]

Hi
mx 6.10.0

115200 to 460800

[AScha.3]

So you set uartx ?   to 115k , ok.

What speed is it then ? and how you test this ?

[TDK]

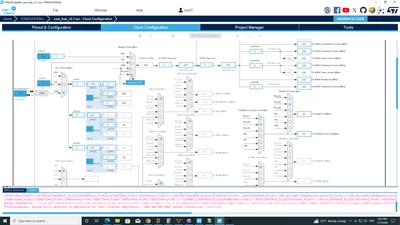

You have some error messages in the first picture at the bottom. Perhaps the IOC was edited in such a way to be incompatible. Attach your IOC file.
