STM32H723 - PCKL1 & PCLK2 missing from clock tree in CubeMX 6.16.1 & 6.17.0

This had me stumped for a while - Thought I was going blind for a second LOL.

PCLK1 and PCLK2 identifiers are missing from the clock tree diagram for the STM32H723.

(They are present in the trees for F103, G431, F446 and F723).

Best answer by Ghofrane GSOURI

Hello @Bags

A change request has been escalated to dev team to add the source of the signals as you requested.

Internal ticket ID is 228380

THX

Ghofrane

Technical Moderator

Hello @Bags

After checking the clock tree of the STM32H723, I found PCLK1 and PCLK2.

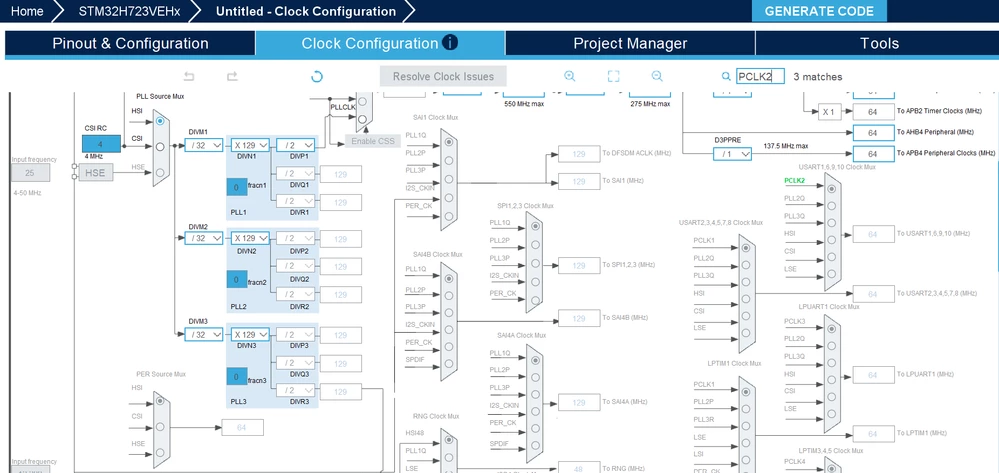

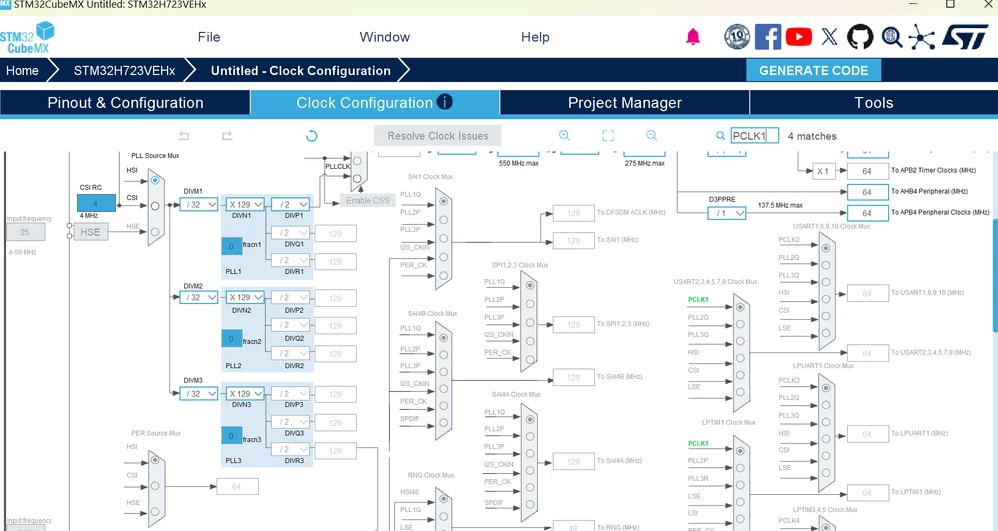

Please try using the search bar: you should get 3 matches for PCLK2 and 4 matches for PCLK1 .The matching results will appear in green.

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

BagsAuthor

Associate III

Hi,

Your reply shows where the PCLK signals are used. It does not show where the signals come from.

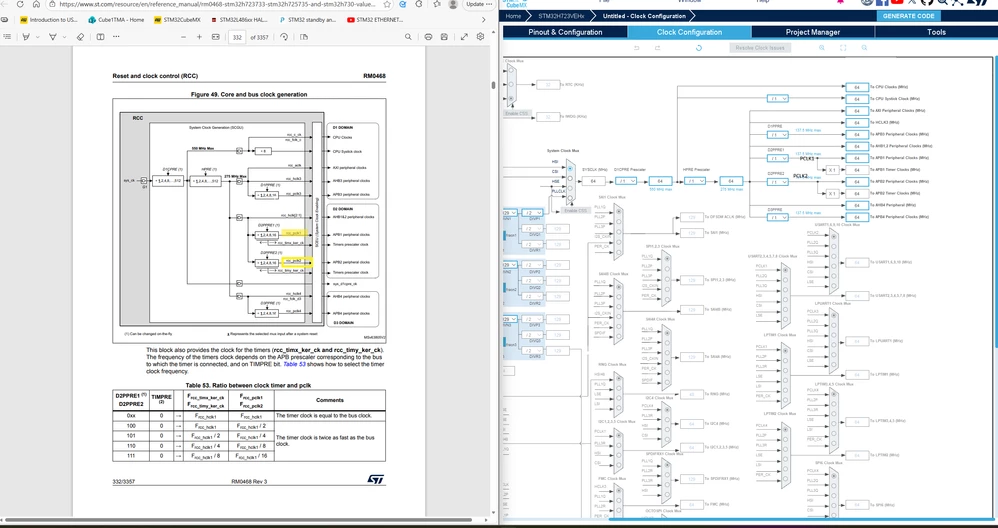

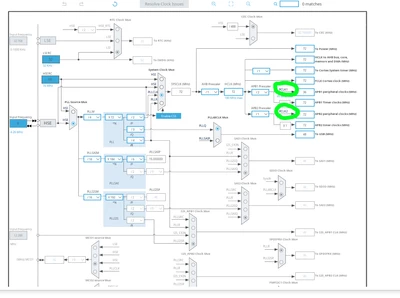

For example F446 below (same goes for all the other MCUs I listed except the H723)...

F446 PCLK Sources.png

Technical Moderator

Hello @Bags

A change request has been escalated to dev team to add the source of the signals as you requested.

Internal ticket ID is 228380

THX

Ghofrane

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
