STM32WB05KNV6TR missing in STM32CubeIDE 2.0.0 Target Selector

[burak_Guzeller]

Hello ST Community,

I am currently working on a project using the STM32WB05KNV6TR microcontroller. I am using STM32CubeIDE Version 2.0.0, and I have ensured that all MCU packages and embedded software packs are up to date.

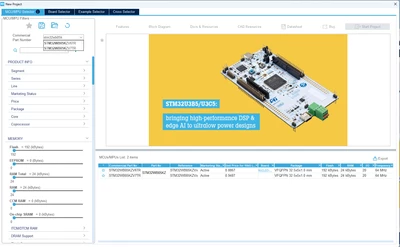

Specifically, as shown in the attached screenshot, I have the STM32Cube MCU Package for STM32WB0 Series (v1.4.1) installed. However, when I try to create a new project and use the Target Selector (MCU/MPU Selector), the STM32WB05 series—and specifically the STM32WB05KNV6TR—does not appear in the list.

I urgently need to access the Pinout & Configuration view to finalize my hardware design and verify the pin assignments.

Steps I have already taken:

1. Updated STM32CubeIDE to the latest available version.

2. Refreshed and installed the latest WB0 series patches via the Embedded Software Packages Manager.

3. Restarted the IDE and checked the board/MCU selector filters.

Questions:

• Is there a specific patch or an external ".pdsc" file required to enable STM32WB05 support in CubeIDE 2.0.0?

• Are there any known compatibility issues with this specific version of the IDE and the WB0 line?

• If the device is not yet fully integrated into the selector, is there a recommended "workaround" or a similar part number I should use for pinout verification?

Any guidance or documentation regarding the integration of the WB05 series into the Cube ecosystem would be greatly appreciated.

Best regards,





[Ghofrane GSOURI]

Hello @burak_Guzeller

Thanks for bringing  this issue to our attention.

A ticket has been escalated to dev team #0061618 for further investigation and correction.

I will keep you posted with updates.

THX

Ghofrane

[burak_Guzeller]

Thank you in advance, we look forward to your reply as soon as possible.

[Ghofrane GSOURI]

Hello @burak_Guzeller

I am sharing our expert’s explanation with you:

The WB05xN is used as a network coprocessor, while the application runs on the host device.
So in STM32CubeMX, you create the project for the Host MCU/MPU, not for the WB05xN.

It is not possible to create an MX project for these CPNs.

THX

Ghofrane
