Target Software Startup Script Error

[Utkarash Patil]

Hello All,

I am using STM32F777IITx MCU based custom board with STM32CubeMx v4.24.

I want to built a application where i want to Read/Write data from/to flash.

I am have written a small application where i write 10 bytes of data to flash and also read those 10 bytes from flash

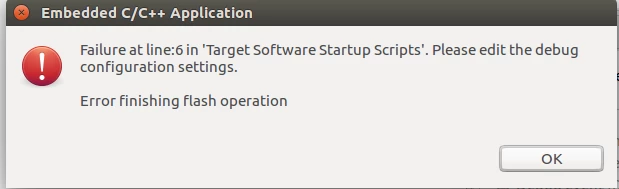

My code Complies properly with no errors, However, when i tried to run the code in Debug mode i am getting the error mentioned below.

Whereas i have not changed anything in the Startup script, also i have attached the startup script below

# Set flash parallelism mode to 32, 16, or 8 bit when using STM32 F2/F4 microcontrollers
# 2=32 bit, 1=16 bit and 0=8 bit parallelism mode
monitor flash set_parallelism_mode 2

# Load the program executable
load

# Enable Debug connection in low power modes (DBGMCU->CR)
set *0xE0042004 = (*0xE0042004) | 0x7
# Set a breakpoint at main().
tbreak main

# Run to the breakpoint.
continue

So please help me to get rid of this issue at the earliest and if i am making any mistake while debugging please help me with it ,

Also if there are changes to be made in startup script please help me with correct startup script

Thanks and Regards

Utkarsh

[Pavel A.]

Have you tried to change set_parallelism_mode to 1?

--pa

[Utkarash Patil]

Hello Pavel,

Thank you for the response,

I Changed the parallelism mode to 1 and tried to debug however still facing the same issue with same error pop-up as mentioned in last post.

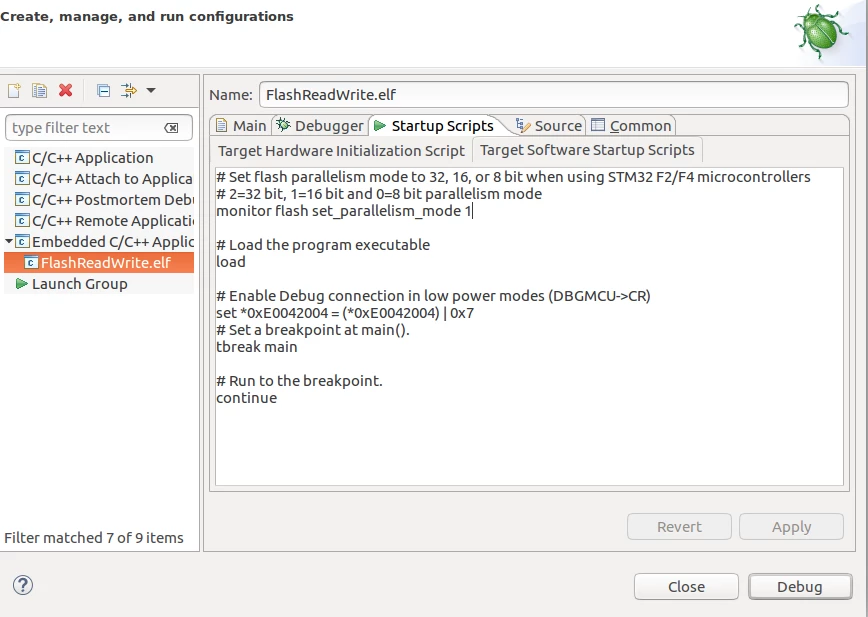

I have attached the screen shot of startup Script please check.

Please help with this earliest.

Thanks and Regards

Utkarsh

[Utkarash Patil]

Hello All,

Are there any updates regrading this isssue,

I request you to Please help at the earliest as i need the solution on the urgent bases

thanks and regrads

Utkarsh

[Pavel A.]

It looks like some error occurs in the "load" command.

Please open the Debugger console window and see what it says there.

(the output should begin with "STMicroelectronics ST-LINK GDB server" .... )

-- pa

[Utkarash Patil]

Hello Pavel,

Thank you for the Response,

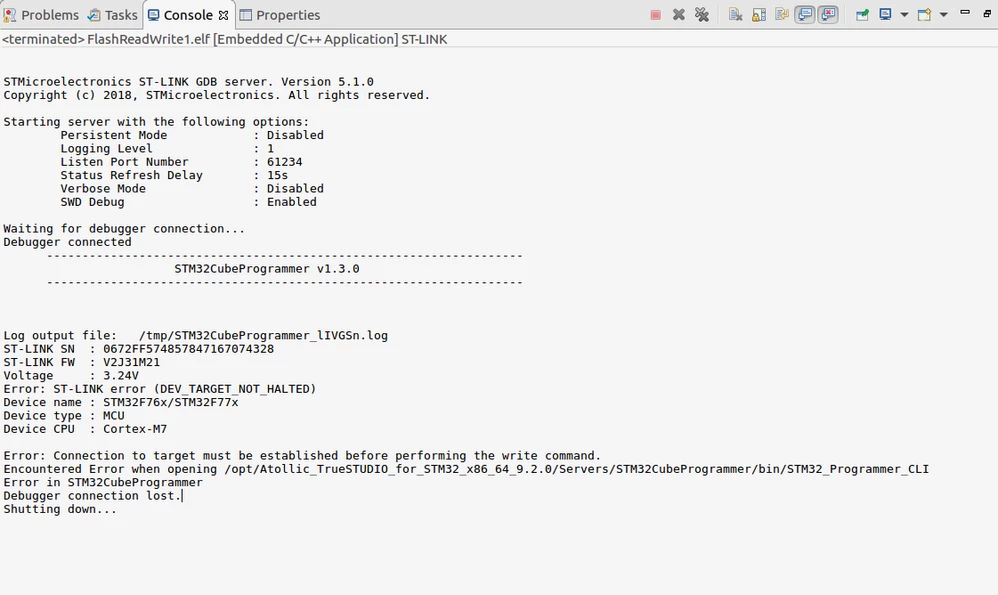

I have attached the error message on the console, however i am not getting anything like "the output should begin with "STMicroelectronics ST-LINK GDB server....." .

ERROR MESSAGE:

Error: Connection to target must be established before performing the write command.

Encountered Error when opening /opt/Atollic_TrueSTUDIO_for_STM32_x86_64_9.2.0/Servers/STM32CubeProgrammer/bin/STM32_Programmer_CLI

Error in STM32CubeProgrammer

Debugger connection lost.

Shutting down...

Please check the error and help at the earliest its urgent

Thanks and response

Utkarsh

[MSai]

Hi Utkarsh,

Is your error is resolved because i am also facing same error.

Please help at the earliest. i need it urgent

Thanks in Advance.

Thanks

SaiRam.

[Anshul1]

Hi Sai and Utkarsh,

Did you find a solution to the above issue, I am also facing the same error.

Please help at the earliest.

Thanks,

-AM
