Unable to generate FreeRTOS code after migration

[Engin Lee]

Hi ST,

I have a STM32H7 project with FW_H7_v1.12.1 and MX v6.16.1, everything is good so far.

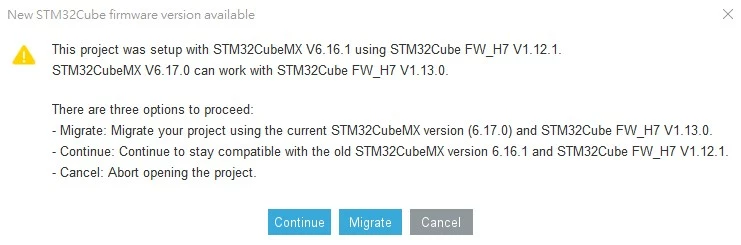

But after migration to FW_H7_v1.13.0, I can't generate FreeRTOS code any longer.

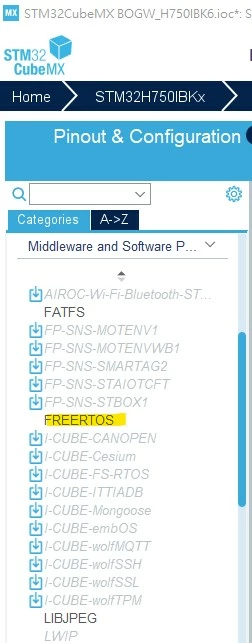

All FreeRTOS-related code are deleted and MX stay loading icon when I click FREERTOS component.

I tried uninstall MX and then install latest MX v6.17, but the same.

I also tried install X-CUBE-FREERTOS component, but still the same.

Please find my ioc file as attachment.

Is there anything I can do?

Thank you very much.

BRs,

-Engin

[Ghofrane GSOURI]

Hello @Engin Lee

After checking internally (Ticket ID #34891), we confirm that FreeRTOS has been updated from version v10.3.1 (used in STM32CubeMX 6.16.1) to v10.6.2 (used in STM32CubeMX 6.17.0).

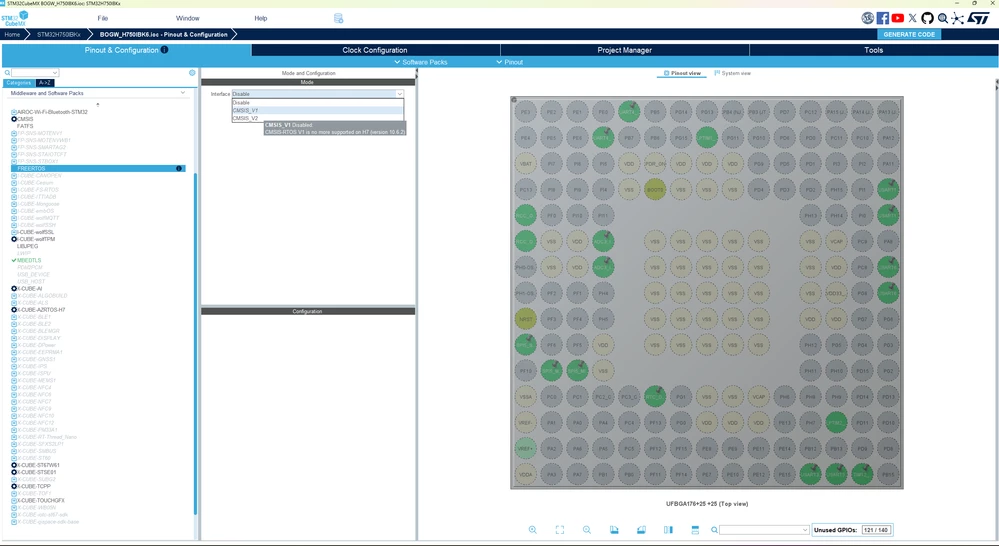

In this new version, CMSIS-RTOS v1 (cmsis_os.h, CMSIS-RTOS API v1) is no longer supported.
You therefore need to migrate your application to CMSIS-RTOS v2 (cmsis_os2.h, CMSIS-RTOS API v2).



THX

Ghofrane
