X-CUBE-EEPRMA1 package activation in CubeMX

[meena]

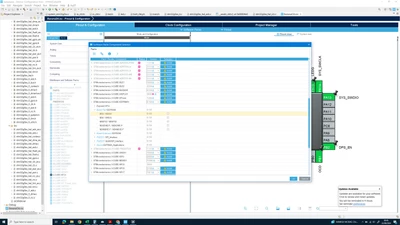

I am in work with a product firmware with STM32G030k8 with additional EEPROM M24C04 I coudlnt ble to instal the driver files .

Is this the righ tway am doing,can any one please address this?I am not able to hightlight or install Thanks.

[mƎALLEm]

Hello @meena ,

You need to check one of the available drivers:

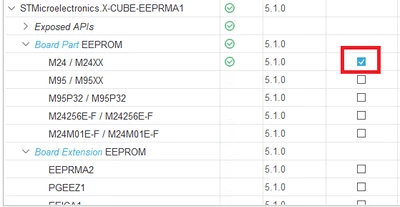

For example, for M24 / M24XX, check the box on the right and click OK.

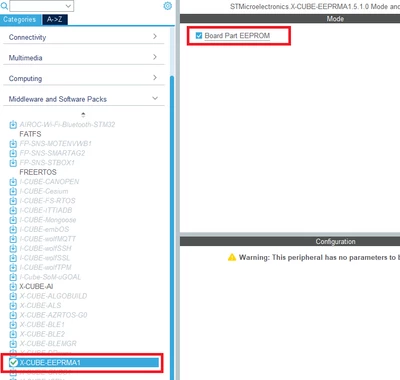

In "Middleware and Software Packs" menu , click on X-Cube-EEPRMA1 and check the box "Board Part EEPROM"

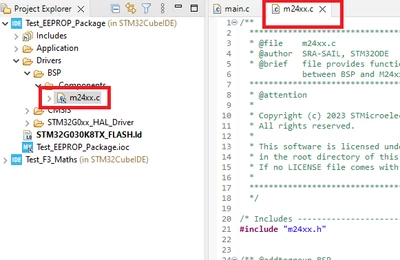

After generating the code, M24XX driver is included in the project.

Attached an example of ioc file.

Hope it helps.









[meena]

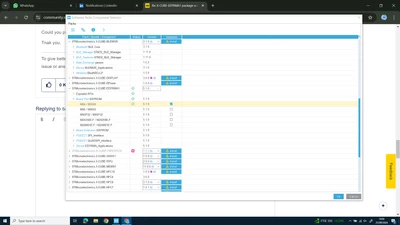

Hi Thanks  yes but for some reason I am not able to tick (enable )the driver  or install.May I know what is wrong

[mƎALLEm]

Sorry, I didn't understand. Did you try the ioc file I provided ?

I'm able to open the EEPROM driver



Which driver you are not able to open:



[meena]

Can you please tell me whether  the EEPROM M24c02-R below can be used with STM32G030K8



[mƎALLEm]

---

@meena wrote:

Can you please tell me whether  the EEPROM M24c02-R below can be used with STM32G030K8



---

Did you open the ioc file I've attached previously? it's based on STM32G030K8.

[meena]

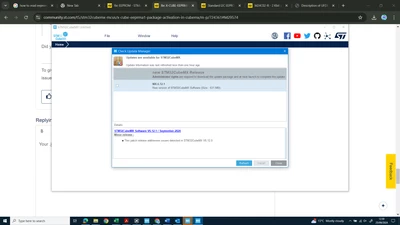

Your .ioc says 6.12version and Iam unable to migrate my cubemx version for updates



[mƎALLEm]

I've unmarked the solution.

Unfortunately, the resolution of the images you shared is bad and blurry.

Could you please share a screenshots with better resolution?

Tnak you.

[meena]



After cubenx update and a reboot I can able to do what I need. Verymuch thanks for you support
