ADC1_IN16 uasge

[istepne]

Hi,

I am using the latest version v1.16.0 STM32CubeIDE with stm32g071cb.
It is not possible to use ADC1_IN16 (PB12). I have created also a new project  to test this condition.
Changing the sequencer disables IN16 or makes error condition.
I need PA2 -PA3 and PB12 pins (IN2-3-16 channels to ADC sampling)

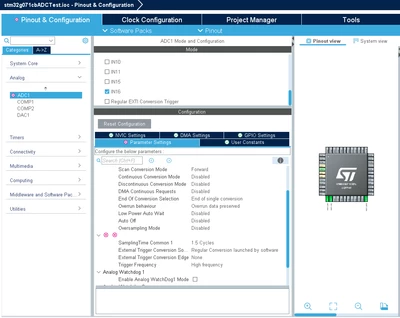

Below attached screen view and the ioc file generated via STM32CubeIDE

Regards

Murat







[STTwo-32]

Hello @istepne

This issue has been reported in this post and it will be solved on the coming Cube Tools Releases.

Update: this issue has been solved on the STM32CubeMX V6.13.0.

Best Regards.

STTwo-32

[carlesls2]

How do you chhnage the sequencer?

Thanks

[istepne]

I am using the latest update Version: 1.18.0

Stil it can not be changed as "fully configurable".

Also I am using 9channels enabled DMA transfer and the transferred data order is not same as cahnnel selection.

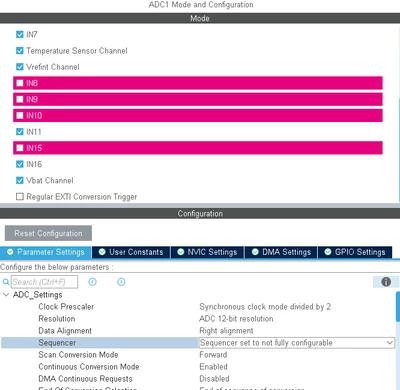

To get ADC sample on channel IN16, I have to choose "not fully compatible". And as a transfer result of the converted ADC value placed in order with In7-Temp-Vref-In11-Vbat-IN16 (not shown below)

So, still some problems





[carlesls2]

Thanks. It worked
