Add Compiler Options; Find reason for yellow warning exclamation mark

[chriskuku]

Split from  https://community.st.com/t5/stm32cubeide-mcus/warning-in-build-stm32cubeide-1-18-0-load-segment-with-rwx/td-p/788554

---

Since I have a yellow exclamation mark sticking at the project icon I would like to see if it disappears when I add the CFLAG:

--no-warn-rwx-segments

in the makefile. The Debug/makefile contains a bunch of flags but misses the CFLAG which I assume to be burried in one of the includes (makefile.init, makefile.defs). Only, I cannot finde these included files. Can anyone help?

And how can I find out about the reason for the yellow exclamation mark? I was used to find this propagating downstream in the tree view attached to other files. But I don't see any "smudged" file.

[Andrew Neil]

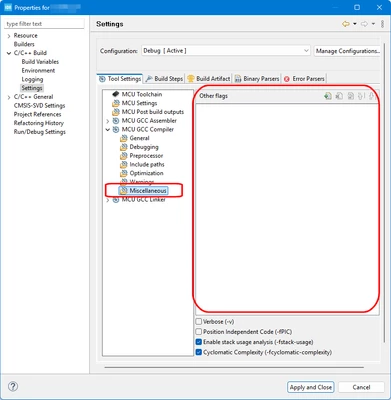

You can add flags in the Project settings Properties here:



---

@chriskuku wrote:

how can I find out about the reason for the yellow exclamation mark?

---

If you hover your mouse over it, it should show the warning.

Also look in the Console output window.

[chriskuku]

Project Settings, name it better "Project Properties" - hard to find. Rightclick on the project in the tree view.
Click on Properties. The one finds C/C++ Build.

It's not in the Preferences menu item (macOS)

[Andrew Neil]

---

@chriskuku wrote:

Project Settings, name it better "Project Properties"

---

Indeed - post corrected
