Attaching to a running MCU in the STM32CubeIDE.

  • October 28, 2025
  • 1 reply
  • 115 views

Hello,

How can I attach to running microcontroller in the STM32CubeIDE?

The IAR has the Attach to running target function. The STM32CubeIDE have not this function.

Best answer by Andrew Neil

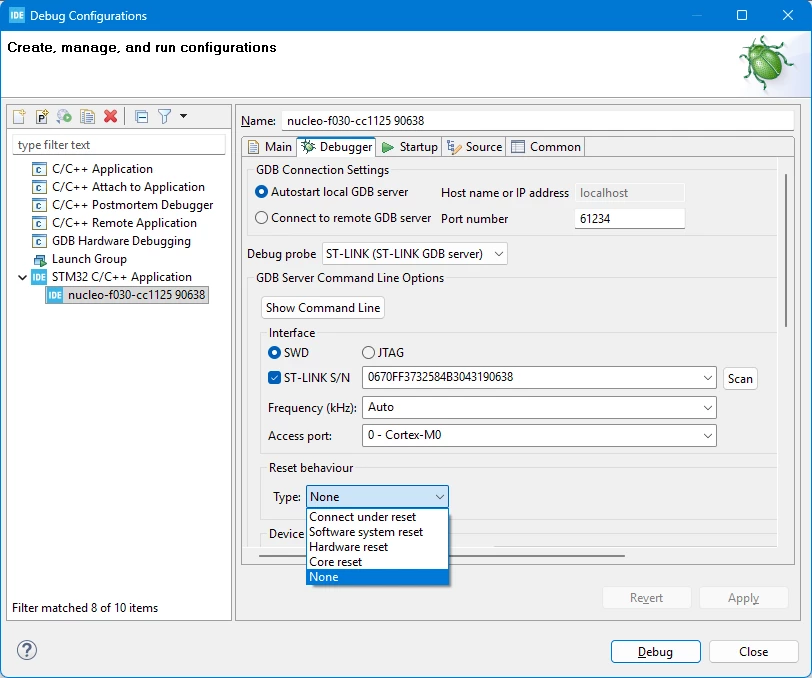

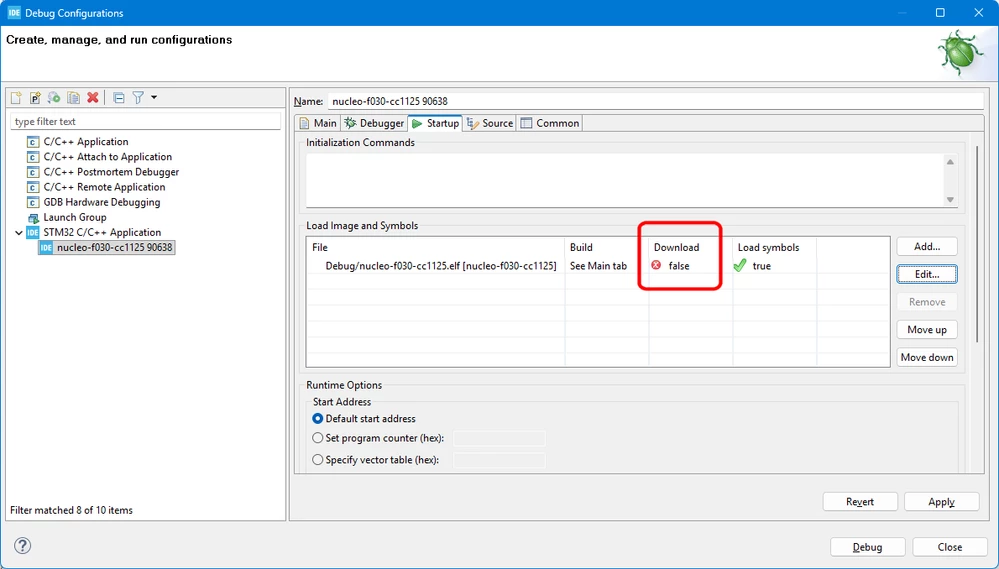

Create a Debug Configuration with 'Reset  behaviour' set to 'None' and 'Download' disabled:





#AttachToRunningTarget

1 reply

Andrew Neil
Andrew NeilBest answer
Super User
October 28, 2025

Create a Debug Configuration with 'Reset  behaviour' set to 'None' and 'Download' disabled:





#AttachToRunningTarget
