Breakpoints in FreeRTOS are getting hit very weirdly!

[vishnu_illikkal]



Weird things are happening.

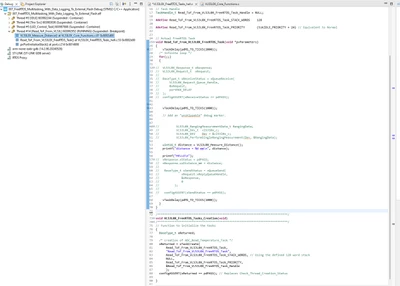

The breakpoint  i set in the void Read_ToF_From_VL53L0X_FreeRTOS_Task(void *pvParameters) task is not getting hit

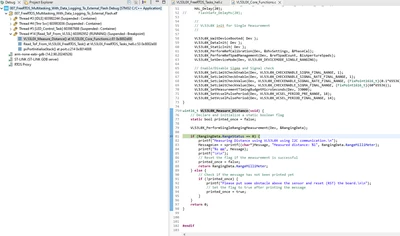

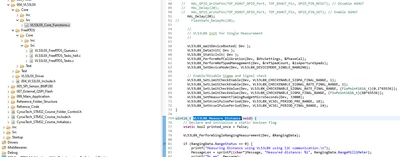

this task calls VL53L0X_Measure_Distance function in which i set a breakpoint which is working ok !

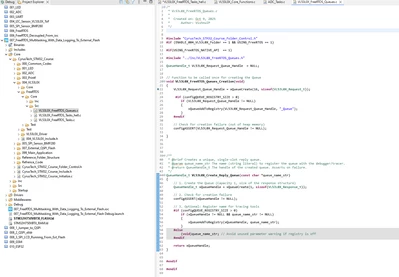

also i put another breakpoint in the file VL53L0X_FreeRTOS_Queues.c which is called upon initialization
this is also not getting hit

is it a problem with teh specific folder?

but the VL53L0X_Core_Functions.c also on the same main dir

does the FreeRTOS dir have any problems?

Has anyone experienced this problem?

@Andrew Neil

@mƎALLEm
@TDK

[vishnu_illikkal]

Note:

The tasks which are not getting hit by the breakpoint are working properly i am getting its outputs.



[TDK]

What device? The number of hardware breakpoints is limited. If you try to set too many, you should get a message about it.

Consider clearing all breakpoints, verifying that none are set in the Breakpoints tab, then setting the one you want to see if it will work.

[vishnu_illikkal]

STM32H750VBT6
i also tried to set only the breakpoints in the task Read_ToF_From_VL53L0X_FreeRTOS_Task  still not working





[vishnu_illikkal]

I have a second board also, i tried the same code on that also. which is also showing the same problem.

[vishnu_illikkal]

Today I tried the same code in a new project! and the breakpoint worked correctly.

So i guess some weird configuration error happened in the old project.

Note that i haven't manually changed any config in my knowledge.

If there were any shortcut keys i don't know about then and also if I accidently pressed some.
