Build a STM32CubeIDE project via command line

[virendra_dalal]

I have a STM32 project created for STM32H757 which has dual core CPU. The directory structure is look like this:

I wanted to build this project using command line in my ubutnu machine. I have tried with this command:

$ <INSTALLTION_DIRECTORY>/st/stm32cubeide_1.12.1/stm32cubeide --launcher.suppressErrors -nosplash -application org.eclipse.cdt.managedbuilder.core.headlessbuild -data "./" -build fx/CM7

But it shows "WARNING: No Project matched "fx/CM7". Skipping..."

I have tried running it from root of the project directory like "<REPO_PATH>/sca_repo/fx_redesign/fx", also tried it running from inside the fx directory too like "<REPO_PATH>/sca_repo/fx_redesign/fx/CM7/". But output does not changed, I can not figure out what I am missing here, can anyone help me ?



[Souhaib MAZHOUD]

Hello @virendra_dalal

It seems that the issue is related to the name of project: try -build fx_CM7 instead of -build fx/CM7

BR, Souhaib



[virendra_dalal]

Hi Souhaib,

I have tried with all the different combinations like fx_CM7, fx, fx/CM7. But output is same:

WARNING: No Project matched "fx_CM7". Skipping...

The fx is project name, which is given in .project file:

<?xml version="1.0" encoding="UTF-8"?>
<projectDescription>
 <name>fx</name>
 <comment></comment>
 <projects>
 </projects>
 <buildSpec>
 </buildSpec>
 <natures>
 <nature>com.st.stm32cube.ide.mcu.MCUProjectNature</nature>
 <nature>com.st.stm32cube.ide.mcu.MCUCubeProjectNature</nature>
 <nature>com.st.stm32cube.ide.mcu.MCURootProjectNature</nature>
 <nature>com.st.stm32cube.ide.mcu.MCUCubeIdeServicesRevAev2ProjectNature</nature>
 <nature>com.st.stm32cube.ide.mcu.MCUMultiCpuProjectNature</nature>
 </natures>
</projectDescription>

I am running this command from the root directory. My actual path for the project is:

/home/virendra/sca_repo/fx-redesign/fx

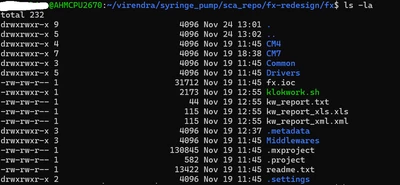

Here are the contents of this path:



After couple of retries, I have changed a command a bit to this:

$ /home/st/stm32cubeide_1.12.1/stm32cubeide --launcher.suppressErrors -nosplash -application org.eclipse.cdt.managedbuilder.core.headlessbuild -data "/home/virendra/sca_repo/fx-redesign/" -build fx

And, response was this:

Project: fx doesn't appear to be a CDT project. Skipping...
WARNING: No Config matched "fx". Skipping...



[Souhaib MAZHOUD]

Hello @virendra_dalal

fx doesn't appear to be a CDT project. means that CubeIDE does not recognize it as an Eclipse/CDT project,
Could you please check if any of your project files are missing (i can't see .cproject in your path) or try to re-import your project in stm32CubeIDE;
