Can not start debug session STM32CubeIDE (ST-Link, Nucleo-F767ZI)

[NikolaiB]

Hello all,

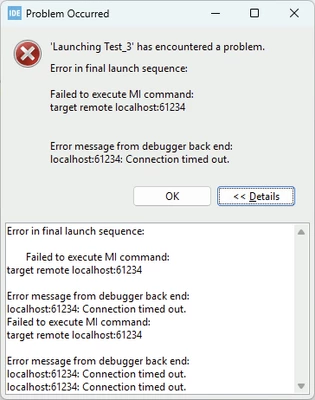

I get an error starting a debug session from STM32CubeIDE (1.18.1) (STM32 Nucleo-F767ZI):

STMicroelectronics ST-LINK GDB server. Version 7.10.0

Copyright (c) 2025, STMicroelectronics. All rights reserved.

Starting server with the following options:

Persistent Mode : Disabled

Logging Level : 1

Listen Port Number : 61234

Status Refresh Delay : 15s

Verbose Mode : Disabled

SWD Debug : Enabled

InitWhile : Enabled

Target USB comms error

Error in initializing ST-LINK device.

Reason: USB communication error. Please reconnect the ST-LINK USB cable and try again.



If I switch to SEGGER J-Link everythink works fine.

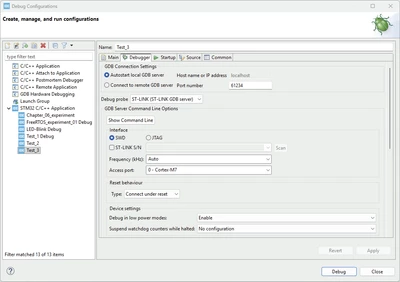

Is my debug configuration:

What I tried:
- Restart PC
- Reinstall the USB-Driver (https://www.st.com/en/development-tools/stsw-link009.html)
- Erased the flash with STM32CubeProgrammer
- Changes USB cable
- Googled for solutions

Please help

Best regards

Nikolai







[NikolaiB]

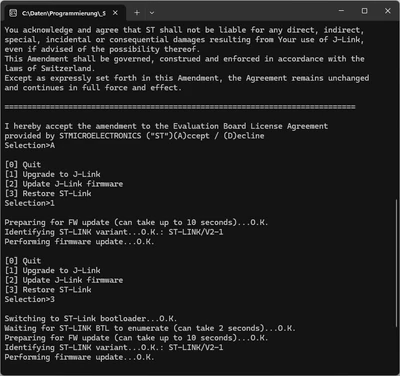

I switch between ST-Link and J-Link with the STLinkReflash-Tool. That works fine. If J-Link is flashed I can start a debug session from the STM32CubeIDE and from the SEGGER-Tools (Ozone, SystemView). But if I change to ST-Link, I get the error.



[NikolaiB]

I tried it with version 2.0.0 of the STM32CobeIDE, but it didn't help. Same problem.

[NikolaiB]

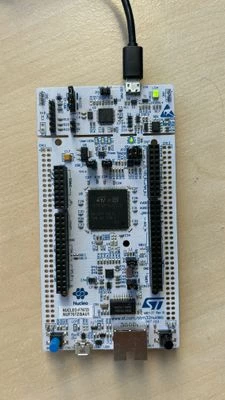

All jumpers are default. I haven't changed anything.





[Andrew Neil]

Does CubeProgrammer connect OK?

Has this board ever worked for you?

More things to try here.



[NikolaiB]

I can flash the ST-Link debug probe withe J-Link or ST-Link. If the J-Link firmware is running I can connect via the CubeProgrammer. Then erase or flash the MCU. If the ST-Link firmware is running on the debug probe, I have the described problem. But the CudeIDE detects the MCU!!!



[Imen.D]

Hello @NikolaiB and welcome to the Community

Did you try reinstalling ST-LINK server software ?

Ensure debug pins (SWDIO, SWCLK) are not assigned to other signals.

Check also the option bytes for correct configuration.

Try to connect under reset mode.

[NikolaiB]

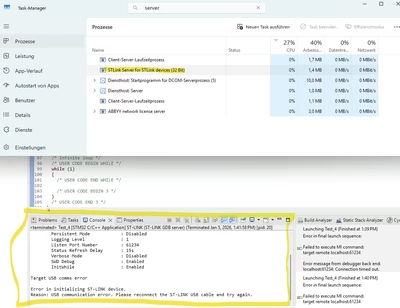

I have installed the ST-Link server. I see in the task manger that it is a 32Bit application. I have a 64 bit OS. Could that be a problem?



[NikolaiB]

I just ordered a new Nuceo-Dev-Board to exclude any hardware issues. Will take a week to arrive.

[NikolaiB]

Hello all! Here comes the solution!

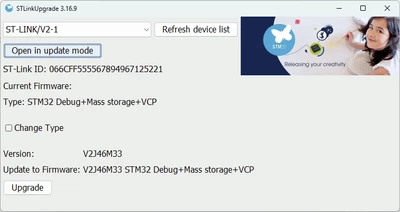

After reflashing the ST-Link debug probe with ST-Link firmware using STLinkReflash, an update by meens of STLinkUpgrade has to be conducted. STLinkUpgrade is a tool inside the CudeIDE (Help->STLinkUpgrade)(screenshot).

I suppose, the STLinkReflash (Segger Tool) ist outdated. Is has version 190812 (2019.08.12). But it is the latest version currently.

After the "uprade" debugging from the CudeIDE works fine. So switching between SEGGER J-Link und ST ST-Link is now possible.

Best regards

Nikolai



[Andrew Neil]

---

@NikolaiB wrote:

Here comes the solution!

---

Thanks for that - please mark it as the solution.



---

@NikolaiB wrote:

I suppose, the STLinkReflash (Segger Tool) ist outdated.

---

Please raise that with Segger:

https://forum.segger.com/board/4-j-link-flasher-related/
