Compiler / Linker Broken in CubeIDE

[matt-crc]

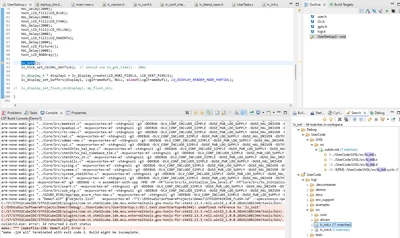

The CubeIDE linker doesn't seem to work properly... Any help would be greatly appreciated.  ST Employee help?????

1- In the UserStartup.c, I call lv_init();

2- After compiling, it says it cannot find lv_init()

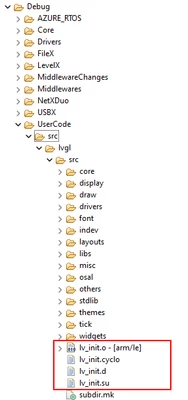

3- I see that the file lv_init.c file got compiled (lv_init() is defined in that file) - the object file was created lv_init.o

4- It seems the linker cannot find that file....

Is there a limitation on the number of files the linker can handle?





[Pavel A.]

The linker in the toolchain of CubeIDE has no limitations. The file lv_init.c indeed seems to be compiled. Try to double check why  lv_init.o is not linked or the required functions in it are not found. Bug in the linker is unlikely. Bugs of this kind usually occur between the chair and keyboard ))

[matt-crc]

Hi @Pavel A.

I'd be really happy if the bug is between the chair and keyboard, but things seem to be pointing to the compiler.  Also, in the pre-compiler, there seems to be a problem with the includes.

In one file (early on in the compile), it has no problem finding the "#include "lvgl.h" file.  as the 6 min compilation continues, files compiled later with the same "#include lvgl.h"  generates and error: "Cannot find include file"

If I change the "#include "lvgl.h" to the real path, and not using the include search path, then the file compiles... To me this looks and sounds like a compiler limitation....



Also, there seems to be a limitation to the number of SRC directories defined in CubeIDE  (max 10).  Most were autogenerated by CubeMX.  I know this is a large compile and we are definitely pushing the limits of the IDE.



[Pavel A.]

What is the CubeIDE version and STM32? Is any antivirus (or worse) installed? Are you by chance low on disk space?





[matt-crc]

Hi @Pavel A.

The machine that I'm using is a Dell Precision 3660 with 12th gen processor, and 64gb mem.  Over 1.2TB free on disk

STM32CubeIDE is version 1.18.0, Build 24413_20250227_1633

No antivirus installed,

[Andrew Neil]

---

@matt-crc wrote:

3- I see that the file lv_init.c file got compiled (lv_init() is defined in that file)

---

Is it?

You haven't shown that

[matt-crc]



@Andrew Neil

line 172

/**
 * @file lv_init.c
 *
 */

/*********************
 * INCLUDES
 *********************/
#include "misc/lv_timer_private.h"
#include "misc/lv_profiler_builtin_private.h"
#include "misc/lv_anim_private.h"
#include "draw/lv_image_decoder_private.h"
#include "draw/lv_draw_buf_private.h"
#include "core/lv_refr_private.h"
#include "core/lv_obj_style_private.h"
#include "core/lv_group_private.h"
#include "lv_init.h"
#include "core/lv_global.h"
#include "core/lv_obj.h"
#include "display/lv_display_private.h"
#include "indev/lv_indev_private.h"
#include "layouts/lv_layout_private.h"
#include "libs/bin_decoder/lv_bin_decoder.h"
#include "libs/bmp/lv_bmp.h"
#include "libs/ffmpeg/lv_ffmpeg.h"
#include "libs/freetype/lv_freetype.h"
#include "libs/fsdrv/lv_fsdrv.h"
#include "libs/gif/lv_gif.h"
#include "libs/tjpgd/lv_tjpgd.h"
#include "libs/libjpeg_turbo/lv_libjpeg_turbo.h"
#include "libs/lodepng/lv_lodepng.h"
#include "libs/libpng/lv_libpng.h"
#include "libs/tiny_ttf/lv_tiny_ttf.h"
#include "draw/lv_draw.h"
#include "misc/lv_async.h"
#include "misc/lv_fs_private.h"
#include "widgets/span/lv_span.h"
#include "themes/simple/lv_theme_simple.h"
#include "misc/lv_fs.h"
#include "osal/lv_os_private.h"
#include "others/sysmon/lv_sysmon_private.h"
#include "others/xml/lv_xml.h"

#if LV_USE_SVG
 #include "libs/svg/lv_svg_decoder.h"
#endif

#if LV_USE_NEMA_GFX
 #include "draw/nema_gfx/lv_draw_nema_gfx.h"
#endif
#if LV_USE_DRAW_VGLITE
 #include "draw/nxp/vglite/lv_draw_vglite.h"
#endif
#if LV_USE_PXP
 #if LV_USE_DRAW_PXP || LV_USE_ROTATE_PXP
 #include "draw/nxp/pxp/lv_draw_pxp.h"
 #endif
#endif
#if LV_USE_DRAW_G2D
 #include "draw/nxp/g2d/lv_draw_g2d.h"
#endif
#if LV_USE_DRAW_DAVE2D
 #include "draw/renesas/dave2d/lv_draw_dave2d.h"
#endif
#if LV_USE_DRAW_SDL
 #include "draw/sdl/lv_draw_sdl.h"
#endif
#if LV_USE_DRAW_VG_LITE
 #include "draw/vg_lite/lv_draw_vg_lite.h"
#endif
#if LV_USE_DRAW_DMA2D
 #include "draw/dma2d/lv_draw_dma2d.h"
#endif
#if LV_USE_DRAW_OPENGLES
 #include "draw/opengles/lv_draw_opengles.h"
#endif
#if LV_USE_WINDOWS
 #include "drivers/windows/lv_windows_context.h"
#endif
#if LV_USE_UEFI
 #include "drivers/uefi/lv_uefi_context.h"
#endif
#if LV_USE_EVDEV
 #include "drivers/evdev/lv_evdev_private.h"
#endif

/*********************
 * DEFINES
 *********************/
#define lv_initialized LV_GLOBAL_DEFAULT()->inited
#define lv_deinit_in_progress LV_GLOBAL_DEFAULT()->deinit_in_progress

/**********************
 * TYPEDEFS
 **********************/

/**********************
 * STATIC PROTOTYPES
 **********************/

/**********************
 * STATIC VARIABLES
 **********************/
#if LV_ENABLE_GLOBAL_CUSTOM == 0
 lv_global_t lv_global;
#endif

/**********************
 * MACROS
 **********************/

#ifndef LV_GLOBAL_INIT
 #define LV_GLOBAL_INIT(__GLOBAL_PTR) lv_global_init((lv_global_t *)(__GLOBAL_PTR))
#endif

/**********************
 * GLOBAL FUNCTIONS
 **********************/
static inline void lv_global_init(lv_global_t * global)
{
 LV_ASSERT_NULL(global);

 if(global == NULL) {
 LV_LOG_ERROR("lv_global cannot be null");
 return;
 }

 lv_memzero(global, sizeof(lv_global_t));

 lv_ll_init(&(global->disp_ll), sizeof(lv_display_t));
 lv_ll_init(&(global->indev_ll), sizeof(lv_indev_t));

 global->memory_zero = ZERO_MEM_SENTINEL;
 global->style_refresh = true;
 global->layout_count = LV_LAYOUT_LAST;
 global->style_last_custom_prop_id = (uint32_t)LV_STYLE_LAST_BUILT_IN_PROP;
 global->event_last_register_id = LV_EVENT_LAST;
 lv_rand_set_seed(0x1234ABCD);

#ifdef LV_LOG_PRINT_CB
 void LV_LOG_PRINT_CB(lv_log_level_t, const char * txt);
 global->custom_log_print_cb = LV_LOG_PRINT_CB;
#endif

#if defined(LV_DRAW_SW_SHADOW_CACHE_SIZE) && LV_DRAW_SW_SHADOW_CACHE_SIZE > 0
 global->sw_shadow_cache.cache_size = -1;
 global->sw_shadow_cache.cache_r = -1;
#endif
}

static inline void lv_cleanup_devices(lv_global_t * global)
{
 LV_ASSERT_NULL(global);

 if(global) {
 /* cleanup indev and display */
 lv_ll_clear_custom(&(global->indev_ll), (void (*)(void *)) lv_indev_delete);
 lv_ll_clear_custom(&(global->disp_ll), (void (*)(void *)) lv_display_delete);
 }
}

bool lv_is_initialized(void)
{
#if LV_ENABLE_GLOBAL_CUSTOM
 if(LV_GLOBAL_DEFAULT()) return lv_initialized;
 else return false;
#else
 return lv_initialized;
#endif
}

void lv_init(void)
{
 /*First initialize Garbage Collection if needed*/
#ifdef LV_GC_INIT
 LV_GC_INIT();
#endif

 /*Do nothing if already initialized*/
 if(lv_initialized) {
 LV_LOG_WARN("lv_init: already initialized");
 return;
 }

 LV_LOG_INFO("begin");

 /*Initialize members of static variable lv_global */
 LV_GLOBAL_INIT(LV_GLOBAL_DEFAULT());

 lv_mem_init();

 lv_draw_buf_init_handlers();

#if LV_USE_SPAN != 0
 lv_span_stack_init();
#endif

#if LV_USE_PROFILER && LV_USE_PROFILER_BUILTIN
 lv_profiler_builtin_config_t profiler_config;
 lv_profiler_builtin_config_init(&profiler_config);
 lv_profiler_builtin_init(&profiler_config);
#endif

 lv_os_init();

 lv_timer_core_init();

 lv_fs_init();

 lv_layout_init();

 lv_anim_core_init();

 lv_group_init();

#if LV_USE_FREETYPE
 /* Since the drawing unit needs to register the freetype event,
 * initialize the freetype module first
 */
 lv_freetype_init(LV_FREETYPE_CACHE_FT_GLYPH_CNT);
#endif

 lv_draw_init();

#if LV_USE_DRAW_SW
 lv_draw_sw_init();
#endif

#if LV_USE_NEMA_GFX
 lv_draw_nema_gfx_init();
#endif

#if LV_USE_DRAW_VGLITE
 lv_draw_vglite_init();
#endif

#if LV_USE_PXP
#if LV_USE_DRAW_PXP || LV_USE_ROTATE_PXP
 lv_draw_pxp_init();
#endif
#endif

#if LV_USE_DRAW_G2D
 lv_draw_g2d_init();
#endif

#if LV_USE_DRAW_DAVE2D
 lv_draw_dave2d_init();
#endif

#if LV_USE_DRAW_SDL
 lv_draw_sdl_init();
#endif

#if LV_USE_DRAW_DMA2D
 lv_draw_dma2d_init();
#endif

#if LV_USE_DRAW_OPENGLES
 lv_draw_opengles_init();
#endif

#if LV_USE_WINDOWS
 lv_windows_platform_init();
#endif

#if LV_USE_UEFI
 lv_uefi_platform_init();
#endif

 lv_obj_style_init();

 /*Initialize the screen refresh system*/
 lv_refr_init();

#if LV_USE_SYSMON
 lv_sysmon_builtin_init();
#endif

 lv_image_decoder_init(LV_CACHE_DEF_SIZE, LV_IMAGE_HEADER_CACHE_DEF_CNT);
 lv_bin_decoder_init(); /*LVGL built-in binary image decoder*/

#if LV_USE_DRAW_VG_LITE
 lv_draw_vg_lite_init();
#endif

 /*Test if the IDE has UTF-8 encoding*/
 const char * txt = "Á";

 uint8_t * txt_u8 = (uint8_t *)txt;
 if(txt_u8[0] != 0xc3 || txt_u8[1] != 0x81 || txt_u8[2] != 0x00) {
 LV_LOG_WARN("The strings have no UTF-8 encoding. Non-ASCII characters won't be displayed.");
 }

 uint32_t endianness_test = 0x11223344;
 uint8_t * endianness_test_p = (uint8_t *) &endianness_test;
 bool big_endian = endianness_test_p[0] == 0x11;

 if(big_endian) {
 LV_ASSERT_MSG(LV_BIG_ENDIAN_SYSTEM == 1,
 "It's a big endian system but LV_BIG_ENDIAN_SYSTEM is not enabled in lv_conf.h");
 }
 else {
 LV_ASSERT_MSG(LV_BIG_ENDIAN_SYSTEM == 0,
 "It's a little endian system but LV_BIG_ENDIAN_SYSTEM is enabled in lv_conf.h");
 }

#if LV_USE_ASSERT_MEM_INTEGRITY
 LV_LOG_WARN("Memory integrity checks are enabled via LV_USE_ASSERT_MEM_INTEGRITY which makes LVGL much slower");
#endif

#if LV_USE_ASSERT_OBJ
 LV_LOG_WARN("Object sanity checks are enabled via LV_USE_ASSERT_OBJ which makes LVGL much slower");
#endif

#if LV_USE_ASSERT_STYLE
 LV_LOG_WARN("Style sanity checks are enabled that uses more RAM");
#endif

#if LV_LOG_LEVEL == LV_LOG_LEVEL_TRACE
 LV_LOG_WARN("Log level is set to 'Trace' which makes LVGL much slower");
#endif

#if LV_USE_FS_FATFS != '\0'
 lv_fs_fatfs_init();
#endif

#if LV_USE_FS_STDIO != '\0'
 lv_fs_stdio_init();
#endif

#if LV_USE_FS_POSIX != '\0'
 lv_fs_posix_init();
#endif

#if LV_USE_FS_WIN32 != '\0'
 lv_fs_win32_init();
#endif

#if LV_USE_FS_MEMFS
 lv_fs_memfs_init();
#endif

#if LV_USE_FS_LITTLEFS
 lv_fs_littlefs_init();
#endif

#if LV_USE_FS_ARDUINO_ESP_LITTLEFS
 lv_fs_arduino_esp_littlefs_init();
#endif

#if LV_USE_FS_ARDUINO_SD
 lv_fs_arduino_sd_init();
#endif

#if LV_USE_FS_UEFI
 lv_fs_uefi_init();
#endif

#if LV_USE_LODEPNG
 lv_lodepng_init();
#endif

#if LV_USE_LIBPNG
 lv_libpng_init();
#endif

#if LV_USE_TJPGD
 lv_tjpgd_init();
#endif

#if LV_USE_LIBJPEG_TURBO
 lv_libjpeg_turbo_init();
#endif

#if LV_USE_BMP
 lv_bmp_init();
#endif

#if LV_USE_SVG
 lv_svg_decoder_init();
#endif

 /*Make FFMPEG last because the last converter will be checked first and
 *it's superior to any other */
#if LV_USE_FFMPEG
 lv_ffmpeg_init();
#endif

#if LV_USE_XML
 lv_xml_init();
#endif

 lv_initialized = true;

 LV_LOG_TRACE("finished");
}

void lv_deinit(void)
{
 /*Do nothing if already deinit*/
 if(!lv_initialized) {
 LV_LOG_WARN("lv_deinit: already deinit!");
 return;
 }

 if(lv_deinit_in_progress) return;

 lv_deinit_in_progress = true;

#if LV_USE_SYSMON
 lv_sysmon_builtin_deinit();
#endif

 lv_display_set_default(NULL);

 lv_cleanup_devices(LV_GLOBAL_DEFAULT());

#if LV_USE_EVDEV
 lv_evdev_deinit();
#endif

#if LV_USE_SPAN != 0
 lv_span_stack_deinit();
#endif

#if LV_USE_FREETYPE
 lv_freetype_uninit();
#endif

#if LV_USE_THEME_DEFAULT
 lv_theme_default_deinit();
#endif

#if LV_USE_THEME_SIMPLE
 lv_theme_simple_deinit();
#endif

#if LV_USE_THEME_MONO
 lv_theme_mono_deinit();
#endif

 lv_image_decoder_deinit();

 lv_refr_deinit();

 lv_obj_style_deinit();

#if LV_USE_UEFI
 lv_uefi_platform_deinit();
#endif

#if LV_USE_PXP
#if LV_USE_DRAW_PXP || LV_USE_ROTATE_PXP
 lv_draw_pxp_deinit();
#endif
#endif

#if LV_USE_DRAW_VGLITE
 lv_draw_vglite_deinit();
#endif

#if LV_USE_DRAW_G2D
 lv_draw_g2d_deinit();
#endif

#if LV_USE_DRAW_VG_LITE
 lv_draw_vg_lite_deinit();
#endif

#if LV_USE_DRAW_DMA2D
 lv_draw_dma2d_deinit();
#endif

#if LV_USE_DRAW_OPENGLES
 lv_draw_opengles_deinit();
#endif

#if LV_USE_DRAW_SW
 lv_draw_sw_deinit();
#endif

 lv_draw_deinit();

 lv_group_deinit();

 lv_anim_core_deinit();

 lv_layout_deinit();

 lv_fs_deinit();

 lv_timer_core_deinit();

#if LV_USE_PROFILER && LV_USE_PROFILER_BUILTIN
 lv_profiler_builtin_uninit();
#endif

#if LV_USE_OBJ_ID && LV_USE_OBJ_ID_BUILTIN
 lv_objid_builtin_destroy();
#endif

 lv_mem_deinit();

 lv_initialized = false;

 LV_LOG_INFO("lv_deinit done");

#if LV_USE_LOG
 lv_log_register_print_cb(NULL);
#endif

}

/**********************
 * STATIC FUNCTIONS
 **********************/



[TDK]

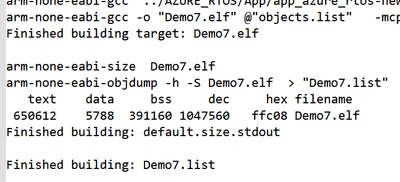

Can you copy the full contents of the Console tab from a clean build into a text file and include it here?

[matt-crc]

Hi @TDK

Funny that you suggested that... I've been trying to do that for days....  Unfortunately I can't figure out how to capture the entire console.  It scrolls past the console buffer size, so I can only get the bottom 1/3 of the project.  Is there a setting that increases the buffer size?  I see there were some warnings when compiling but I haven't been able to scroll back to see them.



BTW, I finally reduced the size of LVGL component by unconfiguring a lot of options and finally got a working executable.  I was going to run it this afternoon to see how it runs on the hardware.

[matt-crc]

This is all that the console can capture

[TDK]

There are no errors in that log file and the ELF was successfully created.



Is this issue resolved?

[matt-crc]

Hi @TDK

I always try to get it to work even with an open question... I resolved the issue by reducing the source file sizes and removing a lot of code with #ifdefs.   The full project still cannot compile, and I will send the complete project to your ticketing system later tonight.
