CUBE IDE No source available for "() at 0xfffffffe" Errors

[ark2]



I was making a project with CUBE IDE and compiling it on the board, and I got this error while compiling the project I was doing on the new board.

No source is available for "Call Signal Handler"() in 0xfffffffe.

I'm sure they're using the same CPU

I can't compile it because it's STM32 ST-LINK

I don't think there will be any problems with the code or MX settings because if I modify the code on the existing board, the project will also change well.



Even if I create a new project and add the above code, I get the same error, so I can't compile it

I want to solve this phenomenon, how do I solve it?





int main(void)
{

 /* USER CODE BEGIN 1 */

 /* USER CODE END 1 */

 /* MPU Configuration--------------------------------------------------------*/
 MPU_Config();

 /* MCU Configuration--------------------------------------------------------*/

 /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
 HAL_Init();

 /* USER CODE BEGIN Init */

 /* USER CODE END Init */

 /* Configure the system clock */
 SystemClock_Config();

 /* USER CODE BEGIN SysInit */

 /* USER CODE END SysInit */

 /* Initialize all configured peripherals */
 MX_GPIO_Init();
 /* USER CODE BEGIN 2 */

 HAL_GPIO_WritePin(GPIOK, GPIO_PIN_2, GPIO_PIN_SET);

 /* USER CODE END 2 */

 /* Infinite loop */
 /* USER CODE BEGIN WHILE */
 while (1)
 {
 /* USER CODE END WHILE */

 /* USER CODE BEGIN 3 */
 }
 /* USER CODE END 3 */
}





The same error occurs in the above simple code.

How can I fix this problem?



stm32 : STM32H743XIH6

==========================================

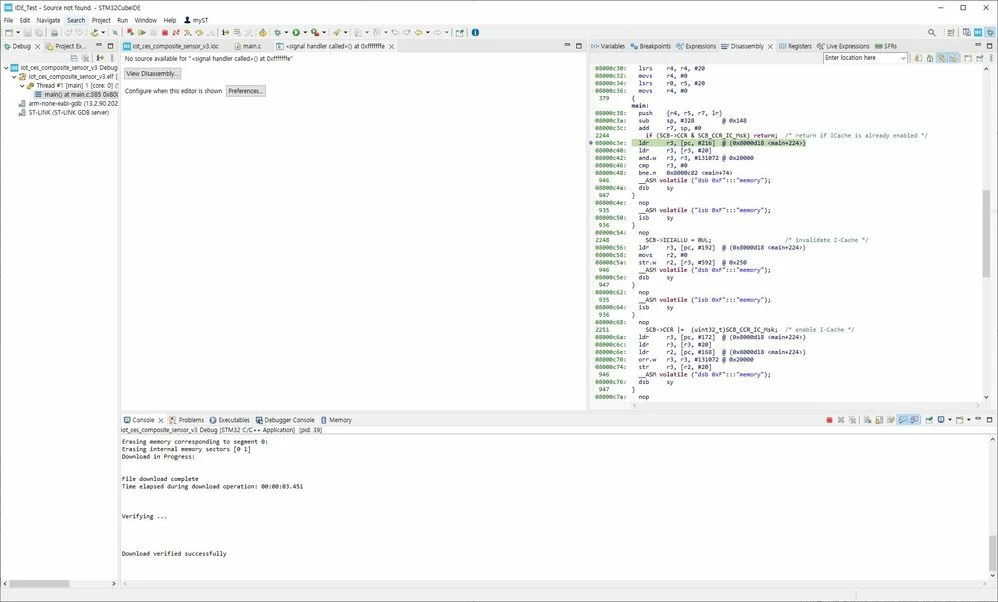

Error image

=========================================

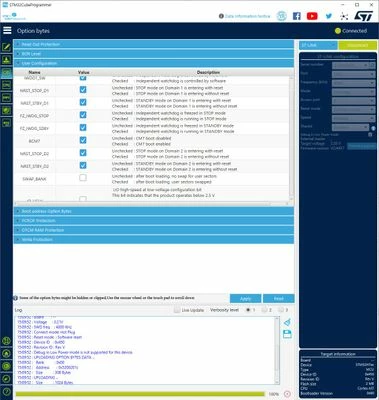

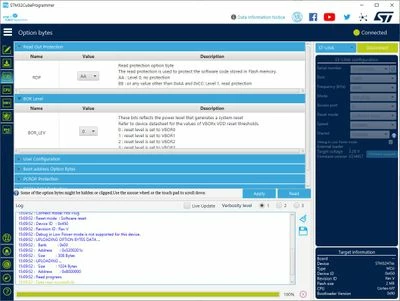

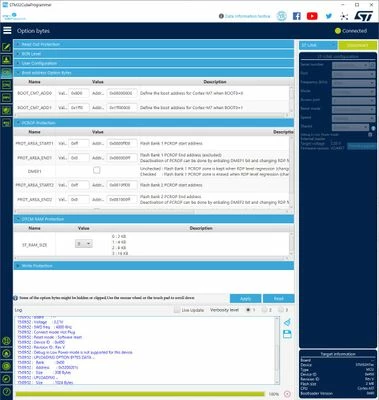

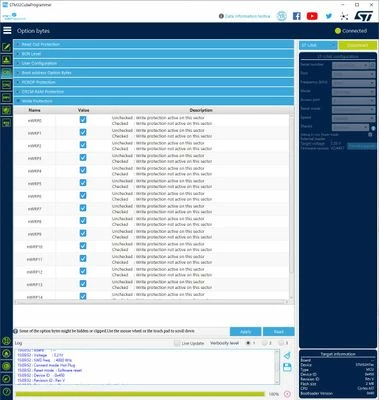

Current state













[Andrew Neil]

0xfffffffe is a "magic" address in the ARM Cortex-M architecture which indicates a core lockup; eg, a double Hardfault:

https://forum.microchip.com/s/topic/a5C3l000000UjLaEAK/t187425#:~:text=The%20magic%20PC%20value%20of%200xfffffffe%20indicates%20core%20lock%2Dup.%20This%20generally%20happens%20when%20the%20CPU%20double%2Dhardfaults.%20For%20example%2C%20a%20CPU%20hardfault%20occurs%2C%20and%20another%20fault%20occurs%20while%20trying%20to%20save%20state%20for%20the%20first%20fault%20because%20either%20the%20vector%20table%20is%20bad%2C%20or%20the%20stack%20pointer%20is%20invalid.

https://developer.arm.com/documentation/ddi0403/d/System-Level-Architecture/System-Level-Programmers--Model/ARMv7-M-exception-model/Unrecoverable-exception-cases?lang=en



---

@ark2 wrote:

I was making a project with CUBE IDE and compiling it on the board, and I got this error while compiling the project

---

Note that this is not an error that you'd get while compiling: this is a runtime error - it means your code is crashing while it's running on your board.



---

@ark2 wrote:

I can't compile it because it's STM32 ST-LINK

---

That makes no sense. What do you mean by that?



---

@ark2 wrote:



Even if I create a new project and add the above code, I get the same error, so I can't compile it

---

Again, the message has nothing to do with compiling.

Does the code build cleanly - ie, with no errors and no warnings?





[Hiikmal]

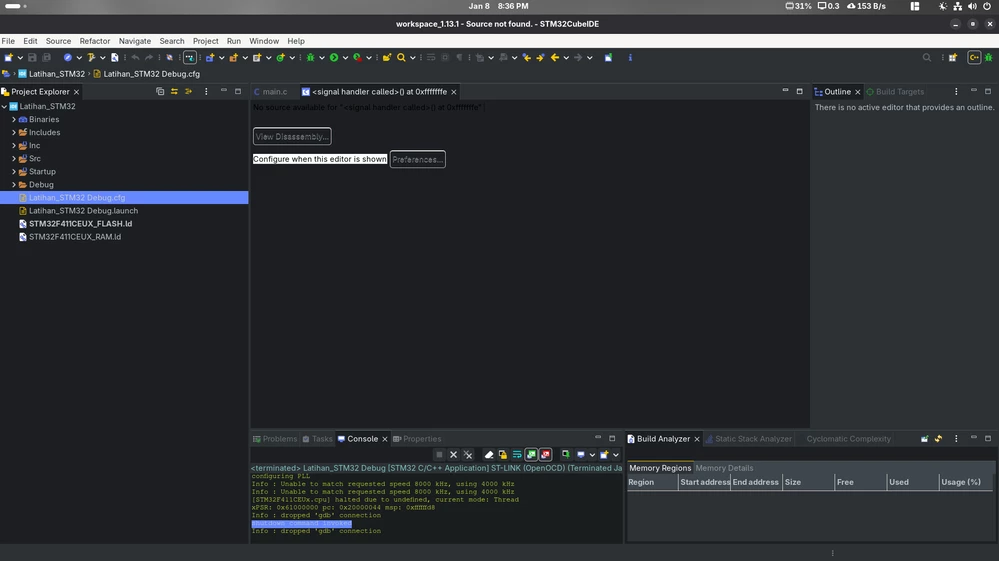

I'm experiencing the same thing.

But mine can execute the code and experience changes in my MCU, such as LED blinking, and there are no error messages at all.

Is this a problem or is that how it works?

What is this usually called?
