CubeIDE v2.0.0 does not create .ioc File

  • February 2, 2026
  • 2 replies
  • 296 views

Hi,

Today I have downloaded STM32IDE. I am trying to develop some projects with my NUCLEO F401RE. I have tried that create a new file from this way but program does not create any .ioc file. Can you help me?

Thank you.

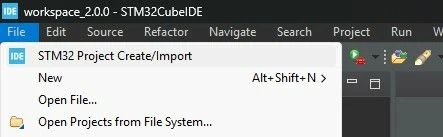

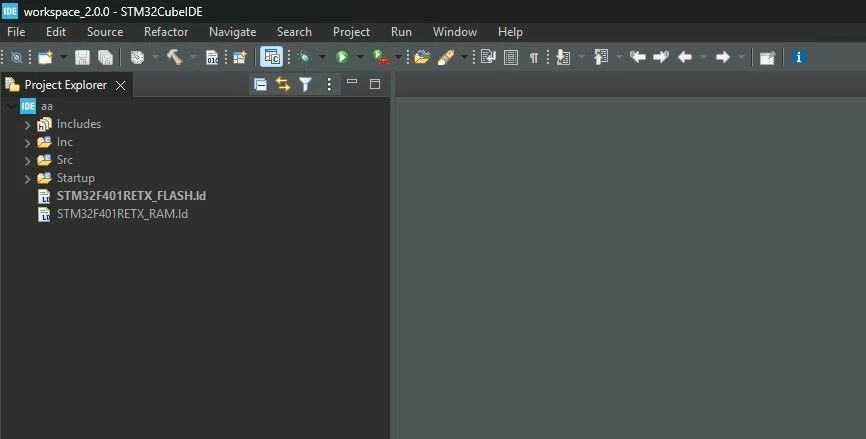

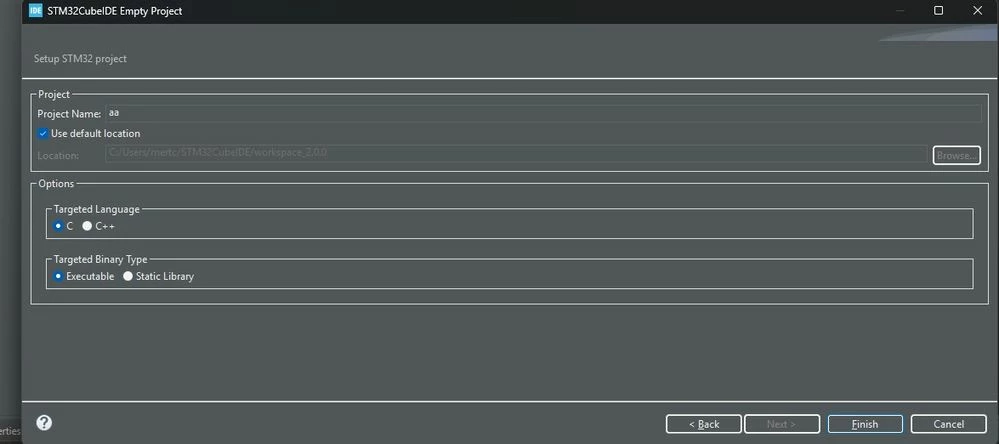

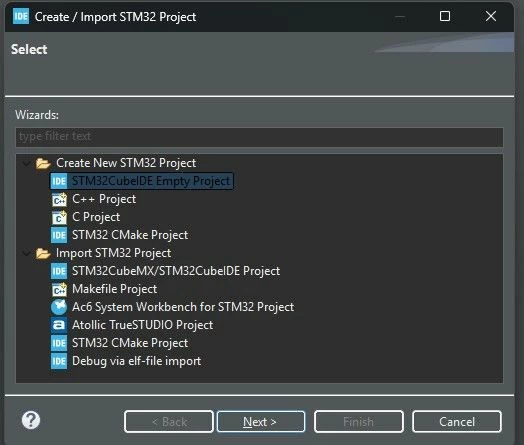

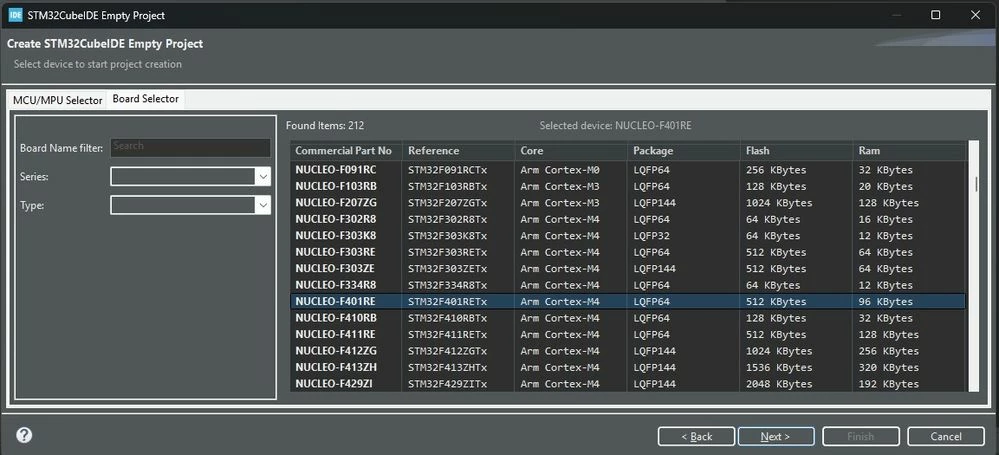

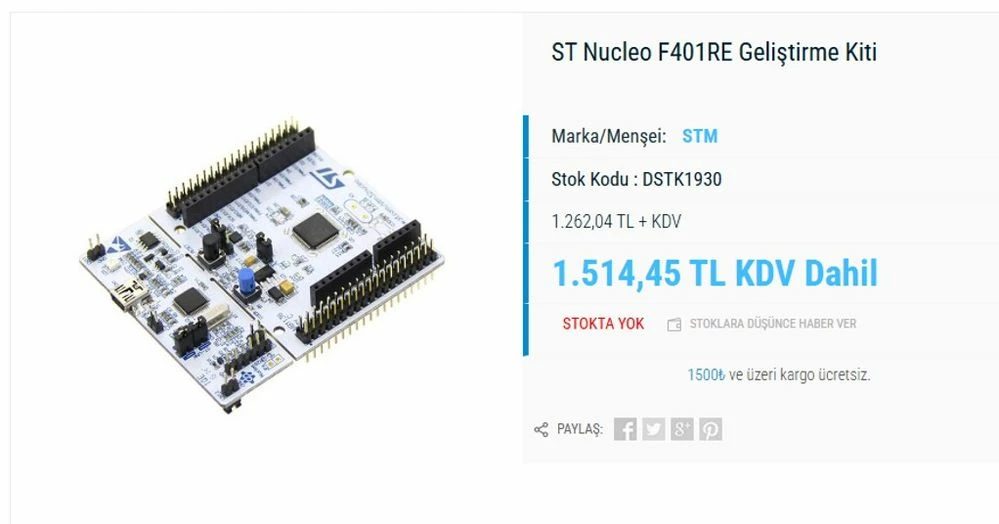

Screenshot_6.jpgScreenshot_1.jpgScreenshot_2.jpgScreenshot_3.jpgScreenshot_4.jpgScreenshot_5.jpg

Best answer by Ghofrane GSOURI

Hello @mellifluous

To download STM32CubeMX standalone please use this LINK

THX

Ghofrane



2 replies

Andrew Neil
Andrew Neil
Super User
February 2, 2026

CubeIDE v2.0.0 no longer has CubeMX integrated - you now have to use it as a separate, standalone app.

See: STM32CubeIDE 2.0.0 New workflow tutorial.

See also: STM32CubeIDE 2.0.0 released



For discussion of the rationale behind this, see:IDE Version 2.0.0 - why remove MX ?

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
    Ghofrane GSOURI
    Ghofrane GSOURIBest answer
    Technical Moderator
    February 2, 2026

    Hello @mellifluous

    To download STM32CubeMX standalone please use this LINK

    THX

    Ghofrane



    To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
