CubeMx error

[syedhashmiraza]

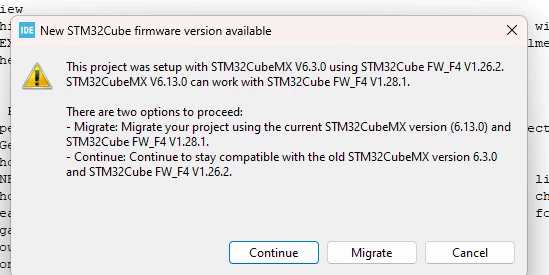

hello i downdload latest version but again this error will come when i press migrate or continue option after that iam updating my code in this code  goes to  error part. fix this problem.



[Ghofrane GSOURI]

Hello @syedhashmiraza

Could you please explain more about the error that you are facing?

THX

Ghofrane

[mƎALLEm]

Hello,

Check if V1.28.1 is available in this path: C:/Users/<user name>/STM32Cube/Repository/

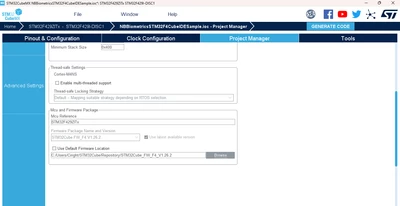

[syedhashmiraza]



[mƎALLEm]

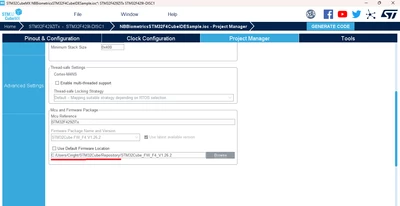

I mean check that you have STM32Cube_FW_F4_V1.28.1 folder at this drive location: C:/Users/Ciright/STM32Cube/Repository/

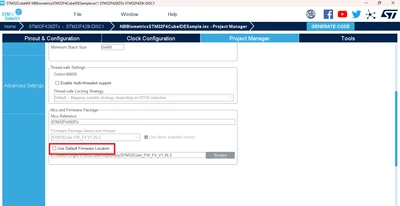

Otherwise, check the checkbox: "Use Default Firmware Location":

[mƎALLEm]

@Ghofrane GSOURI could help you on that.

[Ghofrane GSOURI]

Hello @syedhashmiraza

Let's try this:

- Close the CubeMX.

- Go to C:\Users\XXXX    and delete .stm32cubemx

- Then Reopen the CubeMX 6.13.0 load your IOC.

THX

Ghofrane

[syedhashmiraza]

hello,When I integrate UART and generate and migrate  the code, my biometric code goes into the error part, but when I don't generate the code, my code runs properly. However, I need to integrate UART into it



[mbarg.1]

This is NOT an ERROR.

It is a SWITCH between 2 options.

In xx.ioc editor,  project manager tab, check if "Use latest version" is checked.

If checked, every time you start edit an .ioc you can decide between 2 options, old version or new version

[syedhashmiraza]

hello,When  i  generate and migrate  the code, my biometric code goes into the error part, but when I don't generate the code, my code runs properly. However, I need to integrate UART into it.





[mbarg.1]

According to my experience, if you migrate and get some error, it is due to differences between different FW releases.

But if you get an error with continue it is because

A - you changed some line of FW code and system restores original version

B - you put some code outside /* USER CODE BEGIN */  and /*USER CODE END */ interval and again system deletes your code

Save a copy of all your C files with cx file suffix, than run migrate or continue, than compare (grep if you use linux) alla files an find what has changed - you will find one of two situations above.

Anyway, Marry Christmas!
