How to add Eigen library C++ to STM32CUBEIDE

[Bachir]

Hi,

I need help with instructions how I add the Eigen library C++ library to an STM32CUBE IDE project. I have created a project with no target for simplicity, using C++ as the basis language. I have downloaded the open source Eigen C++ library which supports matrix calculations. But I am having difficulties how to add it to the STM32 project.

Can someone who has used this library with STM32 Cube, help with instructions how I can add it please ?

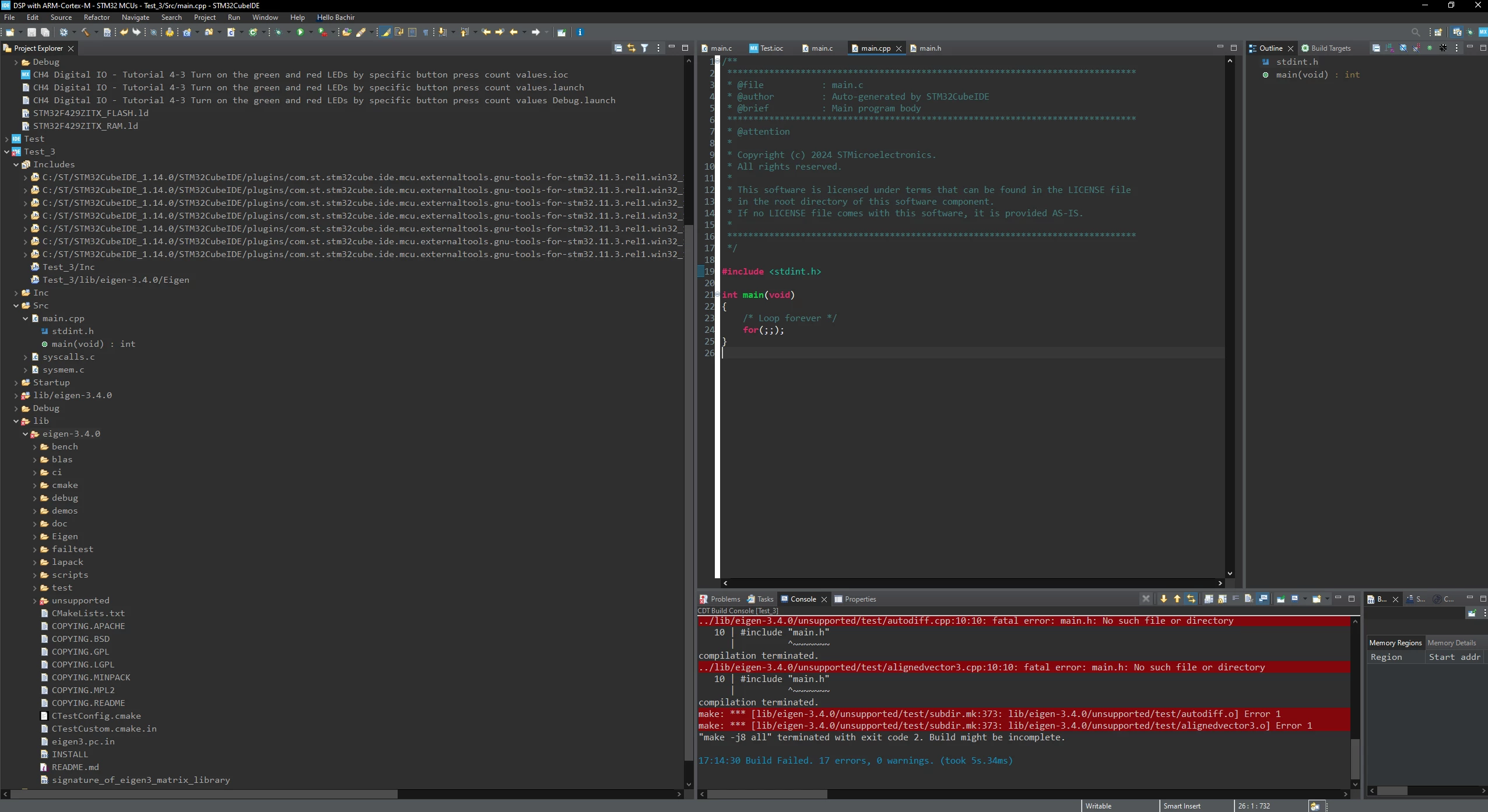

1 - I created a foder lib under my project explorer, and copied the Eigen library to this folder (as shown in the attached picture pic1)

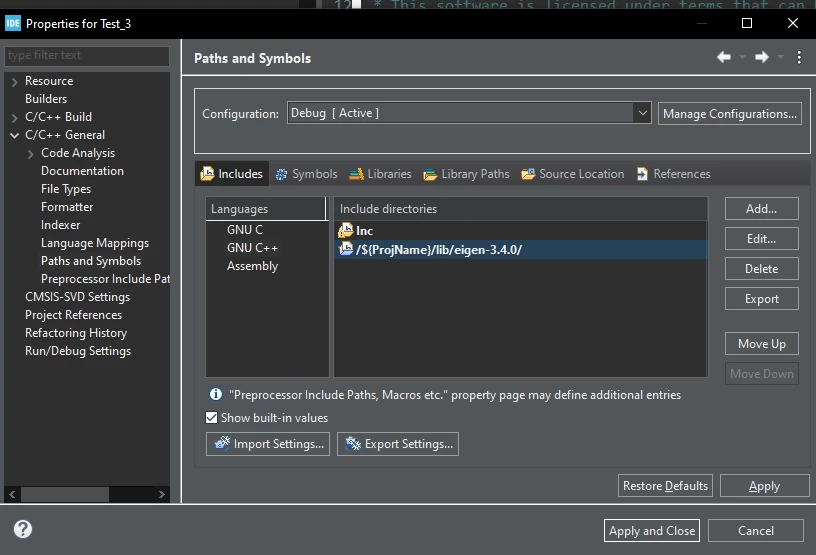

2 - I added the path to eigen lib in both the includes and source locations in the paths and symbols. (pic2)

When I build the main.cpp as it is first, I get a lot of errors.

Can Anybody help by giving instructions how i add this library?



I am attaching my project to this post too.





[Rim LANDOLSI]

Hello @Bachir  and welcome to the community,

This knowledge base article may help you link an external library to the STM32CubeIDE project.

Hope this helps you!

Thanks,
Rim.

[mikewhooo]

I hope this message finds you well. I wanted to follow up and ask if you were able to resolve the issue you mentioned regarding the Eigen library. I am encountering the same problem, where it keeps showing an error about a missing main.h file.

Any help or insights you could provide would be greatly appreciated!

[Pavel A.]

Looks like you include some test programs into the library and these programs have their own main. You don't want these test modules in the library.



[mikewhooo]

Thank you all, I have resolved the C/C++ programming issue. To use Eigen, simply copy the Eigen folder into your project and include `<Eigen>` to use it. When creating a new `.cpp` file, you need to rename `main.c` to `main.cpp`, and all other `.c` files you wrote should also be renamed to `.cpp`.
