How to enter Pinout View

[VasileiosChristianidis]

I made a new project by importing an .ioc file.

When the project opened/created, I was introduced into pinout view of the MCU.

While I was there, the software (Stm32CubeIDE) got updated, asked me to restart to finish the update.

I accept the restart.

After the restart, I open my project

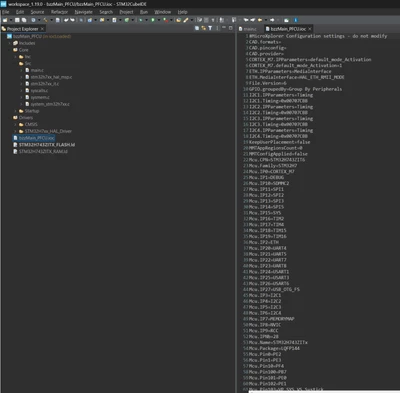

If I double click my .ioc file, it just opens the file with txt editor:

I do not know how to enter pinout view again.

Obviously, I have tried looking on all the tabs/options, right clicking everywhere. It should be something easy, I just missed it.

STM32CubeIDE

Version: 2.0.0
Build: 26820_20251114_1348 (UTC)

(C) 2025 STMicroelectronics ALL RIGHTS RESERVED



[Gyessine]

hello @VasileiosChristianidis  and welcome to ST community
I see that you are using our new STM32CubeIDE

On the STM32CubIDE V2.0.0, the STM32CubeMX plug-in has been removed. So, the .ioc file need to be opened by STM32CubeMX.

Best Regards.
Gyessine

[Andrew Neil]

---

@VasileiosChristianidis wrote:

the software (Stm32CubeIDE) got updated

---

CubeIDE v2.0.0 no longer has the CubeMX functionality integrated:

https://community.st.com/t5/stm32cubeide-mcus/cubeide-2-0-does-not-open-ioc-files/m-p/857301/highlight/true#M39483

You will have to use the separate, standalone CubeMX application:

https://www.st.com/en/development-tools/stm32cubemx.html



PS:

See this post (by @TDK ) on how to start an external editor from within the IDE.
