How to open ioc file inside stm32cubeide?

[snkparty1]

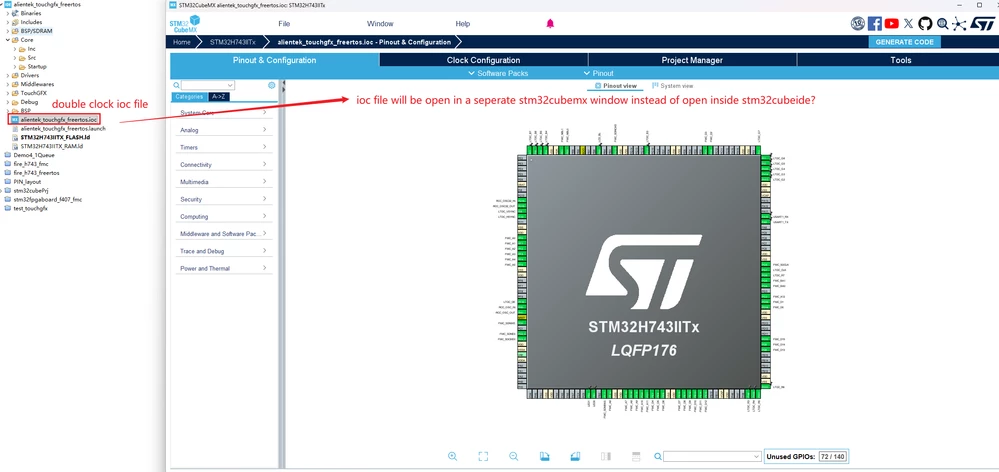

I do not know what happened. If I double-click ioc file, it used to open inside CubeIDE. But now it will open inside another separated cubemx window. I may have changed some settings by mistake.

How to change the settings back so I can open ioc file inside CubeIDE?

[mfgkw]

Did you update to CubeIDE 2.0?

[snkparty1]

Yes, now I knew the  reason.

[Issamos]

On the STM32CubIDE V2.0.0, the STM32CubeMX plug-in has been removed. So, the .ioc file is opened out of the STM32CubeIDE on the standalone version of the STM32CubeMX.

Best Regards.

II

[Proxi]

Is there any chance this functionality will be added agian in the future?

I found it pretty useful.



Can users "re-add" it via plug ins manually? Or are there some issues with newer versions now?

[unsigned_char_array]

---

@Proxi wrote:

Is there any chance this functionality will be added agian in the future?

I found it pretty useful.

---



ST gave clear motivation:
https://community.st.com/t5/stm32cubeide-mcus/stm32cubeide-2-0-release-early-heads-up/td-p/810967

---

integration leads to heavy/poor performance, stability issues across OSes and monolithic updates

Updateability: Offering the possibility to use any version of STM32CubeIDE with any version of STM32CubeMX. Separating STM32CubeMX and STM32CubeIDE allows developers to update each tool independently, lowering risks and increasing flexibility.

---



For me having 2 dedicated tools has an advantage. I have 2 screens or an ultrawide screen and I used MX and IDE side by side. It also helps separating the workflow of configuring hardware and writing application code.

[snkparty1]

Understood. I have already updated to STM32CubIDE V2.0.0. and this is the reason. Thanks.
