How to use DSP libraries (e.g. arm_math.h) in STM32cubeIDE

[baby_chicken]

Hello All,

I wanted to copy two files from the STM32Cube directory to use arm_math.h, but those files are nowhere to be found.



・STM32Cube\Repository\STM32Cube_FW_F4_Vxxxx\Drivers\CMSIS\Lib\ARM\arm_cortexM4lf_math.lib
・STM32Cube\Repository\STM32Cube_FW_F4_Vxxxx\Drivers\CMSIS\Lib\GCC\libarm_cortexM4lf_math.a



What should we do when these two are not available?



best regards.



STM32F407vgt6,cubeIDE Version: 1.14.1,CMSIS Version5.9.0



[Andrew Neil]

https://community.st.com/t5/stm32-mcus/how-to-integrate-cmsis-dsp-libraries-on-a-stm32-project/ta-p/666790

https://community.st.com/t5/stm32-mcus/configuring-dsp-libraries-on-stm32cubeide/ta-p/49637?search-action-id=30050020927&search-result-uid=49637



[baby_chicken]

@Andrew Neil ,Thank you for your response.



I have done all of the above and still get an error. What should I do?



error: arm_math.h: No such file or directory



best regards.

[Andrew Neil]

---

@baby_chicken wrote:

error: arm_math.h: No such file or directory

---

So have you checked if that file does actually exist somewhere - anywhere - in your project?

Clearly, if it doesn't exist then the compiler is correct in saying, "no such file"!

If it does exist, then is it in a place where your project is configured to find it? ie, is it somewhere as defined in your Include Paths?

[KDJEM.1]

Hello @baby_chicken ,



If you want to use 5.8.0 version of CMSIS or higher, I advise you to follow the steps shared in this FAQ: How to integrate CMSIS-DSP libraries on a STM32 project.

Please let me know if the issue is solved or not?



Thank you.

Kaouthar

[baby_chicken]

@KDJEM.1  ,Thank you for your response



When I try this method, I get an error “error: arm_math.h: No such file or directory”.



What should I do?

best regards.



[KDJEM.1]

Hi @baby_chicken ,

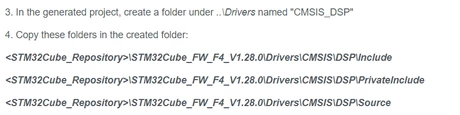

Are you copy the Include Drivers from STM32Cube_FW_F4_V1.28.0\CMSIS\DSP\Include to your generate project?



For that please, ensure that steps 3, 4 and 7 shared in the FAQ are followed properly.



Thank you.

Kaouthar



[baby_chicken]

@KDJEM.1  ,Thank you for your response.

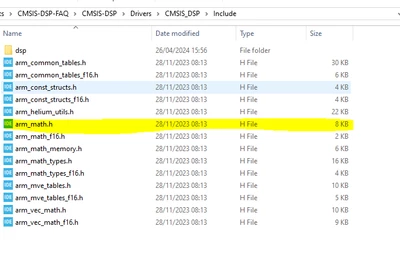

I just checked and copied it to the project generated from STM32Cube_FW_F4_V1.28.0\CMSIS\DSP\Include.



best regards.

[KDJEM.1]

Hi @baby_chicken ,



Are your issue is solved or not?

If not could you please share your project?



Thank you.

Kaouthar

[baby_chicken]

@KDJEM.1  ,Thank you for your response.



The problem has not yet been resolved.
It is a little difficult to give you the entire project as it is because of all the things involved. We are really sorry.



best regards.

[Andrew Neil]

---

@baby_chicken wrote:

It is a little difficult to give you the entire project as it is because of all the things involved. We are really sorry.

---

Create a minimum but complete project which demonstrates the issue, and share that.

In doing so, you might actually get a working project - which you could then compare to your real project to see what's different ...

[KDJEM.1]

Hi @baby_chicken ,



Sure, you are always welcome :).

If you want you can send a minimum project by Private Message.



Thank you.

Kaouthar

[baby_chicken]

Thank you so much @KDJEM.1 .

[KDJEM.1]

Hi @baby_chicken ,



Could you please add the ../Drivers/CMSIS_DSP/Include path and the ../Drivers/CMSIS_DSP/PrivateInclude path to "MCU G++ Compiler" "Include paths"



Thank you;

Kaouthar
