Not possible to Run/Debug on the evaluation board STM32F446RE Nucleo-64

[Refused_HC]

Hello all,

I have created a project with STM32CubeMx based on this evaluation board:

I generate the source code, and I  can compile it correctly from STM32CubeIDE.

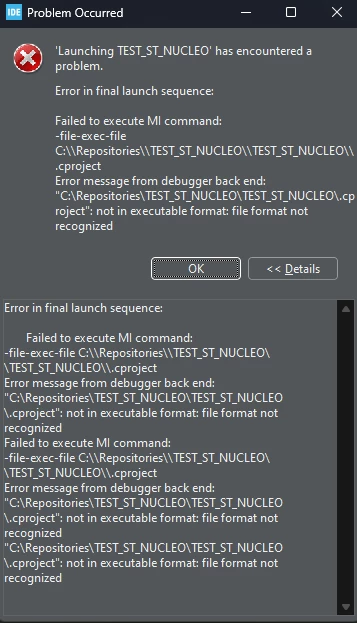

The problem is when I try to Run or Debug it, I get this message:

If anyone can help me I would appreciate it.

Much thanks in advance.





[Ghofrane GSOURI]

Hello @Refused_HC

Let's try to clean and rebuild your project by following those steps:

In STM32CubeIDE : right click on your project and then clean project as shown below

Then rebuild your project , confirm that the build generates an .elf file

Finally launch your debug session.

THX

Ghofrane

[Refused_HC]

Thanks Ghofrane, but cleaning the project I still get the same error.

[Ghofrane GSOURI]

Hello @Refused_HC

Could you please provide your IOC so that I can test it?

THX

Ghofrane



[Andrew Neil]

It looks like your Debug Configuration is wrong - it is trying to use .cproject as the executable.

The executable name should be <project-name>.elf



PS:

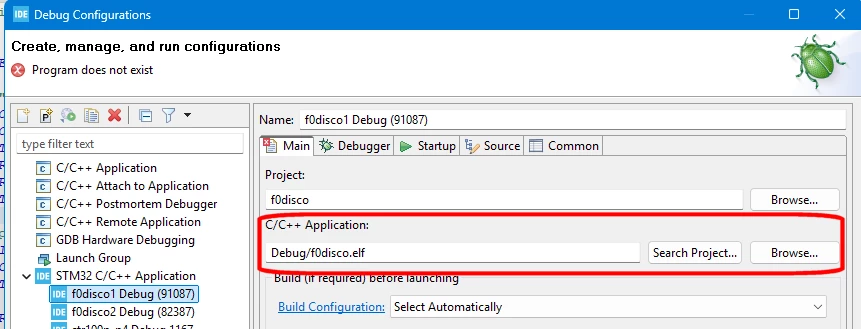

Like this:
