on H7A3 no SAI configuration in Cube - Bug report

[AScha.3]

Hi,

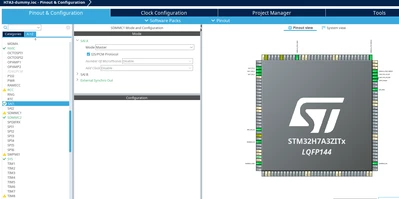

big surprise: when activating SAI on H7A3ZIT , no configuration possible : ...nothing to configure...

+ on IDE 1.18.0 , with newest Cube package: 1.12.1

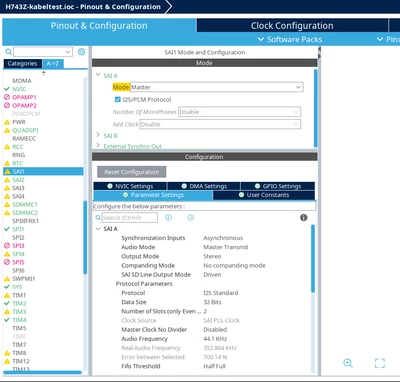

+ on H743ZIT , looks as it should:

... V1.12.2  coming then ?

- or "manual setting needed ? on H7A3 it makes then: (ignoring the warning about SAI not correct set)

static void MX_SAI1_Init(void)
{

 /* USER CODE BEGIN SAI1_Init 0 */

 /* USER CODE END SAI1_Init 0 */

 /* USER CODE BEGIN SAI1_Init 1 */

 /* USER CODE END SAI1_Init 1 */
 hsai_BlockA1.Instance = SAI1_Block_A;
 hsai_BlockA1.Init.AudioMode = SAI_MODEMASTER_TX;
 hsai_BlockA1.Init.Synchro = SAI_ASYNCHRONOUS;
 hsai_BlockA1.Init.OutputDrive = SAI_OUTPUTDRIVE_DISABLE;
 hsai_BlockA1.Init.NoDivider = SAI_MASTERDIVIDER_ENABLE;
 hsai_BlockA1.Init.FIFOThreshold = SAI_FIFOTHRESHOLD_EMPTY;
 hsai_BlockA1.Init.AudioFrequency = SAI_AUDIO_FREQUENCY_192K;
 hsai_BlockA1.Init.SynchroExt = SAI_SYNCEXT_DISABLE;
 hsai_BlockA1.Init.MonoStereoMode = SAI_STEREOMODE;
 hsai_BlockA1.Init.CompandingMode = SAI_NOCOMPANDING;
 hsai_BlockA1.Init.TriState = SAI_OUTPUT_NOTRELEASED;
 if (HAL_SAI_InitProtocol(&hsai_BlockA1, SAI_I2S_STANDARD, SAI_PROTOCOL_DATASIZE_16BIT, 2) != HAL_OK)
 {
 Error_Handler();
 }
 /* USER CODE BEGIN SAI1_Init 2 */

 /* USER CODE END SAI1_Init 2 */

}



[KDJEM.1]

Hello @AScha.3;



Similar issue is reported here.

This issue has been raised internally to dev team for fix.

Internal ticket number: 204851 (This is an internal tracking number and is not accessible or usable by customers).



Thank you.

Kaouthar

[AScha.3]

Hi, @KDJEM.1  ,

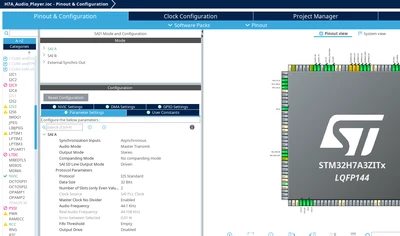

similar ...but new. Or new old recovered, because on last Cube 1.11.2 :

it was ok, at least SAI :

--- but SWV not working here at all !

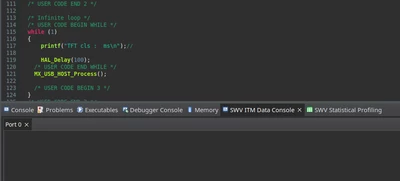

here sending on SWO in main loop - nothing comes to console, no profiling also:

btw on H743ZIT its working , profiling also.

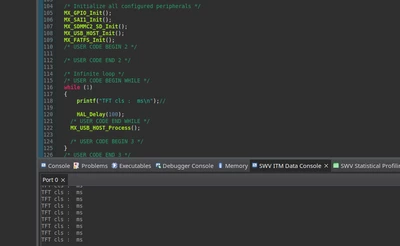

ed with recent Cube/HAL v1.12.1 , after maybe 30 times (!!!!) click on start trace SWV, its working:

So this is the well known state of SWV on STM's IDE . fine.

[KDJEM.1]

Hello @AScha.3;



For the missing SAI configuration, this is a new issue detcted after upgrading to STM32CubeMX 6.14.0 and/or to STM32CubeIDE 1.18.0 versions.

I apologize for any inconvenience. I come back to you when the issue is fixed.



Thank you.

Kaouthar

[KDJEM.1]

Hello @AScha.3 ;

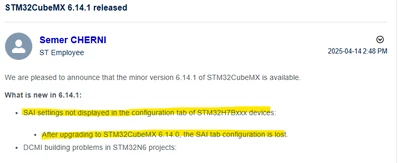

The SAI tab configuration issue is fixed as mentioned in STM32CubeMx 6.14.1 released.



Could you please try to use the latest STM32CubeMX 6.14.1 version and/or STM32CubeIDE1.18.1 version and let me know if the issue is solved or not?

Thank you.

Kaouthar

[alfsch]

Hello @KDJEM.1  ,

just because i cannot login as @AScha.3  , with my private login here ...

Now i updated to IDE 1.18.1 , and voila ... SAI configuration on H3A seems ok.

Code generated, compiler : no errors.
