Project explorer shows files in two places

[pde14qro]

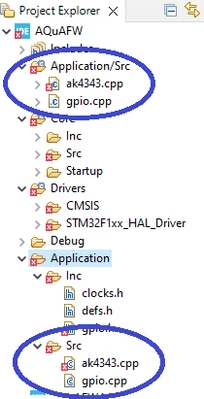

in an STM32CubeIDE V1.17.0 project I add folders Application and Application/Src. I add Application/Src to the list of  source locations. I add a couple of new C++ template source files to the Application/Src folder. These compile OK.

But why does the IDE show these files in two places and how can I stop or hide this behaviour?



[Pavel A.]

>  I add Application/Src to the list of  source locations.

It looks like CubeIDE finds these files without adding to the list of  source locations. Try to remove it, then press F5 (refresh).



[pde14qro]

Thanks for suggestion. This does indeed remove the duplicates.

Unfortunately source files in Application/Src then no longer build. Although the right-click commands "Build selected file" and/or "Build project" are still available they do precisely nothing on files that are in a folder that is not in the list of source locations.

In fact if you right-click on such a file and choose "Properties" you find that "Exclude resource from build" is both checked and disabled!
