Project imported from TouchGFX but not able to debug for board STM32H745I - DISCO

[Chaitanya1997]

Board : STM32H745I - DISCO

Cubeide : v.1.13.2
TouchGFX : v4.22.1 Designer

STM32H745I - DISCO as it is dual core m4 and m7
1st i did build and debugging for m4 processor. It is successful.

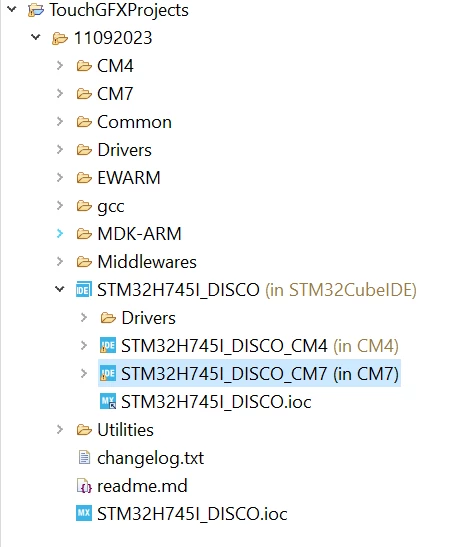

2nly done with building for m7 processor.It is successful
But while debugging the m7 i am facing following issue ??????

@Jorge Jacome

@Phillip Wolstencroft



please help me with this .



Error in final launch sequence:



Failed to execute MI command:

load C:\\TouchGFXProjects\\11092023\\STM32CubeIDE\\CM7\\Debug\\STM32H745I_DISCO_CM7.elf



Error message from debugger back end:

Load failed

Failed to execute MI command:

load C:\\TouchGFXProjects\\11092023\\STM32CubeIDE\\CM7\\Debug\\STM32H745I_DISCO_CM7.elf



Error message from debugger back end:

Load failed

Failed to execute MI command:

load C:\\TouchGFXProjects\\11092023\\STM32CubeIDE\\CM7\\Debug\\STM32H745I_DISCO_CM7.elf



Error message from debugger back end:

Load failed

Load failed

[Joe WILLIAMS]

Hello Chaitanya1997



Your case has been routed and your question will be further addressed through the online support system.



Kind Regards

Joe WILLIAMS

STMicro Support

[RafaelS]

Hello @Joe WILLIAMS

I have the same issue than Chaitanya.

I have created a simple TouchGFX project for the board STM32H745I-DISCO. I can run the project from TouchGFX 4.25.0. I have imported the project to CubeIDE 1.17.0. I can compile both CM4 and CM7, I can run CM4 but when runing or debbuging CM7 the error Failed to execute MI command appears.

Please, do you know a solution for that?



Thank you.

[RafaelS]

Hello,

in my case the Mi error was because I needed to load an external loadar beacuse de QUADSPI flash.

In Run configurations -> Debugger.

Add external debugger -> C:\Program Files\STMicroelectronics\STM32Cube\STM32CubeProgrammer\bin\ExternalLoader\MT25TL01G_STM32H745I-DISCO.stldr

Regards.
