STM32CubeIDE 1.17.0 released

[Semer CHERNI]

We are pleased to announce to you that the release 1.17.0 of STM32CubeIDE is available.

What is new in 1.17.0:

• Microcontrollers, microprocessors, and board lists aligned with STM32CubeMX:
  • Added the support for the STM32N6 series
  • Added the support for the STM32U3 series.
  • Added the support for the STM32WL3x line
  • Added the support for the STM32MP23xx microprocessors
  • Added the support for the STM32MP25xx microprocessors in a TFBGA361 16 mm × 16 mm package
  • Added the support for new microcontrollers in the STM32C0 series and related Nucleo boards (NUCLEO-C051C8 and NUCLEO-C092RC)
  • Added the support for new microcontrollers in the STM32G4 series
  • Added the support for new microcontrollers in the STM32WBA series and the related B-WBA5M-WPAN board
• Simplified user authentication interface
• Added support for debug authentication with password for the STM32N6 series.
• Improved support of OpenSTLinux plugin to be version agnostic
• Enabled the installation of both STM32MP1 and STM32MP2 flavors of OpenSTLinux plugins within the same STM32CubeIDE instance.
• Added support for flashing the .bin file during debugging.

Main fixed issues in 1.17.0:

Refer to the STM32 microcontroller wiki at:
wiki.st.com/stm32mcu/wiki/Category:STM32CubeIDE_errata

Known problems and limitations in 1.17.0:

Refer to the STM32 microcontroller wiki at:
wiki.st.com/stm32mcu/wiki/Category:STM32CubeIDE_errata

How to get STM32CubeIDE 1.17.0:

• Under this link
• Or update your current installation of STM32CubeIDE using: Help > Check for updates (The in-tool update does not allow updating the drivers and ST-LINK server tool. Full installation is required for this to be done).

[padawan]

Hi STM,

you fixed this asap .....not.

https://community.st.com/t5/stm32cubeide-mcus/stm32cubeide-1-14-0-gt-old-issue/m-p/612850

or

https://community.st.com/t5/stm32cubeide-mcus/jumping-to-random-file-after-pressing-run-button/td-p/246693/page/12



This is a longstanding bug (over 4 years). and again:

Opening an internal ticket is not a solution, it is poor.

padawan

[Andrew Neil]

---

@padawan wrote:

Opening an internal ticket is not a solution

---

It isn't even mentioned in the 'Known Issues'.

[Andrew Neil]

---

@Semer CHERNI wrote:

Known problems and limitations in 1.17.0:

Refer to the STM32 microcontroller wiki at:
wiki.st.com/stm32mcu/wiki/Category:STM32CubeIDE_errata.

---

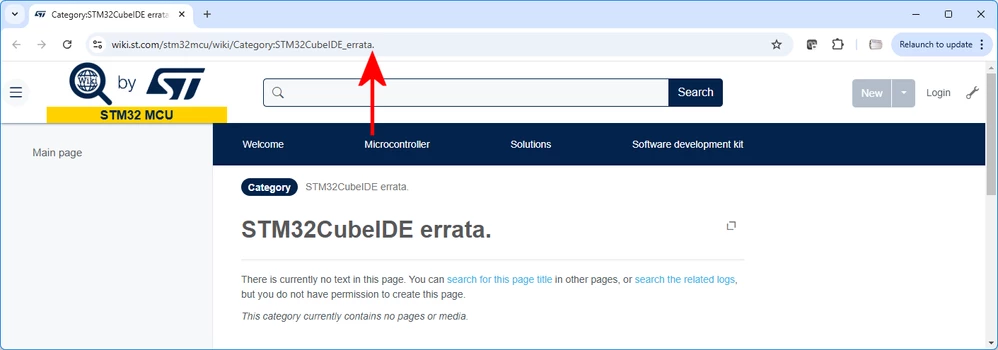

That link doesn't work:

There's a spurious full stop on the end.

The previous link to the same page is OK.

[christelle burguera]

hi Andrew,



The extra character in the url was suppressed.

Thank you for telling us



[dirtcooker]

myST -> Login does not work properly on Linux Mint (ubuntu 22 based). I needed to work on some stm32 code pronto today, have a new machine so naturally I downloaded the latest and installed it. Big mistake. It forced me to login repeatedly then promptly forgot, went to myST -> Login and entered my account, then tried to download packages from Help | Manage Embedded Software without luck. cube finder was unable to download the packages too. Finally, I uninstalled 1.17 then reinstalled 1.12. Fortunately, I had a copy of the installer, since it is gone from st.com

Please get rid of this login ***. I have wasted hours. I will not recommend stm32 for future projects if this *** continues. It's prob too late to change for this project, but fortunately 1.12 still works OK

[rqggomes]

STM32WB07CC Programming Error on Linux due to Case Sensitivity in Memory Definition File Name

Dear STMicroelectronics,

I am writing to report an error I encountered while trying to program an STM32WB07xx microcontroller using STM32CubeIDE 1.17.0 on a 64-bit Linux system.

Problem:

When attempting to program the device, the following error message is displayed in the log:

Warning: No flash region defined for device id 0x1e

Steps to Reproduce:

1. Create a new project for STM32WB07xx in STM32CubeIDE.
2. Configure the project and generate the code.
3. Attempt to program the microcontroller.

Cause:

The issue is related to the case sensitivity of the Linux file system. STM32CubeIDE (or a tool it uses) is looking for the memory definition file named "0x1e.stldr", but the actual file on the file system is named "0x1E.stldr".

Solution:

Renaming the file "0x1E.stldr" to "0x1e.stldr" resolves the problem.

Suggested Improvement:

I suggest that STMicroelectronics implement a solution in STM32CubeIDE to handle this case sensitivity difference on Linux systems. For example, the IDE could ignore capitalization when searching for files, or offer a configuration option to disable case sensitivity.

Thank you for your attention to this matter. I hope this report is helpful for improving STM32CubeIDE.

Sincerely,
