STM32CubeIDE 1.18.1: Debug a simple program on Nucleo-H563ZI

[gh_rcl]

Hi,

I try to debug a very simple program on a nucleo H563-ZI dev board.

When i try to run the debugger, the program is well loaded into the flash.

The debug session window displays the code below:



Reset_Handler:

ldr r0, =_estack

mov sp, r0 /* set stack pointer */

/* Call the clock system initialization function.*/

bl SystemInit



When i try to start the debug (step by step, or by clicking to the "play" button), it loops

on Reset_Handler.



If i press the stop button, the program starts and the led blinks.



I was wondering if someone had already seen such a behaviour.
Is the ST-LINK GDB server is well supported ?

Thanks in advance







[AScha.3]

Hi,

>I was wondering if someone had already seen such a behaviour.

not me.

But i always use connect : software reset - try it.

And you didnt change anything in debug/run settings ?

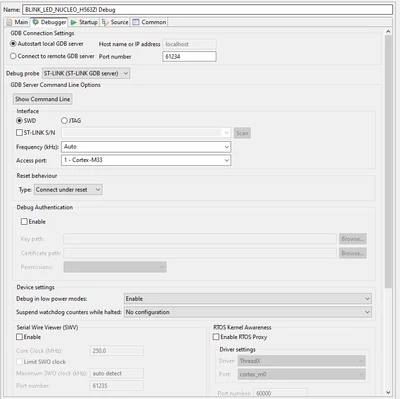

here:



[gh_rcl]

Thanks for your feedback.

After upgrading STM32CubeIDE and CubeMX it is better at a first glance.
