STM32CubeIDE 1.19.0 Problem migrating OCTOSPI2 (STM32H730) from 1.18.1

[MHoll.2]

I have a ioc file created with Version 1.18.1, that enables only the OCTOSPI2 (and some RCC and clock settings).

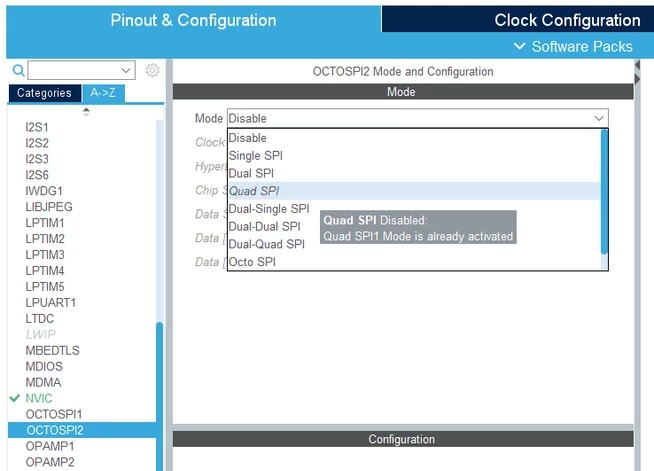

Importing this file (see attachmend) the OCTOSPI2 gets disabled, further more it is non longer possibile to re-enable it as QUAD-SPI!

If added with out migration the IOC it is working as before.

[Mahmoud Ben Romdhane]

Hello @MHoll.2 ,



First let me thank you for posting.

Your request is under investigation, and I will get back to you ASAP.



Thanks.

Mahmoud

[Mahmoud Ben Romdhane]

Hello @MHoll.2 ,



Thank you for bringing this issue to our attention.

The issue is reported to the dedicated team under an internal ticket ( Ticket Number: 213708 ).



Thanks.

Mahmoud

[Comet_SL9]

Hello,



I've got the same issue here with an STM32H7A3. I need to enable the Quad configuration because otherwise proper codegen with FileX/LevelX will not work.



Any idea when it will be fixed?



[MHoll.2]

I decided to stay on the version 1.18.1 for the momento.



[samdorey]

I am having the same issue with a fresh STM32H23VETx project (CubeMX 6.15.0):

[Mahmoud Ben Romdhane]

Hello @samdorey @MHoll.2 @Comet_SL9 ,



I will keep you informed when this issue is fixed.



Thanks.

Mahmoud

[pioneertop]

Hi @Mahmoud Ben Romdhane ,

Has this issue been resolved. I am trying to use the quadspi in my project.

Thanks

[Andrew Neil]

Related: H723 - CubeMX v6.15 cannot utilize the Quad SPI function of OCTOSPI.

[sigkukla]

Also facing this issue with STM32CubeIDE 1.19.0 and am wondering if there's an update on this. I'd like to be able to use CubeMX code generation for this as opposed to manually configuring it. If not, did any of you find workarounds?

[MHoll.2]

The problem seems to be resolved in STM32CubeMX 6.16.0 (together with STM32CubeIDE 2.0.2).
