STM32cubeide

[Vignesh_V]

Hi friends,

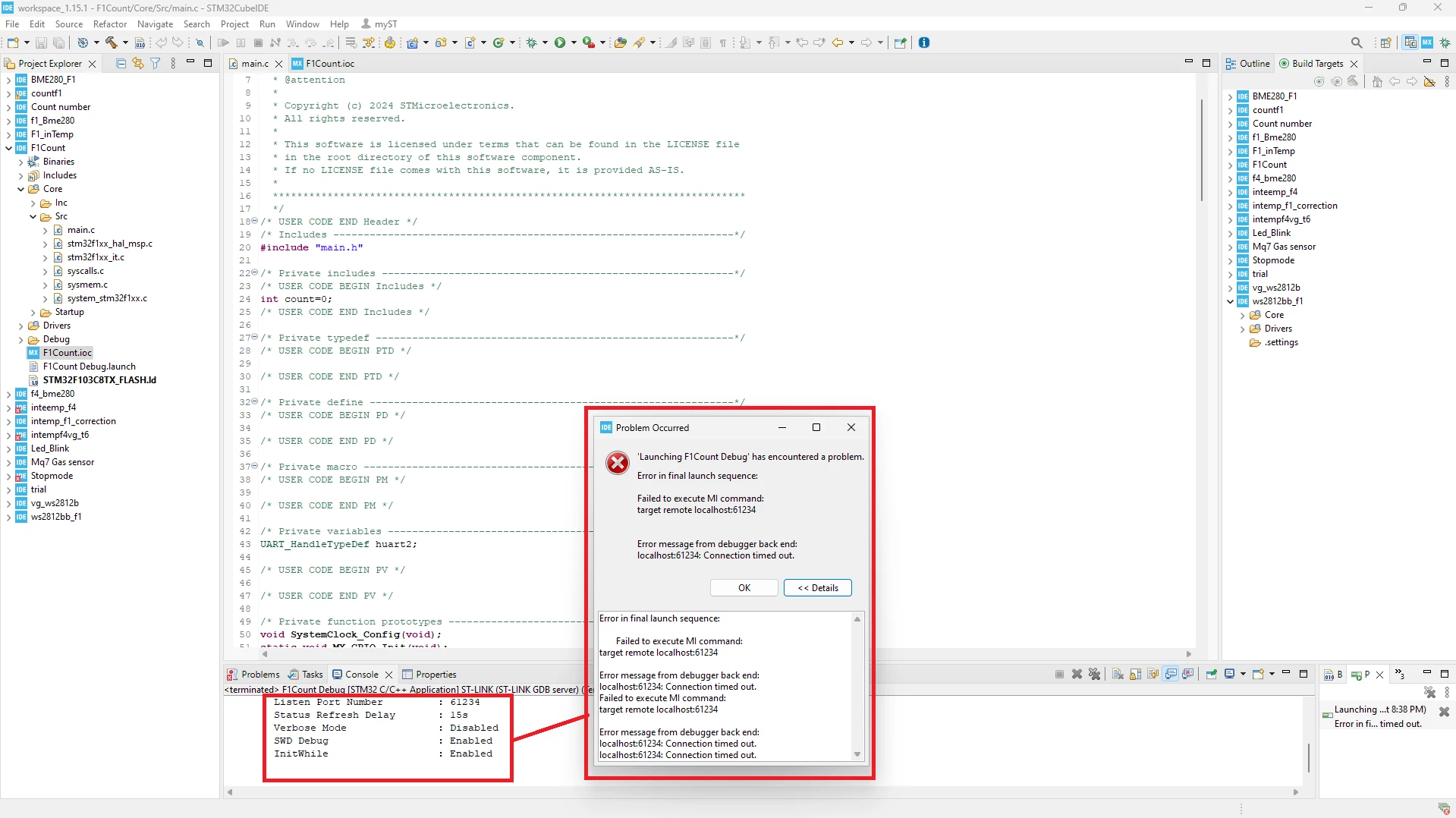

I am built one custom made PCB with by using STM32F103C8T6 IC for my project purpose.But ,When i am trying to upload my source code by using stm32Cubeide it shows below error.

Error in final launch sequence:



Failed to execute MI command:

target remote localhost:61234



Error message from debugger back end:

localhost:61234: Connection timed out.

Failed to execute MI command:

target remote localhost:61234



Error message from debugger back end:

localhost:61234: Connection timed out.

localhost:61234: Connection timed out.

I didn't know how to solve this error .I am tried to solve this error but did not solve the error till now  .so i need your help to solve this error can any one help me to solve my problem?

[TDK]

The usual suspects:

• Check VCC voltage. Note that programmers typically do not supply power.
• Check part orientation. Pin 1 is on the lower left when "STM32" reads from left to right.
• Can you connect in STM32CubeProgrammer? Does it display a voltage?
• Do you have an official ST programmer or a counterfeit one? STM32CubeIDE does not play well with knock-off programmers.

[Andrew Neil]

---

@TDK wrote:

• Do you have an official ST programmer or a counterfeit one? STM32CubeIDE does not play well with knock-off programmers.

---

@Vignesh_V  If you're not sure, see:

https://community.st.com/t5/stm32-mcus/how-to-recognize-a-genuine-st-link-v2-versus-a-cloned-one/ta-p/49471

See also:

https://community.st.com/t5/stm32-mcus/how-to-solve-debugger-connection-issues/ta-p/49693



[Rim LANDOLSI]

Hello @Vignesh_V ,



Could you please check these points:

• Ensure that the ST-LINK or other debugging interface is properly connected to the STM32F103C8T6 board
• Verify that the power supply to the board is stable and sufficient.
• Update ST-LINK Firmware
• In the debug configuration, Verify that the correct port localhost:61234 and you can change it to 61238

Thanks,

Rim.
